5-15 | CAB MOUNTING; CAB SIDE
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 141 | I8-98062 280-0 | PIN; SNAP,CAB LOCK ROD | 2 | 1707- | ALL | (B) L=32.6 | ||
| 112 | I1-79718 655-0 | SPRING; RETURN,SAFETY ROD | 1 | 1707- | ALL | |||
| 083 | I1-09744 106-0 | PIN; JOINT,CAB STAY | 1 | 1707- | ALL | OD=10 L=42 | ||
| 088 | I1-09985 183-0 | WASHER; PL,CAB STAY PIN | 1 | 1707- | ALL | ID=10.5 T=2.0 | ||
| 143 | I0-91110 510-0 | NUT; JAW JOINT,HOOK TO HOOK | 2 | 1707- | ALL | M10 | ||
| 103 | I1-09744 108-1 | PIN; JOINT,CAB STAY | 1 | 1707- | ALL | |||
| 149 | I8-97586 206-1 | HANDLE; TILT | 1 | 1707- | ALL | (B) | ||
| 136 | I0-28650 820-0 | BOLT; CAB LK | 8 | 1707- | ALL | M8X20 | ||
| 100 | I8-98039 426-1 | PIN; SNAP,CAB STAY TO CAB | 1 | 1707- | ALL | L=34 | ||
| 003 | I8-98090 287-1 | BOLT; LEVER | 8 | 1707- | ALL | M12X42 | ||
| 228 | I1-09744 086-2 | PIN; SAFETY LOCK SPRING, CAB STAY | 1 | 1707- | ALL | OD=8 L=27 | ||
| 170 | I8-97022 566-0 | NUT | 2 | 1707- | ALL | (B) ID=9.9 PUSH NUT | ||
| 324 | I8-98330 402-0 | BOLT; ADJUST | 1 | 1707- | ALL | M14X59 | ||
| 226 | I0-91110 508-0 | NUT; SAFETY LK | 1 | 1707- | ALL | M8 | ||
| 229 | I1-62500 517-1 | PIN ASM; SAFETY | 1 | 1707- | ALL | |||
| 150 | I0-28650 820-0 | BOLT; TILT HANDLE | 6 | 1707- | ALL | M8X20 | ||
| 138 | I0-28650 820-0 | BOLT; CAB LOCK CONT UNIT | 4 | 1707- | ALL | M8X20 | ||
| 231 | I1-09583 244-0 | SPRING; RETURN,LOCK LEVER, CAB STAY | 1 | 1707- | ALL | |||

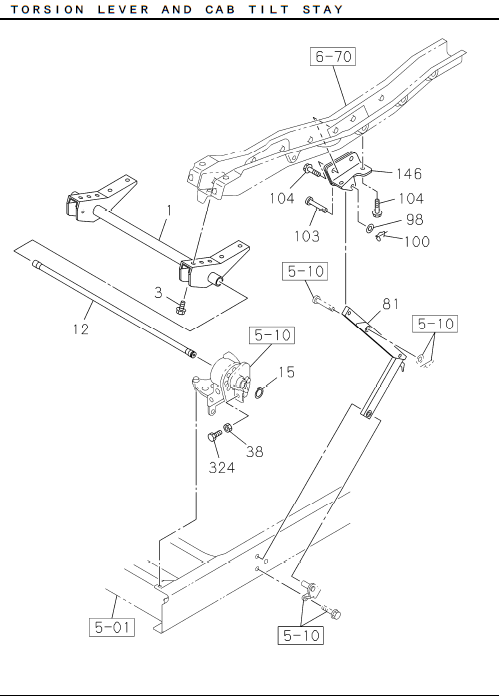

| 001 | I8-98309 396-0 | LEVER; TORSION BAR | 1 | 1707- | ALL | |||
| 148 | I8-97410 736-0 | JOINT; JAW,HOOK TO HOOK | 1 | 1707- | ALL | |||
| 012 | I8-98010 947-1 | BAR; TORSION,UPR | 1 | 1707- | ALL | |||
| 335 | I0-91610 508-0 | WASHER; CAB LOCK ROD | 1 | 1707- | ALL | (A) ID=8.4 OD=16 | ||
| 077 | I0-91800 616-0 | RING; SNAP | 1 | 1707- | ALL | ID=14.7 | ||
| 223 | I0-91610 516-0 | WASHER; PL,SAFETY LK | 1 | 1707- | ALL | (A) ID=17 OD=30 | ||
| 149 | I8-98352 860-0 | HANDLE; TILT | 1 | 1707- | ALL | (A) | ||
| 335 | I8-98060 839-0 | WASHER; CAB LOCK ROD | 2 | 1707- | ALL | (C) ID=13 OD=22 | ||
| 142 | I8-97587 990-0 | ROD; HOOK TO HOOK | 1 | 1707- | ALL | |||
| 141 | I8-98039 045-1 | PIN; SNAP,CAB LOCK ROD | 2 | 1707- | ALL | (A) L=25.3 | ||
| 245 | I1-62500 588-0 | BUSHING; CAB STAY | 4 | 1707- | ALL | (B) | ||
| 245 | I1-62500 587-0 | BUSHING; CAB STAY | 6 | 1707- | ALL | (A) | ||

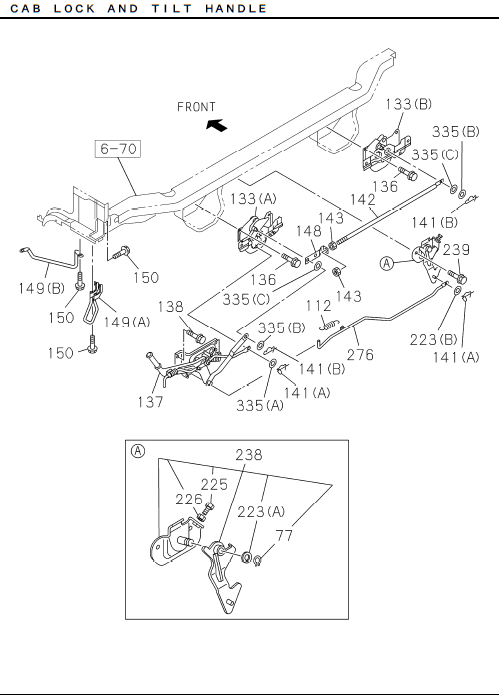

| 133 | I8-98061 489-2 | LOCK ASM; CAB | 1 | 1707- | ALL | (B) | ||
| 098 | I1-09985 183-0 | WASHER; CAB STAY | 1 | 1707- | ALL | ID=10.5 T=2.0 | ||

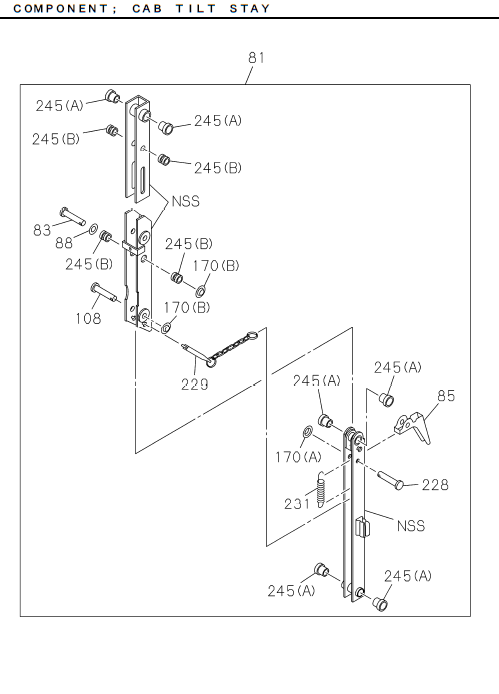

| 081 | I8-98278 111-0 | STAY ASM; CAB TILT | 1 | 1707- | ALL | |||
| 239 | I0-28650 820-0 | BOLT; SAFETY LK | 2 | 1707- | ALL | M8X20 | ||
| 170 | I8-97022 565-0 | NUT | 1 | 1707- | ALL | (A) ID=7.9 PUSH NUT | ||
| 146 | I8-98314 600-1 | BRACKET ASM; CAB STAY UPR | 1 | 1707- | ALL | |||
| 335 | I0-91610 612-0 | WASHER; CAB LOCK ROD | 2 | 1707- | ALL | (B) ID=12.5 OD=26 | ||
| 238 | I8-98048 899-1 | LOCK ASM; SAFETY,CAB TILT | 1 | 1707- | ALL | |||
| 085 | I1-62500 503-0 | LEVER; LOCK,CAB STAY | 1 | 1707- | ALL | |||
| 015 | I8-97129 615-0 | RING; SNAP,TORSION BAR | 1 | 1707- | ALL | T=1.90 BLUE | ||
| 223 | I0-91610 508-0 | WASHER; PL,SAFETY LK | 1 | 1707- | ALL | (B) ID=8.4 OD=16 | ||
| 038 | I7-05014 012-A | NUT; LK | 1 | 1707- | ALL | M14 | ||
| 104 | I0-28661 030-0 | BOLT; CAB STAY BRKT | 4 | 1707- | ALL | M10X30 | ||
| 108 | I1-09744 106-0 | PIN; ADJ,CAB STAY | 1 | 1707- | ALL | OD=10 L=42 | ||
| 276 | I8-98048 831-1 | ROD ASM; CAB LOCK,HOOK TO HOOK | 1 | 1707- | ALL | |||
| 137 | I8-98364 884-1 | CONTROL UNIT; CAB LOCK | 1 | 1707- | ALL | |||
| 225 | I0-28050 830-0 | BOLT; SAFETY LK | 1 | 1707- | ALL | M8X30 | ||
| 133 | I8-98101 514-2 | LOCK ASM; CAB | 1 | 1707- | ALL | (A) |
