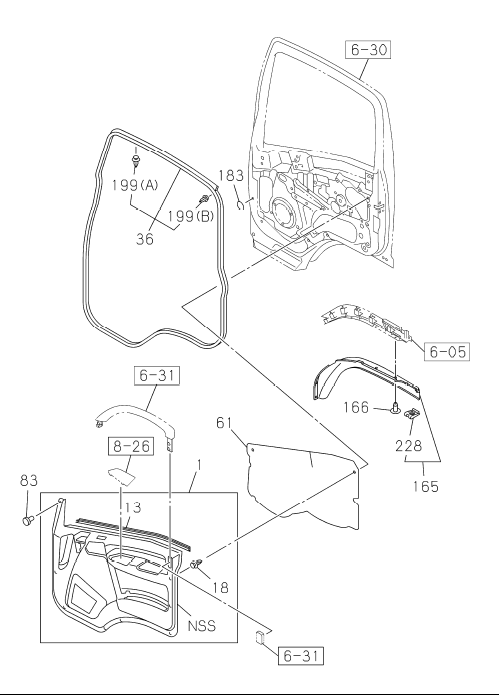

6-35 | FRONT DOOR TRIM
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 165 | I8-98315 412-0 | LINER; DOOR LWR | 1 | 1707- | ALL | |||
| 228 | I8-98056 302-0 | NUT; SPIRE | 2 | 1707- | ALL | |||
| 061 | I8-97948 264-0 | SEAL; WATER,DOOR PAD | 1 | 1707- | ALL | |||
| 083 | I8-97405 308-0 | CLIP; DOOR TRIM | 2 | 1707- | ALL | GRAY | ||
| 183 | I1-76798 029-0 | SEAL; LOCATION HOLE | 2 | 1707- | ALL | OD=25 BLACK | ||
| 001 | I8-97696 053-A | PAD; TRIM,FRT DOOR | 1 | 1707- | ALL | |||
| 165 | I8-98315 411-0 | LINER; DOOR LWR | 1 | 1707- | ALL | |||
| 001 | I8-97696 054-A | PAD; TRIM,FRT DOOR | 1 | 1707- | ALL | |||
| 166 | I1-09987 248-1 | PLUG; HOLE | 10 | 1707- | ALL | D8X13.5 | ||
| 036 | I8-98029 199-A | SEAL; DOOR,MAIN,CAB SIDE | 1 | 1707- | ALL | |||
| 013 | I8-97923 892-0 | SEAL; DOOR TRIM | 1 | 1707- | ALL | INNER | ||
| 036 | I8-98077 429-A | SEAL; DOOR,MAIN,CAB SIDE | 1 | 1707- | ALL | |||
| 013 | I8-97923 891-0 | SEAL; DOOR TRIM | 1 | 1707- | ALL | INNER | ||
| 018 | I8-98004 025-0 | CLIP; DOOR PAD | 14 | 1707- | ALL | |||
| 199 | I8-98062 271-0 | CLIP; SEAL | 2 | 1707- | ALL | (B) RED | ||
| 061 | I8-97948 265-0 | SEAL; WATER,DOOR PAD | 1 | 1707- | ALL | |||
| 199 | I8-98062 270-0 | CLIP; SEAL | 80 | 1707- | ALL | (A) NATURAL |
