6-47 | MUD GUARD AND INSULATOR
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

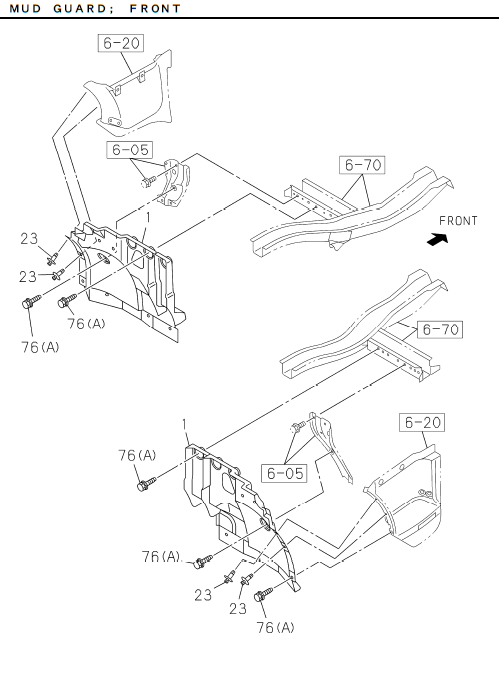

| 001 | I8-97484 006-0 | GUARD; MUD,FRT | 1 | 1707-1711 | ALL | |||
| 099 | I0-28650 616-0 | BOLT; STAY TO MUD GUARD | 4 | 1707- | ALL | M6X16 | ||
| 135 | I8-98272 074-0 | BRACKET; SIDE PANEL | 1 | 1707- | ALL | |||
| 218 | I1-09987 248-1 | FASTENER; RUBBER | 10 | 1707- | ALL | D8X13.5 | ||
| 096 | I8-98309 449-1 | STAY; MUD GUARD | 1 | 1707- | ALL | (C) | ||
| 096 | I8-98309 447-1 | STAY; MUD GUARD | 1 | 1707- | ALL | (C) | ||
| 135 | I8-98272 075-0 | BRACKET; SIDE PANEL | 1 | 1707- | ALL | |||
| 358 | I8-98357 771-A | BRACKET; SPLASH GUARD | 1 | 1707- | FVR | (A) | ||
| 139 | I8-98317 486-0 | PANEL; SIDE | 1 | 1707- | ALL | (B) | ||
| 002 | I8-98323 424-0 | COVER; MUD,TIRE RR | 2 | 1707- | ALL | |||
| 074 | I8-97329 625-0 | NUT | 4 | 1707- | ALL | M8 W/DISHED WASHER | ||
| 358 | I8-98357 770-A | BRACKET; SPLASH GUARD | 1 | 1707- | FVR | (A) | ||

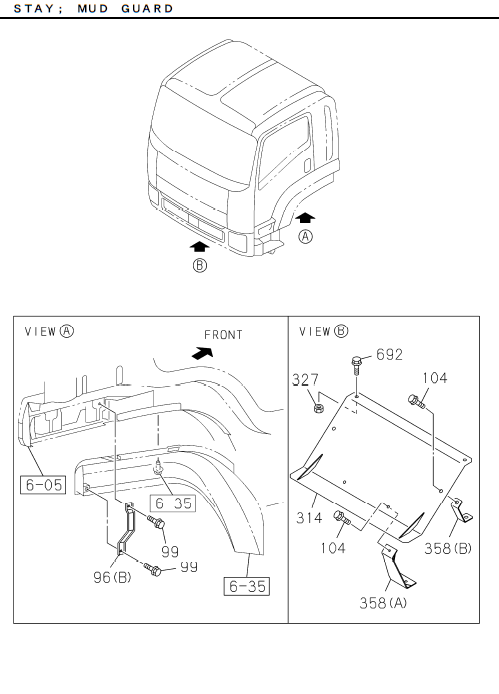

| 096 | I8-98309 446-0 | STAY; MUD GUARD | 1 | 1707- | ALL | (A) | ||
| 358 | I8-98357 772-A | BRACKET; SPLASH GUARD | 2 | 1707- | FVR | (B) | ||
| 181 | I8-98059 720-0 | BOLT; COVER,SIDE | 16 | 1707- | ALL | M8X24.5 W/LK&PL WASHER | ||
| 139 | I8-98317 484-0 | PANEL; SIDE | 1 | 1707- | ALL | (A) | ||
| 001 | I8-97484 005-0 | GUARD; MUD,FRT | 1 | 1801- | ALL | |||
| 692 | I0-29261 650-0 | BOLT; PROTECTOR | 4 | 1707- | FVR | M16X50 | ||
| 023 | I1-09987 248-1 | FASTENER; MUD COVER | 4 | 1707- | ALL | D8X13.5 | ||
| 139 | I8-98317 485-0 | PANEL; SIDE | 1 | 1707- | ALL | (B) | ||
| 150 | I8-97329 625-0 | NUT; SIDE PANEL | 4 | 1707- | ALL | M8 W/DISHED WASHER | ||
| 140 | I1-09030 095-0 | BOLT; SIDE PANEL | 12 | 1707- | ALL | M8X30 W/LK&PL WASHER | ||

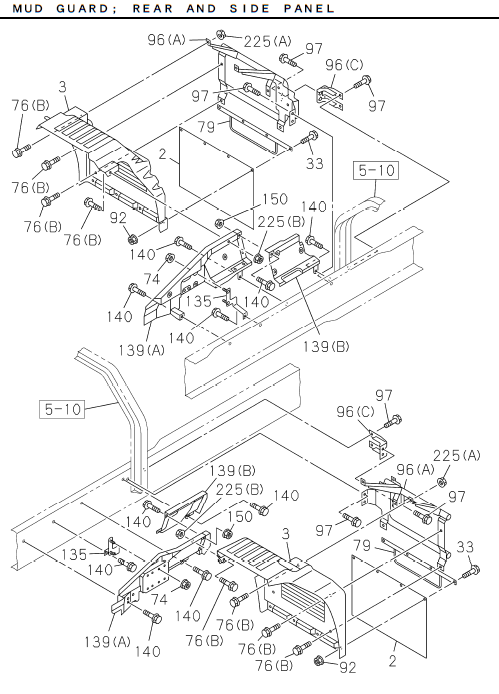

| 003 | I8-98357 670-0 | GUARD; MUD,RR | 1 | 1707- | ALL | |||
| 104 | I0-28661 025-0 | BOLT; BRKT | 4 | 1707- | FVR | M10X25 | ||
| 139 | I8-98317 483-0 | PANEL; SIDE | 1 | 1707- | ALL | (A) | ||
| 033 | I1-09980 495-0 | BOLT; MUD COVER | 8 | 1707- | ALL | M6X20 W/LK&PL WASHER | ||
| 001 | I8-97484 006-0 | GUARD; MUD,FRT | 1 | 1712- | ALL | |||
| 314 | I8-98357 773-A | PROTECTOR; RADIATOR | 1 | 1707- | FVR | |||
| 001 | I8-97484 005-0 | GUARD; MUD,FRT | 1 | 1707-1712 | ALL | |||

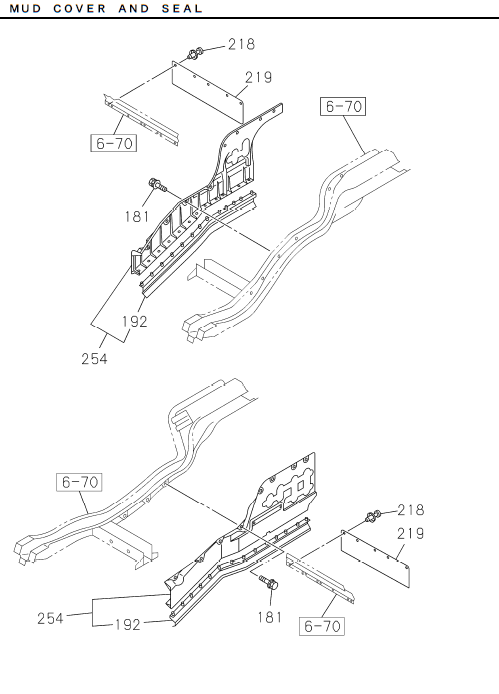

| 254 | I8-98127 094-0 | COVER; MUD,VALANCE | 1 | 1707- | ALL | |||
| 092 | I0-91180 106-0 | NUT; MUD COVER | 8 | 1707- | ALL | M6 | ||
| 079 | I8-98272 072-A | RETAINER; MUD COVER | 2 | 1707- | ALL | |||
| 254 | I8-98039 927-3 | COVER; MUD,VALANCE | 1 | 1707- | ALL | |||
| 327 | I0-91180 216-0 | NUT; PROTECTOR | 2 | 1707- | FVR | M16 | ||
| 219 | I8-98041 149-1 | FLAP; MUD GUARD | 2 | 1707- | ALL | |||
| 097 | I0-28051 235-0 | BOLT; STAY TO FRAME | 12 | 1707- | ALL | M12X35 | ||
| 192 | I8-98069 360-0 | SEAL; MUD COVER | 1 | 1707- | ALL | |||
| 076 | I8-94331 747-1 | BOLT; MUD GUARD | 10 | 1707- | ALL | (A) M8X25 W/LK&PL WASHER | ||
| 076 | I1-09030 095-0 | BOLT; MUD GUARD | 14 | 1707- | ALL | (B) M8X30 W/LK&PL WASHER | ||
| 225 | I8-97329 625-0 | NUT; MUD GUARD | 2 | 1707- | ALL | (B) M8 W/DISHED WASHER | ||
| 225 | I0-91180 108-0 | NUT; MUD GUARD | 8 | 1707- | ALL | (A) M8 | ||
| 096 | I8-98315 407-0 | STAY; MUD GUARD | 2 | 1707- | ALL | (B) | ||
| 096 | I8-98309 448-0 | STAY; MUD GUARD | 1 | 1707- | ALL | (A) | ||
| 003 | I8-98357 669-0 | GUARD; MUD,RR | 1 | 1707- | ALL | |||
| 192 | I8-98069 361-0 | SEAL; MUD COVER | 1 | 1707- | ALL |
