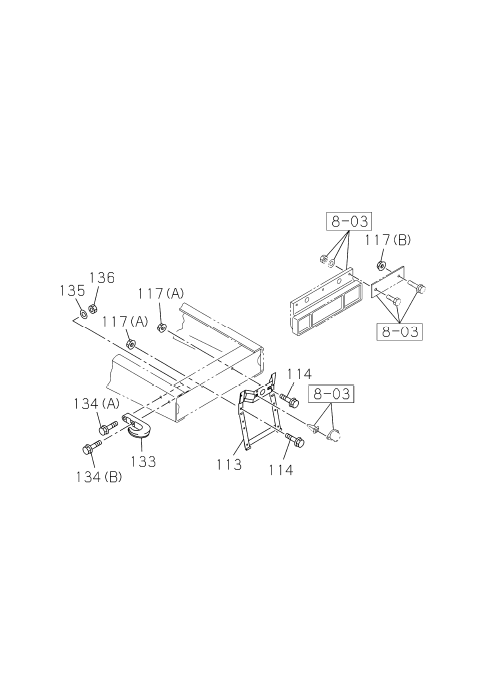

6-90 | REAR BUMPER
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 136 | I0-91110 516-0 | NUT; HOOK | 2 | 1707- | ALL | M16 | ||
| 113 | I8-97696 386-A | BRACKET; LICENSE PLATE | 1 | 1707- | ALL | |||
| 133 | I1-57181 027-A | HOOK | 1 | 1707- | L | ALL | ||
| 135 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 1707- | ALL | ID=16.2 | ||
| 134 | I0-10961 670-0 | BOLT; HOOK | 1 | 1811- | GVR | (A) M16X70 | ||
| 134 | I0-20851 650-0 | BOLT; HOOK | 1 | 1707-1810 | ALL | (A) M16X50 | ||
| 117 | I0-91180 108-0 | NUT; BRKT | 2 | 1707- | ALL | (B) M8 | ||
| 117 | I0-91180 108-0 | NUT; BRKT | 2 | 1707- | ALL | (B) M8 | ||
| 136 | I0-91110 516-0 | NUT; HOOK | 2 | 1707- | ALL | M16 | ||
| 113 | I8-97696 386-A | BRACKET; LICENSE PLATE | 1 | 1707- | ALL | |||
| 134 | I0-10961 670-0 | BOLT; HOOK | 1 | 1811- | GVR | (A) M16X70 | ||
| 133 | I1-57181 027-A | HOOK | 1 | 1707- | L | ALL | ||
| 134 | I0-20851 660-0 | BOLT; HOOK | 1 | 1707- | ALL | (B) M16X60 | ||
| 134 | I0-20851 650-0 | BOLT; HOOK | 1 | 1707-1810 | ALL | (A) M16X50 | ||
| 135 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 1707- | ALL | ID=16.2 | ||
| 114 | I0-28650 820-0 | BOLT; BRKT,LICENSE PLATE | 2 | 1707- | ALL | M8X20 | ||
| 114 | I0-28650 820-0 | BOLT; BRKT,LICENSE PLATE | 2 | 1707- | ALL | M8X20 | ||
| 134 | I0-20851 660-0 | BOLT; HOOK | 1 | 1707- | ALL | (B) M16X60 |
