8-15 | FIXING PARTS; WIRING HARNESS
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

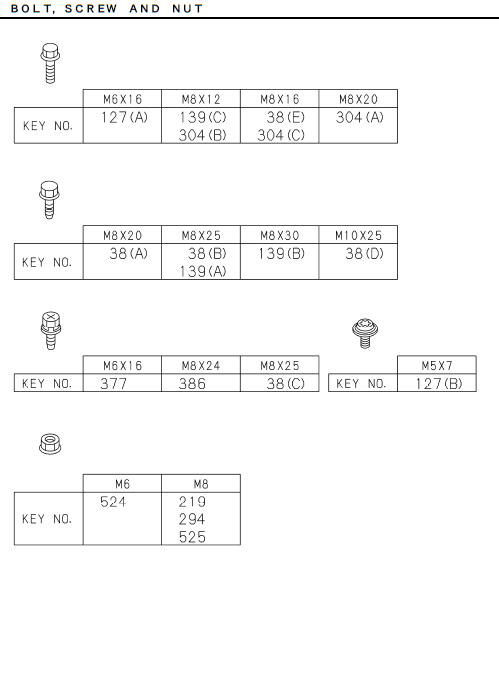

| 386 | I8-98141 256-1 | BOLT; GRAND HARNESS | 2 | 1707- | ALL | M8X24 W/PL WASHER | ||
| 304 | I0-28050 816-0 | BOLT; ENG HARNESS CLIP | 5 | 1707- | ALL | (C) M8X16 | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 3 | 1707- | ALL | M8 | ||

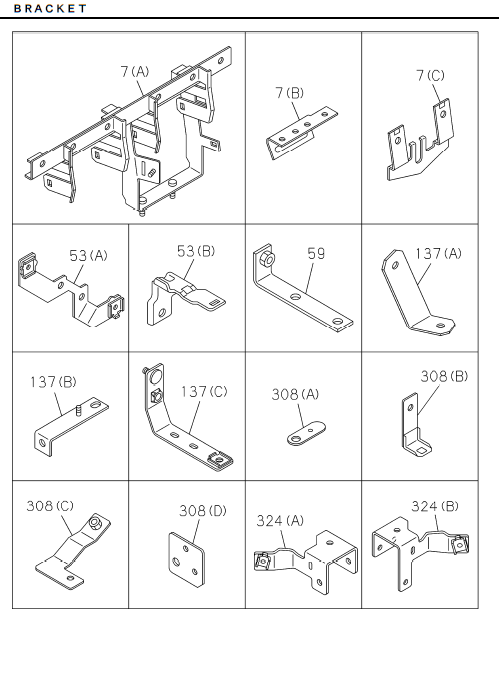

| 137 | I8-98310 012-0 | BRACKET; HARNESS CLAMP | 1 | 1811- | GVR | (C) | ||

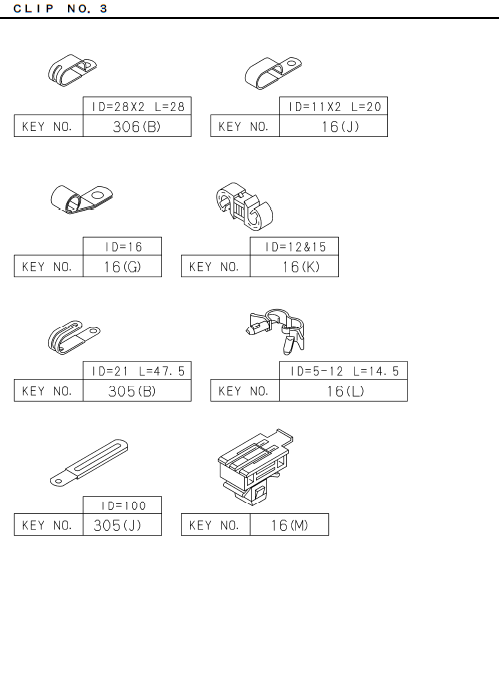

| 305 | I8-94178 108-0 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (B) ID=21 L=47.5 | ||
| 007 | I8-98315 521-1 | BRACKET; CONNECTOR | 1 | 1707- | ALL | (A) | ||
| 016 | I0-95235 576-0 | CLIP; HARNESS | 2 | 1707- | FVR | (D) ID=16 L=40; FOR 6SPEED | ||
| 007 | I8-98315 523-2 | BRACKET; CONNECTOR | 1 | 1707- | ALL | (C) | ||
| 038 | I0-28650 820-0 | BOLT; CLIP,HARNESS | 1 | 1707- | ALL | (A) M8X20 | ||
| 305 | I8-94443 021-1 | CLIP; ENG HARNESS | 2 | 1707- | ALL | (J) L=100 | ||
| 016 | I8-94377 313-1 | CLIP; HARNESS | 1 | 1811- | GVR | (M) | ||
| 016 | I0-95325 035-0 | CLIP; HARNESS | 2 | 1811- | GVR | (J) ID=11X2 L=20 | ||

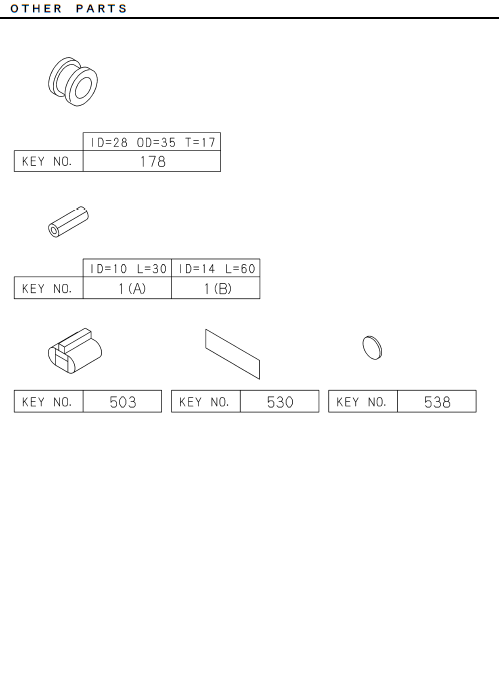

| 001 | I9-09956 682-0 | SLEEVE; RUBBER | 4 | 1707- | ALL | (A) ID=10 OD=14 L=30 | ||
| 503 | I1-82690 668-0 | CONNECTOR | 1 | 1707- | ALL | |||
| 038 | I0-28651 025-0 | BOLT; CLIP,HARNESS | 1 | 1707- | ALL | (D) M10X25; FOR 9SPEED | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 1707- | ALL | M6X16 W/LK&PL WASHER | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 1707- | ALL | OD=9 H=6 | ||

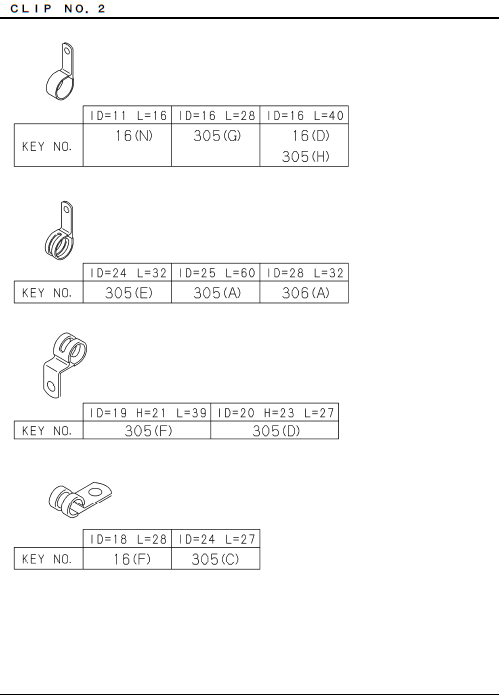

| 305 | I1-09700 861-0 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (D) ID=20 H=23 L=27 | ||
| 308 | I8-98032 178-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1707- | ALL | (C) | ||
| 306 | I1-09701 107-1 | CLIP; HARNESS,ELEC GOV | 1 | 1707- | ALL | (A) ID=28 L=32 | ||
| 137 | I8-97614 728-1 | BRACKET; HARNESS CLAMP | 1 | 1707- | ALL | (A) | ||

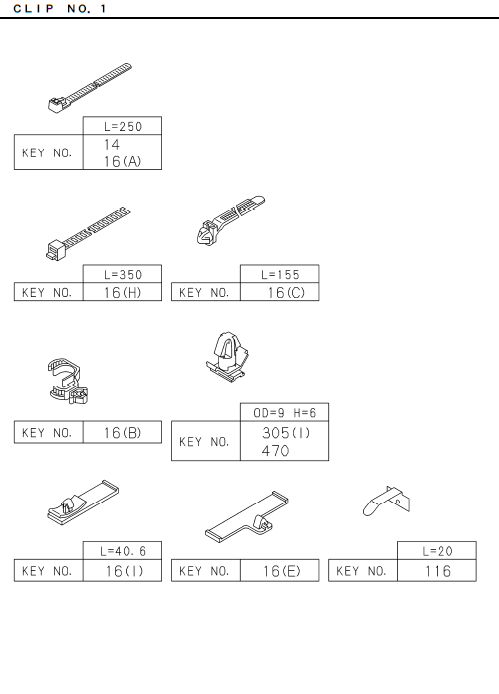

| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 1707- | ALL | L=20 SET=10 PIECE | ||
| 059 | I1-82698 140-A | BRACKET; FRAME HARNESS | 1 | 1707- | ALL | |||
| 294 | I0-91180 108-0 | NUT | 2 | 1707- | ALL | M8 | ||
| 016 | I1-09701 067-0 | CLIP; HARNESS | 1 | 1707- | ALL | (F) ID=18 L=28 | ||
| 053 | I8-98315 231-0 | BRACKET; HARNESS | 1 | 1811- | GVR | (A) | ||
| 305 | I1-09709 178-0 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (I) OD=9 H=6 | ||
| 305 | I1-09700 766-1 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (E) ID=24 L=32 | ||
| 016 | I8-97229 357-0 | CLIP; HARNESS | 2 | 1807- | ALL | (I) L=40.6 | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 1707- | ALL | (B) | ||
| 305 | I1-09700 972-1 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (F) ID=19 H=21 L=39 | ||
| 038 | I8-97087 203-0 | BOLT; CLIP,HARNESS | 2 | 1707- | ALL | (C) M8X25 W/LK&PL WASHER | ||
| 308 | I8-98075 824-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1707- | ALL | (B) | ||
| 016 | I1-09707 183-0 | CLIP; HARNESS | 2 | 1707-1804 | ALL | (H) L=350 | ||
| 016 | I1-09987 221-0 | CLIP; HARNESS | 2 | 1811- | GVR | (L) ID=5-12 L=14.5 | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 6 | 1707- | ALL | 180X40 | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 7 | 1707- | ALL | M6 | ||
| 324 | I8-98310 010-0 | BRACKET; CLIP | 1 | 1811- | GVR | (A) | ||
| 304 | I0-28050 812-A | BOLT; ENG HARNESS CLIP | 6 | 1707- | ALL | (B) M8X12 | ||
| 305 | I1-09701 041-1 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (A) ID=25 L=60 | ||
| 219 | I0-91180 108-0 | NUT | 1 | 1707- | ALL | M8 | ||
| 001 | I1-09337 030-0 | SLEEVE; RUBBER | 1 | 1707- | ALL | (B) ID=14 OD=18 L=60 | ||
| 305 | I0-95235 556-0 | CLIP; ENG HARNESS | 2 | 1707- | ALL | (G) ID=16 L=28 | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 1707- | ALL | (B) M5X7 HEXALOBULAR SOCKET | ||
| 038 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 3 | 1707- | ALL | (B) M8X25 | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1707- | ALL | OD=25 BLACK | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 2 | 1707- | FVR | (E) M8X16; FOR 6SPEED | ||
| 016 | I1-09709 281-1 | CLIP; HARNESS | 1 | 1811- | GVR | (K) ID=12 & 15 | ||
| 324 | I8-98377 689-0 | BRACKET; CLIP | 1 | 1811- | GVR | (B) | ||
| 139 | I0-28650 830-0 | BOLT; BRKT | 1 | 1811- | ALL | (B) M8X30 | ||
| 308 | I8-97601 310-0 | BRACKET; CLIP,ENG HARNESS | 2 | 1707- | ALL | (A) | ||
| 308 | I8-98021 692-1 | BRACKET; CLIP,ENG HARNESS | 1 | 1707- | ALL | (D) | ||
| 139 | I0-28650 825-0 | BOLT; BRKT | 2 | 1707- | ALL | (A) M8X25 | ||
| 007 | I8-98315 522-0 | BRACKET; CONNECTOR | 1 | 1707- | ALL | (B) | ||
| 305 | I0-95235 576-0 | CLIP; ENG HARNESS | 1 | 1707- | ALL | (H) ID=16 L=40 | ||
| 305 | I1-09700 809-0 | CLIP; ENG HARNESS | 3 | 1707- | ALL | (C) ID=24 L=27 | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 1707-1712 | ALL | (C) M8X12 | ||
| 016 | I1-09701 117-0 | CLIP; HARNESS | 1 | 1707- | ALL | (G) ID=16; FOR 9SPEED | ||
| 016 | I5-09707 030-1 | CLIP; HARNESS | 1 | 1707- | ALL | (A) L=250 | ||
| 127 | I0-28050 616-0 | SCREW; FACIA HARNESS CLIP | 1 | 1707-1712 | ALL | (A) M6X16 | ||
| 178 | I9-09956 256-2 | GROMMET; HARNESS | 2 | 1811- | ALL | ID=28 OD=35 T=17 | ||
| 014 | I8-98216 430-0 | CLIP; BAND,HARNESS | 13 | 1707- | ALL | L=250 | ||
| 306 | I1-09701 302-0 | CLIP; HARNESS,ELEC GOV | 2 | 1707- | ALL | (B) ID=28X2 L=28 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1707- | ALL | (B) ID=10 & 16 | ||
| 304 | I0-28050 820-0 | BOLT; ENG HARNESS CLIP | 3 | 1707- | ALL | (A) M8X20 | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 18 | 1807- | ALL | (C) L=155 | ||
| 053 | I8-98315 232-0 | BRACKET; HARNESS | 1 | 1811- | GVR | (A) | ||
| 137 | I8-97624 013-0 | BRACKET; HARNESS CLAMP | 1 | 1707- | ALL | (B) | ||
| 016 | I0-95235 025-0 | CLIP; HARNESS | 2 | 1811- | GVR | (N) ID=11 L=16 | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 1807- | ALL | (E) |
