8-28 | CHASSIS ELECTRICAL
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

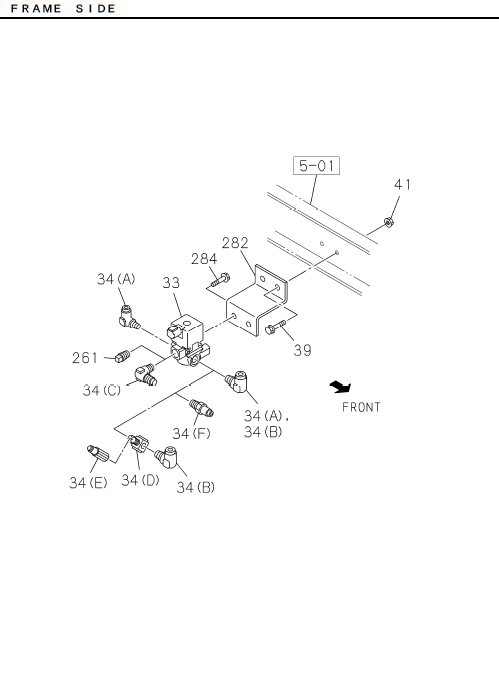

| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1707- | FVR | (B) DIN6 & R1/4 ELBOW | ||

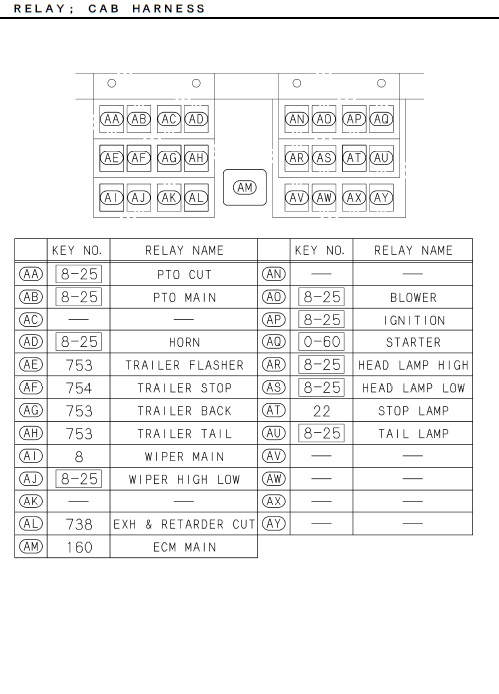

| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 1707- | ALL | 24V 10A PANASONIC | ||
| 440 | I1-81510 701-0 | MODULE; INFORMATION,ABS | 1 | 1811- | GVR | |||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 1707- | ALL | 24V 10A PANASONIC | ||
| 754 | I8-97173 035-1 | RELAY; TRAILER STOP | 1 | 1811- | GVR | 24V 10A PANASONIC | ||
| 468 | I0-91180 106-0 | NUT; MODULE | 2 | 1811- | GVR | M6 | ||
| 299 | I8-98105 162-1 | SOCKET; PARKING | 1 | 1811- | GVR | (B) | ||

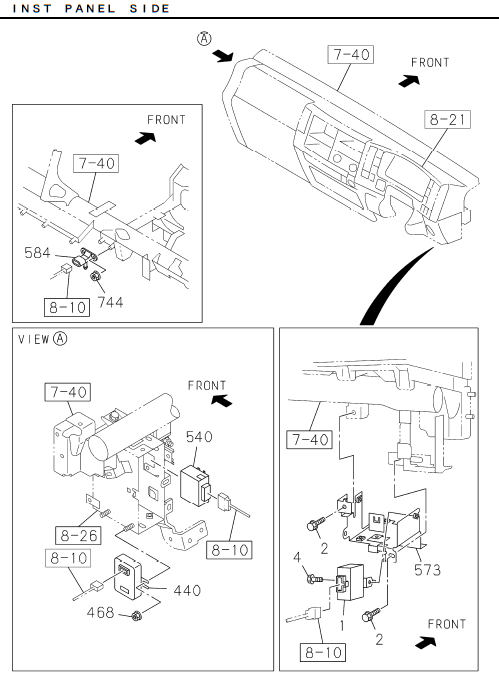

| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 1707- | ALL | |||
| 738 | I6-97173 035-0 | RELAY; EXH & RETARDER CUT | 1 | 1811- | GVR | (IADG) 24V 10A PANASONIC | ||
| 034 | I1-09660 956-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1707- | FVR | (A) DIN8 & R1/4 ELBOW | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 1707- | ALL | (IADG) 24V 10A PANASONIC | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1707- | ALL | |||

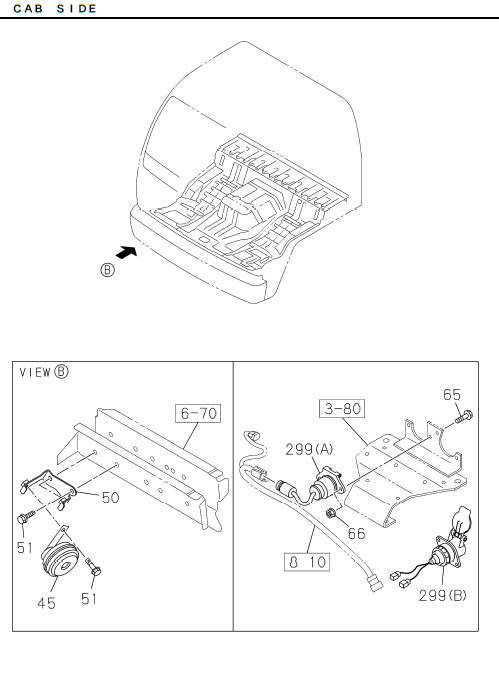

| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 1707- | ALL | |||
| 034 | I1-09661 069-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1801- | FVR | (F) DIN6 & R1/4 STRAIGHT ; AIR SUSP DRIVER SEAT; FOR 6SPEED | ||
| 284 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 1707- | FVR | M8X20 | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 1707- | ALL | M6X16 | ||
| 034 | I1-09656 586-1 | CONNECTOR; MAG VLV,INL PORT | 1 | 1801- | FVR | (D) M12 & PT1/4 3WAY ; AIR SUSP DRIVER SEAT; FOR 9SPEED | ||
| 754 | I6-97173 035-0 | RELAY; TRAILER STOP | 1 | 1811- | GVR | (IADG) 24V 10A PANASONIC | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 1707- | ALL | M6X16 | ||
| 753 | I8-97173 035-1 | RELAY; TRAILER FLASHER | 3 | 1811- | GVR | 24V 10A PANASONIC | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 1707- | ALL | M6 | ||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 1707-1710 | FVR | M8X30; FOR 9SPEED | ||
| 753 | I6-97173 035-0 | RELAY; TRAILER FLASHER | 3 | 1811- | GVR | (IADG) 24V 10A PANASONIC | ||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 1707- | FVR | |||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 1707- | ALL | (IADG) 24V 10A PANASONIC | ||
| 066 | I0-91180 108-0 | NUT; SOCKET FIX | 2 | 1811- | GVR | M8 | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 1707- | FVR | PT1/4; FOR 6SPEED | ||
| 282 | I8-98311 998-0 | BRACKET; MAG VLV | 1 | 1707- | FVR | |||
| 034 | I1-09660 873-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1801- | FVR | (E) DIN8 & M12 STRAIGHT ; AIR SUSP DRIVER SEAT; FOR 9SPEED | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1707- | ALL | |||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 1707- | FVR | |||
| 041 | I0-91180 108-0 | NUT; BRKT,MAG VLV | 2 | 1707-1710 | FVR | M8; FOR 9SPEED | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 1707- | ALL | M8X20 W/LK&PL WASHER | ||
| 738 | I8-97173 035-1 | RELAY; EXH & RETARDER CUT | 1 | 1811- | GVR | 24V 10A PANASONIC | ||
| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 1811- | GVR | |||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 1811- | GVR | (A) 7P | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 1707- | ALL | |||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1707- | FVR | (C) M12 & PT1/4 ELBOW; FOR 9SPEED | ||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 1811- | GVR | M8X25 | ||
| 160 | I8-98259 779-0 | RELAY; ECM | 1 | 1707- | ALL | 24V 30A MITSUBA |
