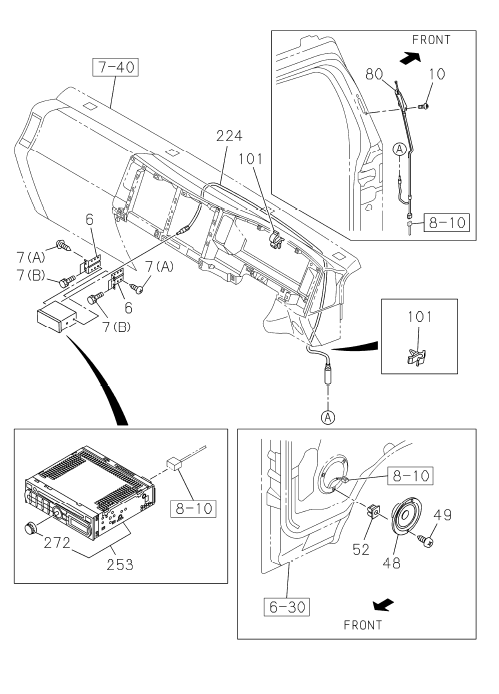

8-90 | RADIO AND TV
GIGA
NEW GIGA FVR GVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 007 | I0-72180 520-0 | SCREW; RADIO | 2 | 1707- | ALL | (A) M5X20 TAPPING HEXALOBULAR | ||
| 049 | I8-98061 856-0 | SCREW; SPEAKER | 6 | 1707- | ALL | M5X14 TAPPING W/TORQUES | ||
| 253 | I7-39020 217-A | DECK ASM; RADIO & CD | 1 | 1707- | ALL | |||
| 007 | I8-98063 767-0 | SCREW; RADIO | 4 | 1707- | ALL | (B) M5X7 HEXALOBULAR SOCKET | ||
| 080 | I8-97695 993-A | ANTENNA | 1 | 1707- | ALL | |||
| 048 | I8-97696 027-A | SPEAKER; AUDIO | 2 | 1707- | ALL | |||
| 101 | I1-73907 618-0 | CLIP; FEEDER TO BRKT | 3 | 1707- | ALL | ID=4.8 | ||
| 010 | I1-09981 536-1 | SCREW; ANTENNA CABLE | 2 | 1707- | ALL | M5X11 | ||
| 272 | I8-98048 329-0 | KNOB; AUDIO CONTROL | 1 | 1707- | ALL | CLARION | ||
| 253 | I8-98032 643-A | DECK ASM; RADIO & CD | 1 | 1707- | ALL | RADIO W/ MONITOR DISPLAY | ||
| 006 | I8-97585 617-0 | BRACKET; RADIO TO PANEL | 2 | 1707- | ALL | |||
| 052 | I8-94279 078-A | GROMMET; SCREW,SPEAKER | 6 | 1707- | ALL | D=8.6X7.7 L=7.5 | ||
| 224 | I8-97696 312-A | CABLE; EXT,FEEDER | 1 | 1707- | ALL |
