9-01 | TOOLS
GIGA
NEW GIGA FVR GVR

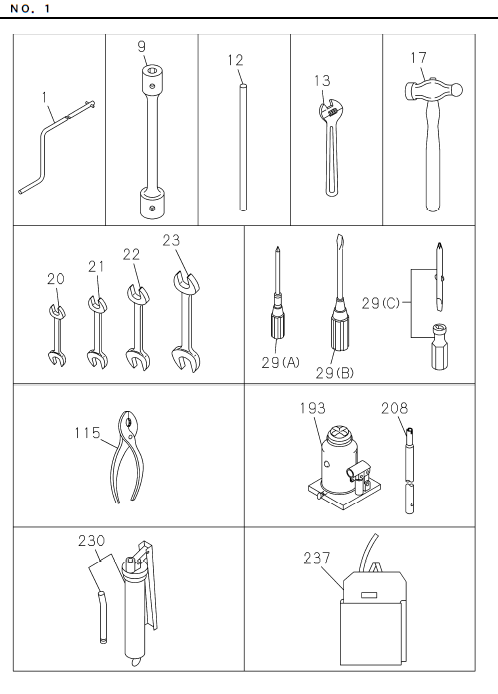

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 020 | I7-99400 000-A | WRENCH; 10X12 | 1 | 1707- | ALL | 10X12 | ||

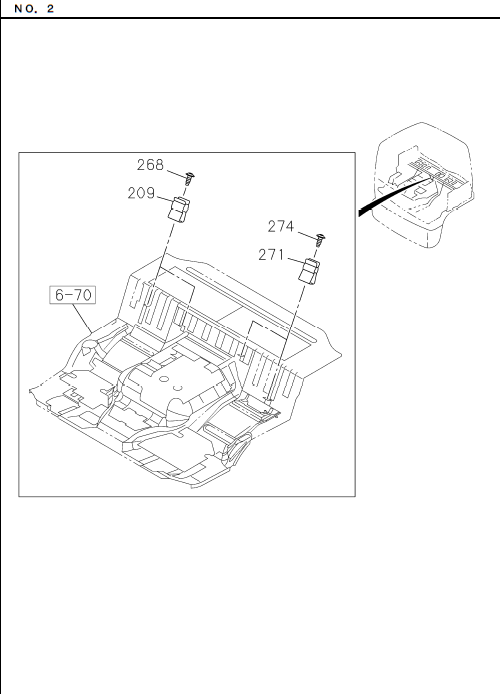

| 209 | I8-98053 799-0 | CLIP; JACK HANDLE | 2 | 1707- | ALL | |||
| 271 | I8-98053 800-0 | CLIP; TIRE HANGER | 2 | 1707- | ALL | |||
| 023 | I7-99300 324-A | WRENCH; 24X27 | 1 | 1707- | ALL | 24X27 | ||
| 268 | I0-38050 612-0 | SCREW; CLIP | 2 | 1707- | ALL | M6X12 | ||
| 022 | I7-99400 002-A | WRENCH; 19X22 | 1 | 1707- | ALL | 19X22 | ||
| 208 | I1-85515 009-A | HANDLE; JACK | 1 | 1707- | ALL | L=600 | ||
| 022 | I7-99400 002-A | WRENCH; 19X22 | 1 | 1707- | ALL | 19X22 | ||
| 009 | I8-98316 700-0 | WRENCH; WHEEL PIN | 1 | 1707- | ALL | B=33X30 L=450 | ||
| 009 | I8-98316 700-0 | WRENCH; WHEEL PIN | 1 | 1707- | ALL | B=33X30 L=450 | ||
| 029 | I7-99302 306-A | DRIVER; SCREW | 1 | 1707- | ALL | (C) <+>,<-> L=160 | ||
| 029 | I7-99302 306-A | DRIVER; SCREW | 1 | 1707- | ALL | (A) <+> L=190 | ||
| 021 | I7-99400 001-A | WRENCH; 14X17 | 1 | 1707- | ALL | 14X17 | ||
| 012 | I7-99311 312-A | HANDLE; WRENCH,WHEEL PIN | 1 | 1707- | ALL | OD=25 L=480 | ||
| 023 | I7-99300 324-A | WRENCH; 24X27 | 1 | 1707- | ALL | 24X27 | ||
| 001 | I7-99310 311-A | HANDLE; SPARE TIRE CARRIER | 1 | 1707- | FVR | |||
| 193 | I8-85510 001-A | JACK ASM | 1 | 1707- | ALL | 10TON | ||
| 208 | I1-85515 009-A | HANDLE; JACK | 1 | 1707- | ALL | L=600 | ||
| 230 | I7-99305 315-A | PUMP; GREASE | 1 | 1707- | ALL | |||
| 271 | I8-98053 800-0 | CLIP; TIRE HANGER | 2 | 1707- | ALL | |||
| 274 | I0-38050 612-0 | SCREW; CLIP | 2 | 1707- | ALL | M6X12 | ||
| 013 | I8-98270 303-0 | WRENCH; MONKEY | 1 | 1707- | ALL | L=255 | ||
| 021 | I7-99400 001-A | WRENCH; 14X17 | 1 | 1707- | ALL | 14X17 | ||
| 012 | I7-99311 312-A | HANDLE; WRENCH,WHEEL PIN | 1 | 1707- | ALL | OD=25 L=480 | ||
| 017 | I7-99303 314-A | HAMMER | 1 | 1707- | ALL | |||
| 029 | I7-99302 305-A | DRIVER; SCREW | 1 | 1707- | ALL | (B) <-> L=275 | ||
| 268 | I0-38050 612-0 | SCREW; CLIP | 2 | 1707- | ALL | M6X12 | ||
| 001 | I7-99310 311-A | HANDLE; SPARE TIRE CARRIER | 1 | 1707- | FVR | |||
| 115 | I8-97957 882-A | PLIER | 1 | 1707- | ALL | |||
| 013 | I8-98270 303-0 | WRENCH; MONKEY | 1 | 1707- | ALL | L=255 | ||
| 237 | I7-99300 310-A | BAG; TOOL | 1 | 1707- | ALL | |||
| 017 | I7-99303 314-A | HAMMER | 1 | 1707- | ALL | |||
| 237 | I7-99300 310-A | BAG; TOOL | 1 | 1707- | ALL | |||
| 209 | I8-98053 799-0 | CLIP; JACK HANDLE | 2 | 1707- | ALL | |||
| 020 | I7-99400 000-A | WRENCH; 10X12 | 1 | 1707- | ALL | 10X12 | ||
| 029 | I7-99302 305-A | DRIVER; SCREW | 1 | 1707- | ALL | (B) <-> L=275 | ||
| 193 | I8-85510 001-A | JACK ASM | 1 | 1707- | ALL | 10TON | ||
| 115 | I8-97957 882-A | PLIER | 1 | 1707- | ALL | |||
| 029 | I7-99302 306-A | DRIVER; SCREW | 1 | 1707- | ALL | (A) <+> L=190 | ||
| 230 | I7-99305 315-A | PUMP; GREASE | 1 | 1707- | ALL |
