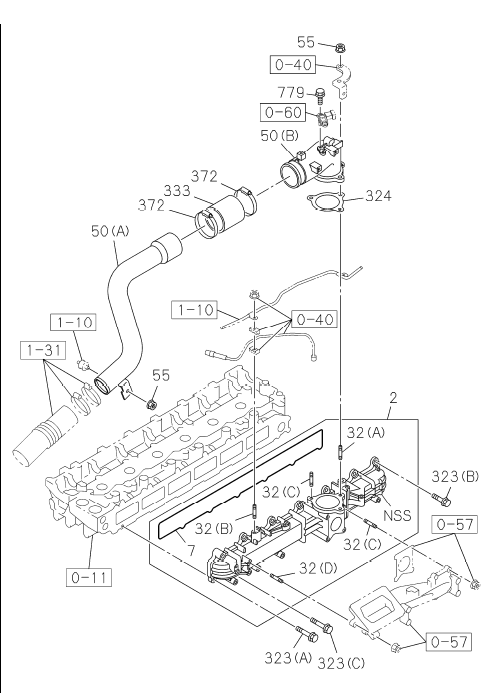

0-25 | INLET MANIFOLD
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 779 | I8-97316 615-0 | BOLT; SENSOR | 2 | 1707- | ALL | M4X10 W/PL WASHER | ||
| 323 | I8-97229 317-1 | BOLT; DUCT | 2 | 1707- | ALL | (C) M8X48 FLANGE | ||
| 032 | I0-41010 840-0 | STUD; INL PIPE | 2 | 1707- | ALL | (A) M8X40 L=52 | ||
| 324 | I8-97601 777-0 | GASKET; INL PIPE TO INL CVR | 1 | 1811- | ALL | ID=78 | ||
| 323 | I0-28650 825-0 | BOLT; DUCT | 6 | 1707- | ALL | (B) M8X25 FLANGE | ||
| 032 | I0-41010 828-0 | STUD; INL PIPE | 3 | 1707- | ALL | (C) M8X28 L=40 | ||
| 323 | I0-28050 850-0 | BOLT; DUCT | 6 | 1707- | ALL | (A) M8X50 FLANGE | ||
| 055 | I0-91180 108-0 | NUT; INL PIPE | 4 | 1707- | ALL | M8 FLANGE | ||
| 333 | I8-97611 306-0 | HOSE; RUBBER,INL PIPE | 1 | 1707- | ALL | ID=80 OD=90 L=80 | ||
| 050 | I8-97607 412-2 | PIPE; INL | 1 | 1707- | ALL | (A) | ||
| 050 | I8-98061 804-1 | PIPE; INL | 1 | 1707- | ALL | (B) | ||
| 372 | I1-09707 141-0 | CLIP; HOSE | 2 | 1707- | ALL | ID=77-99 | ||
| 002 | I8-98061 091-0 | COVER; INL | 1 | 1707- | ALL | |||
| 007 | I8-94390 775-0 | GASKET; INL MANIF TO HD | 1 | 1707- | ALL | |||
| 032 | I0-44011 030-0 | STUD; INL PIPE | 1 | 1707- | ALL | (D) M10X30 L=45 | ||
| 032 | I0-41010 630-0 | STUD; INL PIPE | 5 | 1707- | ALL | (B) M6X30 L=38 |
