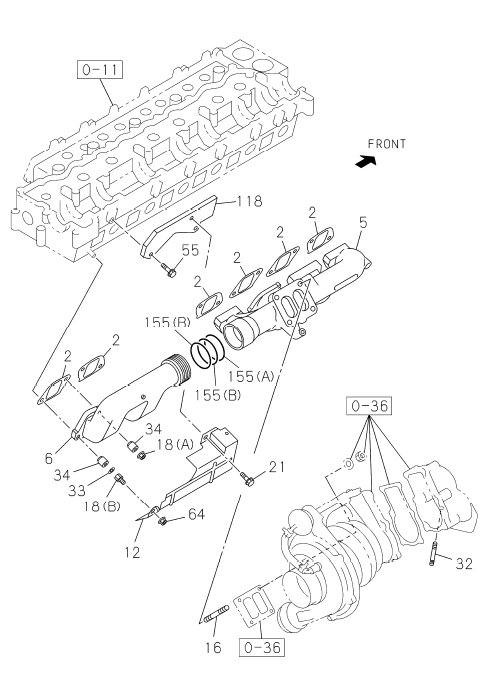

0-27 | EXHAUST MANIFOLD
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-94393 672-4 | GASKET; EXH MANIF TO HD | 6 | 1707- | ALL | |||
| 033 | I1-09556 015-0 | WASHER; EXH MANIF | 2 | 1707- | ALL | T=2.2 | ||
| 032 | I8-94394 656-0 | STUD; EXH PIPE | 1 | 1707- | ALL | M12X103 L=123 | ||
| 005 | I8-97602 056-0 | MANIFOLD; EXH,FRT | 1 | 1707- | ALL | |||
| 118 | I8-97603 366-0 | BRACKET; HEAT PROTECTOR | 1 | 1707- | ALL | |||
| 012 | I8-97601 632-0 | PROTECTOR; HEAT, TURBOCHARGER,EXH MANIF | 1 | 1707- | ALL | |||
| 006 | I8-97600 970-0 | MANIFOLD; EXH,RR | 1 | 1707- | ALL | |||
| 064 | I7-05110 010-A | NUT; HEAT PROTECTOR | 2 | 1707- | ALL | M10 FLANGE | ||
| 018 | I0-91370 010-0 | NUT; EXH MANIF | 10 | 1707- | ALL | (A) M10 LOCK NUT | ||
| 155 | I1-14149 184-0 | RING; SEAL,EXH MANIF | 2 | 1707- | ALL | (B) | ||
| 018 | I8-98205 394-0 | NUT; EXH MANIF | 2 | 1707- | ALL | (B) M10 | ||
| 034 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 12 | 1707- | ALL | L=28 | ||
| 021 | I0-28050 816-0 | BOLT; HEAT PROTECTOR | 1 | 1707- | ALL | M8X16 FLANGE | ||
| 016 | I9-04731 025-0 | STUD; EXH PIPE TO MANIF | 2 | 1707- | ALL | M10X25 L=40 | ||
| 155 | I1-14149 151-0 | RING; SEAL,EXH MANIF | 1 | 1707- | ALL | (A) STAMP RH | ||
| 055 | I0-28050 816-0 | BOLT; BRKT | 2 | 1707- | ALL | M8X16 FLANGE |
