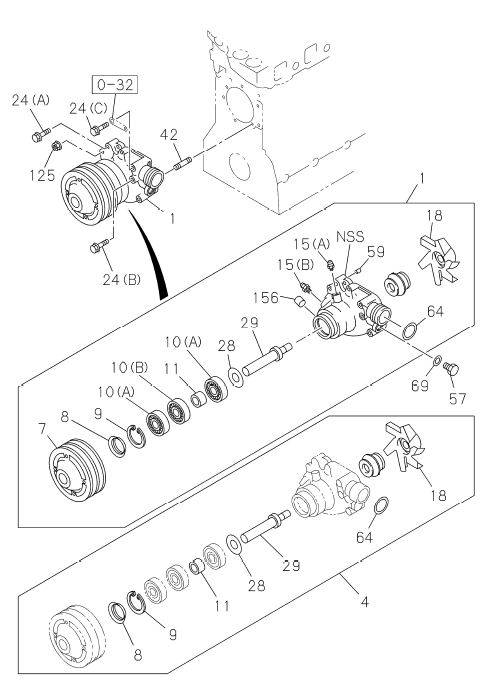

0-30 | WATER PUMP AND CORROSION RESISTOR
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 064 | I1-09623 383-0 | GASKET; WATER PUMP TO DUCT | 1 | 1707- | ALL | ID=44.7 | ||
| 010 | I8-94391 299-0 | BEARING; WATER PUMP | 1 | 1707- | ALL | (B) | ||
| 018 | I8-94392 922-0 | IMPELLER; WATER PUMP | 1 | 1707- | ALL | |||
| 024 | I8-94397 359-1 | BOLT; WATER PUMP | 1 | 1707- | ALL | (C) M10X85 FLANGE | ||
| 010 | I8-94391 298-0 | BEARING; WATER PUMP | 2 | 1707- | ALL | (A) | ||
| 024 | I8-94130 055-1 | BOLT; WATER PUMP | 3 | 1707- | ALL | (A) M8X58 FLANGE | ||
| 011 | I1-13634 040-0 | SPACER; BRG,WATER PUMP | 1 | 1707- | ALL | |||
| 015 | I0-90301 410-0 | NIPPLE; GREASE,WATER PUMP | 1 | 1707- | ALL | (B) PT1/8 STRAIGHT | ||
| 029 | I8-98280 700-0 | SHAFT; WATER PUMP | 1 | 1707- | ALL | |||
| 059 | I1-13119 003-0 | DOWEL; WATER PUMP | 2 | 1707- | ALL | OD=12 L=9 | ||
| 001 | I1-87310 974-0 | PUMP ASM; WATER,W/GASKET | 1 | 1707- | ALL | |||
| 057 | I9-99202 320-0 | PLUG; HTR,WATER PUMP | 1 | 1707- | ALL | M20 | ||
| 004 | I1-87814 615-0 | REPAIR KIT; WATER PUMP | 1 | 1707- | ALL | |||
| 015 | I1-09380 002-0 | NIPPLE; GREASE,WATER PUMP | 1 | 1707- | ALL | (A) PT1/8 STRAIGHT | ||
| 024 | I0-28050 880-0 | BOLT; WATER PUMP | 1 | 1707- | ALL | (B) M8X80 FLANGE | ||
| 009 | I9-09180 162-0 | RING; SNAP,WATER PUMP | 1 | 1707- | ALL | ID=57.9 | ||
| 007 | I8-98281 099-0 | PULLEY; WATER PUMP | 1 | 1707- | ALL | |||
| 156 | I1-09600 016-0 | CUP; SEALING | 1 | 1707- | ALL | OD=25 | ||
| 028 | I8-94397 097-0 | WASHER; WATER PUMP | 1 | 1707- | ALL | ID=25.5 OD=50 | ||
| 008 | I8-94399 457-0 | THROWER; DUST,WATER PUMP | 1 | 1707- | ALL | |||
| 069 | I9-09571 420-0 | GASKET; PLUG,HTR | 1 | 1707- | ALL | ID=20.5 OD=28.0 | ||
| 042 | I0-40110 830-0 | STUD; WATER PUMP | 1 | 1707- | ALL | M8X30 L=46 | ||
| 125 | I0-91180 108-0 | NUT; WATER PUMP | 4 | 1707- | ALL | M8 FLANGE |
