| 110 |
I1-09701 284-0 |
|
CLIP; AIR PIPE |
6 |
1707- |
|
ALL |

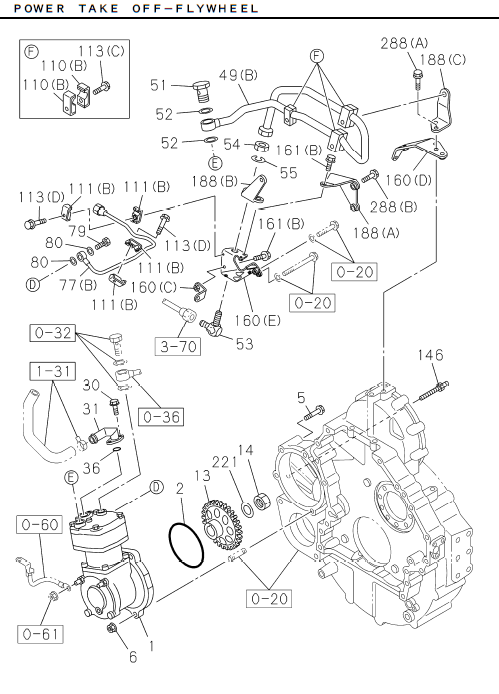

(B) ID=17 L=17 ; POWER TAKE OFF-FLYWHEEL |
| 160 |
I8-98074 255-0 |
|
BRACKET; AIR PIPE |
1 |
1707- |
|
ALL |

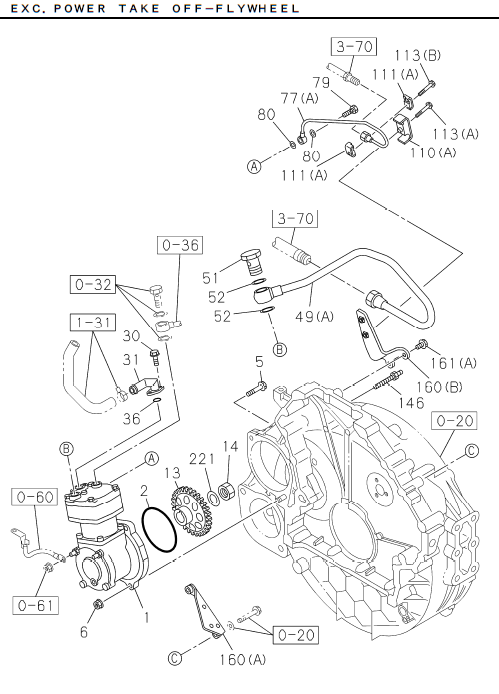

(B) EXC. POWER TAKE OFF |
| 077 |
I8-97618 725-0 |
|
PIPE; AIR,GOV |
1 |
1707- |
|
ALL |
(A) EXC. POWER TAKE OFF |
| 036 |
I1-09623 057-0 |
|
GASKET; AIR PIPE TO AIR CMPR |
1 |
1707- |
|
ALL |
ID=24.4 |
| 146 |
I1-09049 038-1 |
|
STUD; AIR CMPR |
1 |
1707- |
|
ALL |
M10X16,M12X70 L=97.7 |
| 160 |
I8-98052 613-1 |
|
BRACKET; AIR PIPE |
1 |
1707- |
|
ALL |
(C) POWER TAKE OFF-FLYWHEEL |
| 221 |
I0-91610 520-0 |
|
WASHER; PL,GEAR |
1 |
1707- |
|
ALL |
ID=21 |
| 080 |
I1-09630 083-0 |
|
GASKET; AIR PIPE TO CMPR |
2 |
1707- |
|
ALL |
ID=10.2 OD=15.2 |
| 113 |
I0-28050 640-0 |
|
BOLT; CLIP,AIR PIPE |
1 |
1707- |
|
ALL |
(A) M6X40 FLANGE ; EXC. POWER TAKE OFF |
| 113 |
I0-28050 845-0 |
|
BOLT; CLIP,AIR PIPE |
3 |
1707- |
|
ALL |
(C) M8X45 FLANGE ; POWER TAKE OFF-FLYWHEEL |
| 160 |
I8-98052 614-0 |
|
BRACKET; AIR PIPE |
1 |
1707- |
|
ALL |
(D) POWER TAKE OFF-FLYWHEEL |
| 001 |
I8-98187 301-1 |
|
COMPRESSOR ASM; AIR |
1 |
1707- |
|
ALL |
|
| 005 |
I0-28151 270-0 |
|
BOLT; AIR CMPR FIX |
2 |
1707- |
|
ALL |
M12X70 FLANGE |
| 110 |
I8-94393 037-0 |
|
CLIP; AIR PIPE |
1 |
1707- |
|
ALL |
(A) EXC. POWER TAKE OFF |
| 049 |
I8-97618 723-0 |
|
PIPE; AIR,CHARGE |
1 |
1707- |
|
ALL |
(A) EXC. POWER TAKE OFF |
| 113 |
I0-28650 640-0 |
|
BOLT; CLIP,AIR PIPE |
1 |
1707- |
|
ALL |
(B) M6X40 FLANGE ; EXC. POWER TAKE OFF |
| 160 |
I8-98248 812-0 |
|
BRACKET; AIR PIPE |
1 |
1707- |
|
ALL |
(E) POWER TAKE OFF-FLYWHEEL |
| 006 |
I0-91180 212-0 |
|
NUT; AIR CMPR |
1 |
1707- |
|
ALL |
M12 FLANGE |
| 161 |
I0-28050 816-0 |
|
BOLT; BRKT,AIR PIPE |
2 |
1707- |
|
ALL |
(A) M8X16 FLANGE ; EXC. POWER TAKE OFF |
| 113 |
I0-28050 635-0 |
|
BOLT; CLIP,AIR PIPE |
2 |
1707- |
|
ALL |
(D) M6X35 FLANGE ; POWER TAKE OFF-FLYWHEEL |
| 030 |
I0-28650 820-0 |
|
BOLT; PIPE CLIP |
2 |
1707- |
|
ALL |
M8X20 FLANGE |
| 031 |
I8-97620 948-0 |
|
PIPE; AIR,AIR CMPR SUCTION |
1 |
1707- |
|
ALL |
|
| 014 |
I0-91110 520-0 |
|
NUT; GEAR |
1 |
1707- |
|
ALL |
M20 |
| 013 |
I8-94394 511-4 |
|
GEAR; AIR CMPR DRIVE |
1 |
1707- |
|
ALL |
Z=49 |
| 055 |
I0-91510 527-0 |
|
WASHER; LK,PIPE UNION |
1 |
1707- |
|
ALL |
ID=27.5 ; POWER TAKE OFF-FLYWHEEL |
| 002 |
I1-09623 570-0 |
|
GASKET; AIR CMPR |
1 |
1707- |
|
ALL |
ID=162 |
| 052 |
I9-09571 424-0 |
|
GASKET; EYE BOLT,AIR PIPE |
2 |
1707- |
|
ALL |
ID=24.5 OD=32 |
| 188 |
I8-98052 615-1 |
|
STAY; AIR PIPE |
1 |
1707- |
|
ALL |
(A) POWER TAKE OFF-FLYWHEEL |
| 079 |
I8-98037 824-0 |
|
BOLT; EYE,AIR PIPE TO CMPR |
1 |
1707- |
|
ALL |
M10X23 EYE-BOLT |
| 051 |
I1-09675 175-2 |
|
BOLT; EYE,AIR PIPE TO CMPR |
1 |
1707- |
|
ALL |
M24X39 |
| 111 |
I8-98029 953-1 |
|
CLIP; AIR PIPE |
2 |
1707- |
|
ALL |
(A) ID=5.5 L=10.5 ; EXC. POWER TAKE OFF |
| 288 |
I0-28050 820-0 |
|
BOLT; STAY FIX |
3 |
1707- |
|
ALL |
(A) M8X20 FLANGE ; POWER TAKE OFF-FLYWHEEL |
| 077 |
I1-09623 570-0 |
|
PIPE; AIR,GOV |
1 |
1707- |
|
ALL |
(B) POWER TAKE OFF-FLYWHEEL |
| 053 |
I8-98008 887-2 |
|
UNION; CHARGE PIPE |
1 |
1707- |
|
ALL |
M22 & M26 ELBOW ; POWER TAKE OFF-FLYWHEEL |
| 288 |
I0-28051 045-0 |
|
BOLT; STAY FIX |
2 |
1707- |
|
ALL |
(B) M10X45 FLANGE ; POWER TAKE OFF-FLYWHEEL |
| 111 |
I8-98249 713-1 |
|
CLIP; AIR PIPE |
4 |
1707- |
|
ALL |
(B) POWER TAKE OFF-FLYWHEEL |
| 160 |
I8-97614 182-2 |
|
BRACKET; AIR PIPE |
1 |
1707- |
|
ALL |
(A) EXC. POWER TAKE OFF |
| 161 |
I0-28151 030-0 |
|
BOLT; BRKT,AIR PIPE |
2 |
1707- |
|
ALL |
(B) M10X30 FLANGE ; POWER TAKE OFF-FLYWHEEL |
| 054 |
I8-98049 390-0 |
|
NUT; PIPE UNION |
1 |
1707- |
|
ALL |
M26 ; POWER TAKE OFF-FLYWHEEL |
| 049 |
I8-98052 017-0 |
|
PIPE; AIR,CHARGE |
1 |
1707- |
|
ALL |
(B) POWER TAKE OFF-FLYWHEEL |
| 188 |
I8-98053 882-0 |
|
STAY; AIR PIPE |
1 |
1707- |
|
ALL |
(B) POWER TAKE OFF-FLYWHEEL |
| 188 |
I8-98053 883-0 |
|
STAY; AIR PIPE |
1 |
1707- |
|
ALL |
(C) POWER TAKE OFF-FLYWHEEL |
