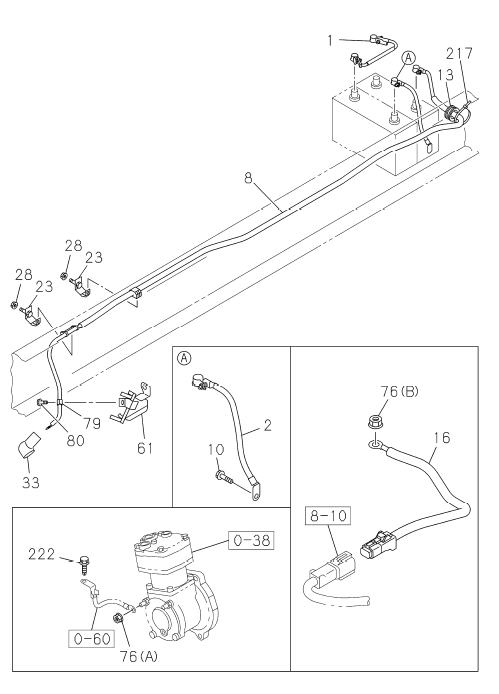

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 076 | I0-91180 108-0 | NUT; BATTERY CABLE | 1 | 1707- | ALL | (A) M8 FLANGE | ||
| 002 | I8-98313 760-2 | CABLE; BATTERY | 1 | 1707- | FVZ | L=240 ; WB5400MM , WB7100MM | ||
| 008 | I8-97696 168-A | CABLE; BATTERY,STARTER | 1 | 1707- | FVZ | WB4900MM | ||
| 008 | I8-98481 550-A | CABLE; BATTERY,STARTER | 1 | 1811- | GVZ | |||
| 222 | I8-97087 204-0 | BOLT; EARTH CABLE | 1 | 1707- | FVZ | M8X30 W/LK&PL WASHER | ||
| 033 | I1-82699 431-0 | CAP; INSULATOR | 1 | 1811- | ALL | |||
| 016 | I8-98481 555-A | CABLE; STARTER TO RELAY | 1 | 1811- | GVZ | |||
| 028 | I0-91180 108-0 | NUT; BRKT TO FRAME | 2 | 1811- | ALL | M8 FLANGE | ||
| 016 | I8-97696 169-A | CABLE; STARTER TO RELAY | 1 | 1707- | FVZ | WB5400MM , WB7100MM | ||
| 061 | I8-98051 379-1 | BRACKET; BATTERY CABLE | 1 | 1707- | ALL | |||
| 023 | I8-97612 957-1 | BRACKET; CABLE CLIP TO FRAME | 2 | 1811- | ALL | |||
| 013 | I1-09891 003-0 | GROMMET; BATTERY CABLE | 1 | 1811- | ALL | ID=32 OD=40 T=18 | ||
| 080 | I0-28650 820-0 | BOLT; BATTERY CABLE CLIP | 1 | 1811- | ALL | M8X20 FLANGE | ||
| 010 | I8-97087 203-0 | BOLT; BATTERY CABLE CLIP | 1 | 1811- | ALL | M8X25 W/LK&PL WASHER | ||
| 217 | I1-09707 183-0 | CLIP; BAND,CABLE | 1 | 1811- | GVZ | L=350 | ||
| 008 | I8-97696 167-A | CABLE; BATTERY,STARTER | 1 | 1707- | FVZ | WB5400MM , WB7100MM | ||
| 016 | I8-97696 170-A | CABLE; STARTER TO RELAY | 1 | 1707- | FVZ | WB4900MM | ||
| 222 | I8-97087 203-0 | BOLT; EARTH CABLE | 1 | 1811- | GVZ | M8X25 W/LK&PL WASHER | ||
| 079 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1811- | ALL | ID=15 L=28 | ||
| 076 | I0-91110 506-0 | NUT; BATTERY CABLE | 1 | 1811- | ALL | (B) M6 | ||
| 001 | I7-42502 223-A | CABLE; BATTERY | 1 | 2103- | ALL | |||
| 002 | I8-98333 034-1 | CABLE; BATTERY | 1 | 1707- | FVZ | L=325 ; WB4900MM | ||
| 002 | I7-42501 236-A | CABLE; BATTERY | 1 | 1811- | GVZ | L=185 | ||
| 001 | I8-97922 383-A | CABLE; BATTERY | 1 | 1811- | ALL | L=280 |
