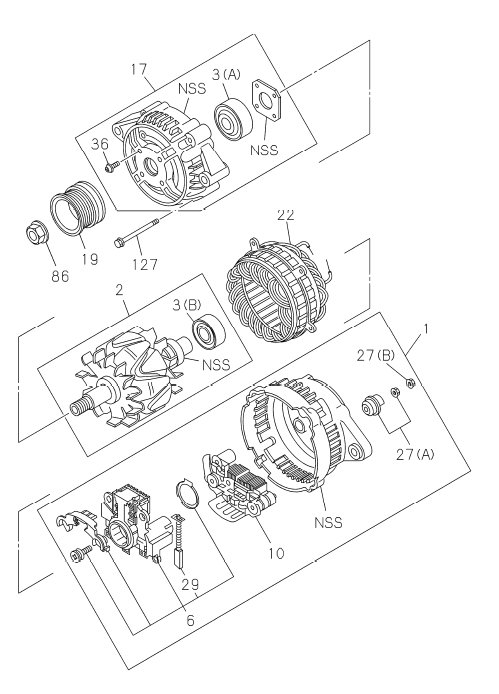

| 003 |
I8-98273 814-0 |
|
BEARING; ROTOR,GEN |
1 |
0 |
|
ALL |
(A) ASM PART 8-98314-430-1 |
| 027 |
I8-98273 824-0 |
|
NUT; RECTIFIER,GEN |
1 |
0 |
|
ALL |
(A) ASM PART 8-98314-430-1 |
| 027 |
I1-81229 821-0 |
|
NUT; RECTIFIER,GEN |
1 |
0 |
|
ALL |
(B) ASM PART 8-98314-430-1 |
| 029 |
I8-98273 826-0 |
|
BRUSH; GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 002 |
I8-98273 815-0 |
|
ROTOR; GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 001 |
I8-98382 399-0 |
|
COVER ASM; RR,GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 010 |
I8-98273 822-0 |
|
RECTIFIER; GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 086 |
I8-97145 327-0 |
|
NUT SET; PULLEY,GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 017 |
I8-98382 398-0 |
|
COVER ASM; FRT,GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 003 |
I8-98273 817-0 |
|
BEARING; ROTOR,GEN |
1 |
0 |
|
ALL |
(B) ASM PART 8-98314-430-1 |
| 127 |
I8-97145 328-0 |
|
BOLT SET; GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 019 |
I8-98382 412-0 |
|
PULLEY; GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 006 |
I8-98382 409-0 |
|
REGULATOR ASM; VOLTAGE,GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 022 |
I8-98273 818-0 |
|
STATOR; GEN |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
| 036 |
I8-97178 136-0 |
|
SCREW; FRT COVER |
1 |
0 |
|
ALL |
ASM PART 8-98314-430-1 |
