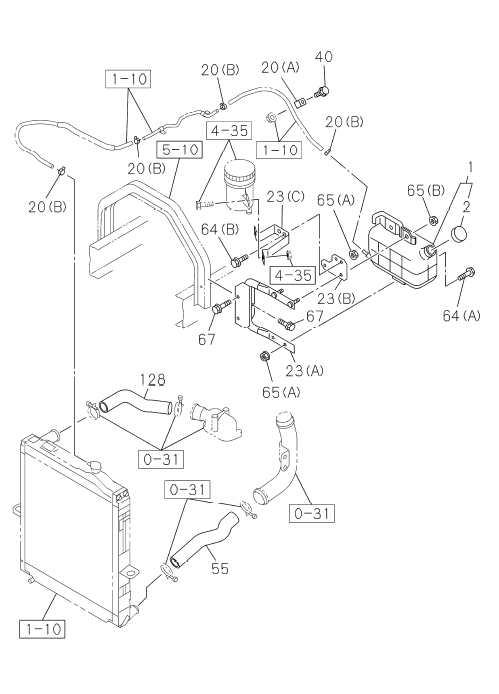

1-11 | RADIATOR HOSE AND SUB TANK
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 023 | I8-98314 037-0 | BRACKET; RESERVE TANK | 1 | 1707- | ALL | (A) | ||
| 067 | I0-28650 820-0 | BOLT; BRKT | 3 | 1707- | ALL | M8X20 FLANGE | ||
| 055 | I8-97924 162-A | HOSE; WATER,RAD OUTLET | 1 | 1707- | ALL | |||
| 065 | I0-91180 108-0 | NUT; BRKT,SUB TANK | 3 | 1707- | ALL | (A) M8 FLANGE | ||
| 065 | I1-09464 018-1 | NUT; BRKT,SUB TANK | 2 | 1707- | ALL | (B) M8 FLANGE | ||
| 020 | I0-95235 235-0 | CLIP; HOSE,RAD | 1 | 1707- | ALL | (A) ID=13 L=20 | ||
| 128 | I8-97924 240-A | HOSE; WATER,RAD INL | 1 | 1707- | ALL | |||
| 040 | I0-28650 820-0 | BOLT; CLIP | 1 | 1707- | ALL | M8X20 FLANGE | ||
| 064 | I1-09030 093-0 | BOLT; BRKT,SUB TANK | 1 | 1707- | ALL | (A) M8X25 W/LK&PL WASHER | ||
| 023 | I8-98314 040-0 | BRACKET; RESERVE TANK | 1 | 1707- | ALL | (B) | ||
| 020 | I8-97375 638-0 | CLIP; HOSE,RAD | 4 | 1707- | ALL | (B) ID=11.5 | ||
| 023 | I8-98314 041-0 | BRACKET; RESERVE TANK | 1 | 1707- | ALL | (C) | ||
| 002 | I8-98348 976-0 | CAP; SURGE TANK | 1 | 1707- | ALL | |||
| 128 | I6-97924 240-0 | HOSE; WATER,RAD INL | 1 | 1707- | ALL | (IADG) | ||
| 001 | I8-98314 022-0 | TANK; SURGE,RAD | 1 | 1707- | ALL | |||
| 064 | I0-28050 820-0 | BOLT; BRKT,SUB TANK | 2 | 1707- | ALL | (B) M8X20 FLANGE | ||
| 055 | I6-97924 162-0 | HOSE; WATER,RAD OUTLET | 1 | 1707- | ALL | (IADG) |
