Isuzu | Part Center System

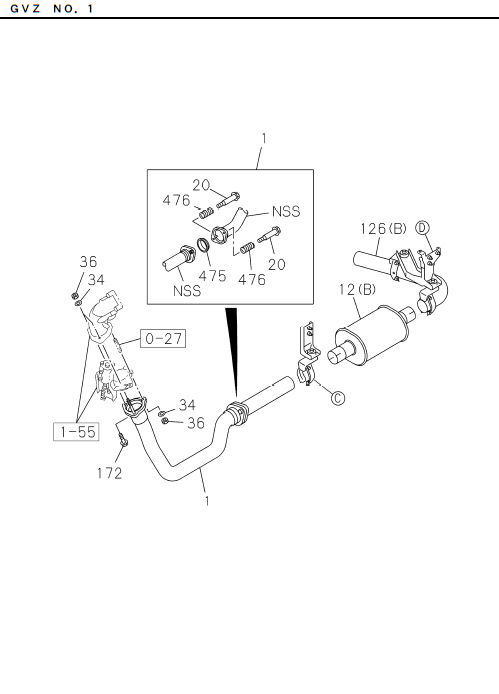

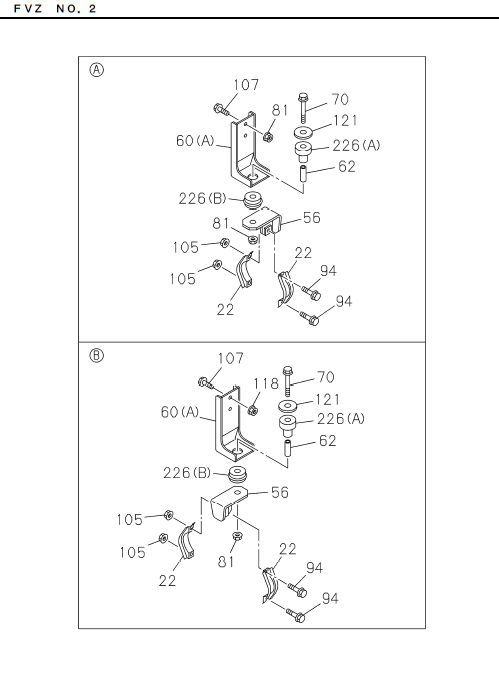

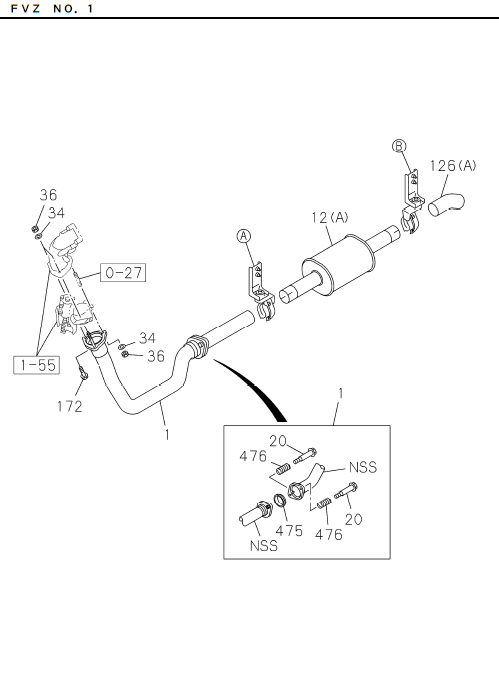

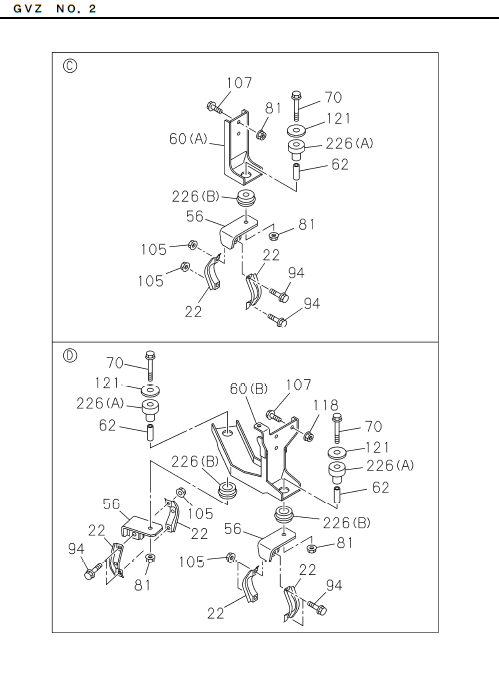

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

020	I8-98317 923-0	BOLT; FLANGE,EXH PIPE	2	1811-	ALL
476	I8-98317 926-0	SPRING; VIBNON,EXH PIPE	2	1811-	ALL
060	I8-98314 418-A	BRACKET; FRAME TO BRKT	1	1811-	ALL	(A)
105	I7-05110 010-A	NUT; CLAMP	2	1811-	ALL	M10 FLANGE
036	I1-09400 010-0	NUT; EXH PIPE	3	1811-	ALL	M12
012	I8-97696 284-A	SILENCER ASM; EXH	1	1707-	FVZ	(A)
001	I8-97696 283-A	PIPE; EXH	1	1811-	ALL
034	I1-09500 030-0	WASHER; EXH PIPE	3	1811-	ALL	ID=13 OD=24 DISH
062	I8-97948 228-0	TUBE; DIST,BRKT	1	1811-	ALL
226	I8-97948 227-0	RUBBER; CUSHION	1	1811-	ALL	(B)
094	I0-28651 040-0	BOLT; CLAMP	2	1811-	ALL	M10X40 FLANGE
126	I8-98314 048-A	PIPE; EXH,RR	1	1707-	FVZ	(A) WB5400MM , WB7100MM
226	I8-97948 226-0	RUBBER; CUSHION	1	1811-	ALL	(A)
081	I7-05110 010-A	NUT; BRKT	3	1811-	ALL	M10 FLANGE
126	I8-98314 047-A	PIPE; EXH,RR	1	1707-	FVZ	(A) WB4900MM
475	I8-98317 846-0	BEARING; SEAL,VIBNON,EXH PIPE	1	1811-	ALL
012	I8-98485 698-A	SILENCER ASM; EXH	1	1811-	GVZ	(B)
172	I1-09000 293-0	BOLT	1	1811-	ALL	M12X120
022	I8-98314 424-0	CLAMP; EXH PIPE	2	1811-	ALL
060	I8-98486 004-0	BRACKET; FRAME TO BRKT	1	1811-	GVZ	(B)
056	I8-98314 420-A	BRACKET; CLAMP,EXH PIPE	1	1811-	ALL
107	I0-28651 035-0	BOLT; BRKT	2	1811-	ALL	M10X35 FLANGE
070	I0-28051 070-0	BOLT; BRKT	1	1811-	ALL	M10X70 FLANGE
126	I8-98485 701-A	PIPE; EXH,RR	1	1811-	GVZ	(B)
118	I7-05110 010-A	NUT; SILENCER MTG BRKT	2	1707-	ALL	M10 FLANGE
121	I1-09503 154-2	WASHER; PL,BRKT	1	1811-	ALL	ID=11 OD=54
