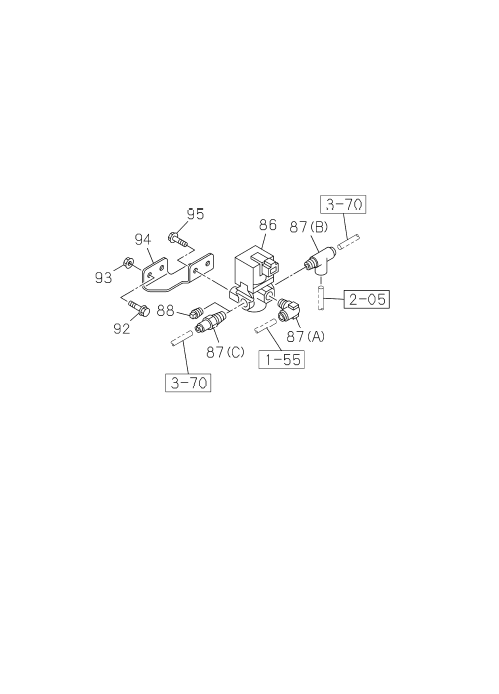

1-56 | EXHAUST BRAKE SYSTEM
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 087 | I1-09660 956-0 | CONNECTOR | 1 | 1707- | ALL | (A) DIN8 & R1/4 ELBOW | ||
| 086 | I8-97948 152-0 | VALVE; MAG,EXH BRK | 1 | 1707- | ALL | |||
| 095 | I0-28650 820-0 | BOLT; BRKT,MAG VLV,EXH BRAKE | 2 | 1707- | ALL | M8X20 FLANGE | ||
| 087 | I1-09661 006-0 | CONNECTOR | 1 | 1707- | ALL | (B) DIN8X2 & R1/4 3WAY | ||
| 092 | I0-28650 830-0 | BOLT; MAG VLV | 2 | 1707- | ALL | M8X30 FLANGE | ||
| 094 | I8-98311 923-0 | BRACKET; MAG VLV,EXH BRAKE | 1 | 1707- | ALL | |||
| 087 | I1-09660 963-0 | CONNECTOR | 1 | 1707- | ALL | (C) DIN8 R1/4 STRAIGHT | ||
| 093 | I0-91180 108-0 | NUT; MAG VLV | 2 | 1707- | ALL | M8 FLANGE | ||
| 088 | I9-99204 513-0 | PLUG | 1 | 1811- | ALL | PT1/4 |
