| 080 |
I0-28650 825-0 |
|
BOLT; BRKT |
1 |
1811- |
|
GVZ |
M8X25 FLANGE |
| 009 |
I1-80220 023-1 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
1707- |
|
FVZ |
(B) THREAD R1/4 SENSOR AIR METER |
| 005 |
I1-09660 959-0 |
|
UNION; AIR TANK |
3 |
1707- |
|
ALL |
(A) DIN12 & R3/8 ELBOW |
| 102 |
I8-98326 277-0 |
|
BRACKET; MODULATOR |
1 |
1811- |
|
GVZ |
(A) |
| 104 |
I0-91180 108-0 |
|
NUT; BRKT |
2 |
1811- |
|
ALL |
M8 FLANGE |
| 317 |
I1-09650 494-1 |
|
CONNECTOR; MODULATOR |
2 |
1811- |
|
GVZ |
(B) INNER PT3/8,OUTER M22 |
| 037 |
I0-28651 440-0 |
|
BOLT; AIR TANK |
8 |
1811- |
|
ALL |
M14X40 FLANGE |
| 126 |
I1-47459 013-0 |
|
CONNECTOR; ELBOW |
1 |
1811- |
|
GVZ |
(G) R1/4 & M16 TEST CONNECTOR |
| 001 |
I8-98327 443-0 |
|
TANK ASM; AIR |
1 |
1707- |
|
FVZ |
(B) |
| 006 |
I1-48312 015-0 |
|
COCK; DRAIN,AIR TANK |
5 |
1707- |
|
ALL |
|
| 100 |
I0-28050 890-0 |
|
BOLT; MODULATOR |
4 |
1811- |
|
GVZ |
(A) M8X90 FLANGE |
| 100 |
I0-28055 815-0 |
|
BOLT; MODULATOR |
2 |
1811- |
|
GVZ |
(C) M8X150 FLANGE |
| 176 |
I1-09660 693-0 |
|
ADAPTER |
2 |
1811- |
|
ALL |
(B) PT1/4 & PT1/4 2WAY |
| 001 |
I8-98486 058-0 |
|
TANK ASM; AIR |
1 |
1811- |
|
GVZ |
(E) |
| 119 |
I0-28650 825-0 |
|
BOLT; STAY |
2 |
1811- |
|
ALL |
M8X25 FLANGE |
| 317 |
I1-09650 179-1 |
|
CONNECTOR; MODULATOR |
2 |
1811- |
|
GVZ |
(A) M16 & PT3/8 STRAIGHT |
| 178 |
I1-09707 183-0 |
|
CLIP; HOSE |
1 |
1811- |
|
GVZ |
(B) L=350 |
| 039 |
I1-48317 248-A |
|
U-BOLT; AIR TANK |
2 |
1811- |
|
GVZ |
L=253 |
| 102 |
I8-98348 582-0 |
|
BRACKET; MODULATOR |
1 |
1811- |
|
GVZ |
(E) |
| 126 |
I1-09660 959-0 |
|
CONNECTOR; ELBOW |
3 |
1707- |
|
ALL |
(C) DIN12 & R3/8 ELBOW |
| 102 |
I8-98311 987-0 |
|
BRACKET; MODULATOR |
1 |
1811- |
|
GVZ |
(D) |
| 045 |
I0-91110 508-0 |
|
NUT; AIR TANK,MAIN |
8 |
1811- |
|
ALL |
(A) M8 |
| 126 |
I1-09660 965-0 |
|
CONNECTOR; ELBOW |
2 |
1811- |
|
ALL |
(D) DIN12 & R3/8 STRAIGHT |
| 001 |
I8-98483 777-1 |
|
TANK ASM; AIR |
1 |
1811- |
|
GVZ |
(C) |
| 126 |
I1-09661 128-0 |
|
CONNECTOR; ELBOW |
1 |
1811- |
|
GVZ |
(I) DIN7.5X2 & M8 2WAY |
| 126 |
I1-09660 957-0 |
|
CONNECTOR; ELBOW |
2 |
1811- |
|
GVZ |
(H) DIN8 & R3/8 ELBOW |
| 107 |
I8-98215 454-0 |
|
MODULATOR; RR |
2 |
1811- |
|
GVZ |
|
| 028 |
I8-98119 184-1 |
|
BRACKET; AIR TANK |
1 |
1811- |
|
GVZ |
(C) |
| 010 |
I9-99204 513-0 |
|
PLUG; AIR TANK |
4 |
1707- |
|
ALL |
PT1/4 |
| 109 |
I8-98215 454-0 |
|
MODULATOR; FRT |
2 |
1811- |
|
GVZ |
|
| 261 |
I8-98483 783-0 |
|
TUBE; NYLON |
1 |
1811- |
|
GVZ |
(B) |
| 028 |
I8-98483 781-A |
|
BRACKET; AIR TANK |
1 |
1811- |
|
GVZ |
(B) |
| 335 |
I1-09650 494-1 |
|
CONNECTOR; MODULATOR |
2 |
1811- |
|
GVZ |
(A) INNER PT3/8,OUTER M22 |
| 317 |
I1-09661 050-0 |
|
CONNECTOR; MODULATOR |
2 |
1811- |
|
GVZ |
(C) DIN12 & M22 STRAIGHT |
| 100 |
I0-28650 830-0 |
|
BOLT; MODULATOR |
4 |
1811- |
|
GVZ |
(B) M8X30 FLANGE |
| 064 |
I8-98312 048-0 |
|
STAY; AIR TANK,MAIN |
1 |
1811- |
|
ALL |
|
| 126 |
I8-98166 127-0 |
|
CONNECTOR; ELBOW |
2 |
1811- |
|
ALL |
(F) R3/8 & RC3/8 & RC1/4 3WAY |
| 261 |
I8-98483 782-0 |
|
TUBE; NYLON |
1 |
1811- |
|
GVZ |
(A) |
| 126 |
I1-09661 026-0 |
|
CONNECTOR; ELBOW |
2 |
1811- |
|
ALL |
(A) DIN12X2 & PT3/8 DOUBLE ELBOW |
| 101 |
I0-91180 110-0 |
|
NUT; MODULATOR |
2 |
1811- |
|
GVZ |
(B) M10 FLANGE |
| 038 |
I8-98312 050-0 |
|
BAND; AIR TANK |
2 |
1811- |
|
ALL |
(B) |
| 176 |
I1-09650 494-1 |
|
ADAPTER |
2 |
1811- |
|
GVZ |
(C) INNER PT3/8,OUTER M22 |
| 126 |
I1-09661 133-0 |
|
CONNECTOR; ELBOW |
2 |
1811- |
|
GVZ |
(J) DIN8X2 & M8 2WAY |
| 101 |
I0-91111 516-0 |
|
NUT; MODULATOR |
2 |
1811- |
|
GVZ |
(C) M16 |
| 241 |

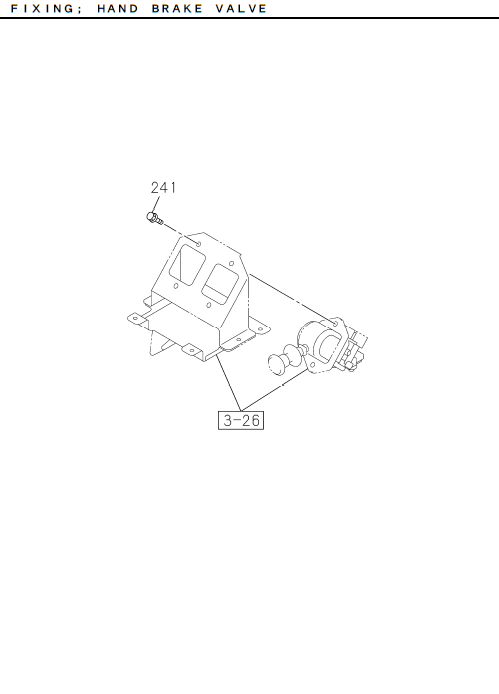

I0-28650 820-0 |
|
BOLT; SET,CONT VLV |
2 |
1811- |
|
ALL |
M8X20 FLANGE |
| 001 |
I8-97491 271-0 |
|
TANK ASM; AIR |
1 |
1811- |
|
GVZ |
(D) |
| 042 |
I0-91614 608-0 |
|
WASHER; PL |
4 |
1811- |
|
GVZ |
ID=8.4 OD=18 |
| 405 |
I9-09571 422-0 |
|
GASKET |
2 |
1811- |
|
GVZ |
ID=22.5 |
| 046 |
I7-05110 010-A |
|
NUT; U-BOLT |
4 |
1811- |
|
GVZ |
(B) M10 FLANGE |
| 166 |
I1-80220 023-1 |
|
SWITCH ASM; LOW PRESSURE, MAIN TANK |
1 |
1707- |
|
FVZ |
(A) THREAD R1/4 SENSOR AIR METER |
| 166 |
I8-97609 249-0 |
|
SWITCH ASM; LOW PRESSURE, MAIN TANK |
1 |
1811- |
|
ALL |
(B) STAMP 5.5 |
| 003 |
I1-48320 031-1 |
|
VALVE; CHECK,AIR TANK |
2 |
1707- |
|
ALL |
(A) M18 & R3/8 & RC3/8 CHECK VALVE |
| 031 |
I0-28650 825-0 |
|
BOLT; BRKT TO FRAME |
2 |
1811- |
|
GVZ |
(A) M8X25 FLANGE |
| 278 |
I8-98483 779-A |
|
BRACKET; CONNECTOR |
1 |
1811- |
|
GVZ |
|
| 007 |
I1-09630 145-0 |
|
GASKET; DRAIN COCK |
5 |
1707- |
|
ALL |
ID=14 |
| 003 |
I8-98032 527-0 |
|
VALVE; CHECK,AIR TANK |
1 |
1811- |
|
GVZ |
(B) DIN18 & R3/8 & RC3/8 3WAY |
| 126 |
I1-09660 693-0 |
|
CONNECTOR; ELBOW |
2 |
1811- |
|
ALL |
(E) PT1/4 & PT1/4 2WAY |
| 261 |
I8-98483 784-0 |
|
TUBE; NYLON |
1 |
1811- |
|
GVZ |
(C) |
| 005 |
I1-09660 965-0 |
|
UNION; AIR TANK |
2 |
1707- |
|
ALL |
(B) DIN12 & R3/8 STRAIGHT |
| 177 |
I0-03516 060-A |
|
HOSE; RUBBER,DRAIN |
1 |
1811- |
|
ALL |
L=60 |
| 351 |
I1-47459 013-0 |
|
CONNECTOR; TEST |
2 |
1811- |
|
GVZ |
R1/4 & M16 TEST CONNECTOR |
| 101 |
I0-91180 108-0 |
|
NUT; MODULATOR |
2 |
1811- |
|
GVZ |
(A) M8 FLANGE |
| 009 |
I8-97609 249-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
1811- |
|
ALL |
(A) STAMP 5.5 |
| 038 |
I1-48317 109-2 |
|
BAND; AIR TANK |
2 |
1811- |
|
ALL |
(A) |
| 166 |
I8-98346 869-0 |
|
SWITCH ASM; LOW PRESSURE, MAIN TANK |
1 |
1811- |
|
GVZ |
(C) THREAD R1/4 SENSOR AIR METER |
| 045 |
I0-91110 510-0 |
|
NUT; AIR TANK,MAIN |
4 |
1811- |
|
ALL |
(B) M10 |
| 291 |
I0-91614 608-0 |
|
WASHER; PL,BRKT |
8 |
1811- |
|
GVZ |
ID=8.4 OD=18 |
| 176 |
I8-98166 127-0 |
|
ADAPTER |
1 |
1811- |
|
ALL |
(A) R3/8 & RC3/8 & RC1/4 3WAY |
| 105 |
I8-98326 385-0 |
|
COVER; MODULATOR |
1 |
1811- |
|
GVZ |
|
| 028 |
I8-98330 422-1 |
|
BRACKET; AIR TANK |
2 |
1811- |
|
ALL |
(A) |
| 067 |
I1-48317 691-0 |
|
STAY; SUB TANK |
1 |
1811- |
|
ALL |
|
| 102 |
I8-98326 276-0 |
|
BRACKET; MODULATOR |
1 |
1811- |
|
GVZ |
(C) |
| 031 |
I0-28050 816-0 |
|
BOLT; BRKT TO FRAME |
3 |
1811- |
|
GVZ |
(B) M8X16 FLANGE |
| 335 |
I1-09661 026-0 |
|
CONNECTOR; MODULATOR |
4 |
1811- |
|
GVZ |
(B) DIN12X2 & PT3/8 DOUBLE ELBOW |
| 009 |
I8-98346 869-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
1811- |
|
GVZ |
(C) THREAD R1/4 SENSOR AIR METER |
| 043 |
I0-28650 825-0 |
|
BOLT; STAY,AIR TANK,MAIN |
4 |
1811- |
|
ALL |
M8X25 FLANGE |
| 005 |
I1-09660 957-0 |
|
UNION; AIR TANK |
1 |
1811- |
|
ALL |
(C) DIN8 & R3/8 ELBOW |
| 126 |
I1-09661 234-0 |
|
CONNECTOR; ELBOW |
1 |
1811- |
|
ALL |
(B) DIN6 & R3/8 ELBOW |
| 001 |
I8-98327 442-0 |
|
TANK ASM; AIR |
1 |
1707- |
|
FVZ |
(A) |
| 046 |
I0-91110 508-0 |
|
NUT; U-BOLT |
8 |
1811- |
|
GVZ |
(A) M8 |
| 178 |
I8-98150 355-0 |
|
CLIP; HOSE |
1 |
1811- |
|
ALL |
(A) ID=21 |
| 102 |
I8-98311 986-0 |
|
BRACKET; MODULATOR |
1 |
1811- |
|
GVZ |
(B) |
