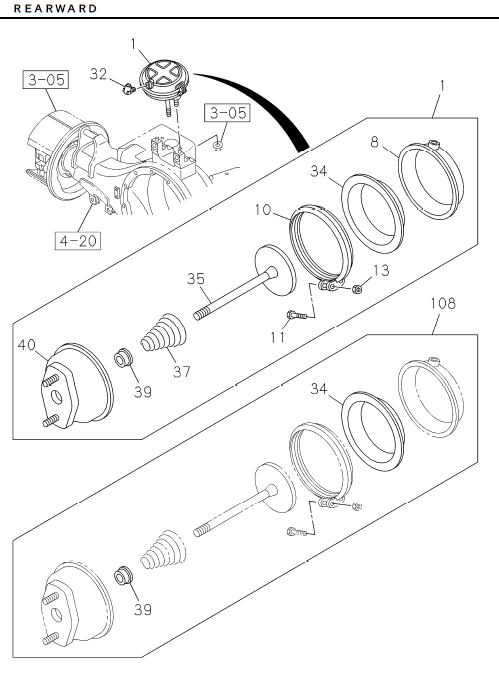

3-41 | REAR BRAKE POWER CHAMBER
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 010 | I1-48269 150-0 | RING; CLAMP,SPR CHAMBER | 4 | 1811- | ALL | |||
| 001 | I8-98340 113-0 | CHAMBER ASM; SPRING | 1 | 1811- | ALL | REARWARD | ||
| 032 | I1-09660 959-0 | CONNECTOR; SPR CHAMBER | 6 | 1811- | ALL | DIN12 & R3/8 ELBOW | ||
| 008 | I8-98322 158-0 | SHELL; CYL,SPR CHAMBER | 2 | 1811- | ALL | |||
| 034 | I8-98322 154-0 | DIAPHRAGM | 4 | 1811- | ALL | |||
| 035 | I8-98322 152-0 | PLATE; ROD END,SPR CHAMBER | 2 | 1811- | ALL | FORWARD | ||
| 001 | I8-98340 112-0 | CHAMBER ASM; SPRING | 1 | 1811- | ALL | REARWARD | ||
| 118 | I8-98322 156-0 | CHAMBER; PIGGY BACK | 2 | 1811- | ALL | |||
| 001 | I8-98340 104-0 | CHAMBER ASM; SPRING | 1 | 1811- | ALL | FORWARD | ||
| 039 | I8-98322 146-0 | COVER; ROD & PLATE | 4 | 1811- | ALL | |||
| 013 | I1-48269 147-0 | NUT; CLAMP RING | 8 | 1811- | ALL | |||
| 040 | I8-98322 144-0 | COVER ASM; LWR,SPR CHAMBER | 1 | 1811- | ALL | FORWARD | ||
| 040 | I8-98322 141-0 | COVER ASM; LWR,SPR CHAMBER | 2 | 1811- | ALL | REARWARD | ||
| 037 | I8-98322 147-0 | SPRING; LWR,SPR CHAMBER | 4 | 1811- | ALL | |||
| 040 | I8-98322 145-0 | COVER ASM; LWR,SPR CHAMBER | 1 | 1811- | ALL | FORWARD | ||
| 011 | I1-48269 146-0 | BOLT; CLAMP RING | 8 | 1811- | ALL | |||
| 035 | I8-98322 149-0 | PLATE; ROD END,SPR CHAMBER | 2 | 1811- | ALL | REARWARD | ||
| 001 | I8-98340 103-0 | CHAMBER ASM; SPRING | 1 | 1811- | ALL | FORWARD | ||
| 108 | I8-98322 138-0 | REPAIR KIT; SPR CHAMBER | 4 | 1811- | ALL |
