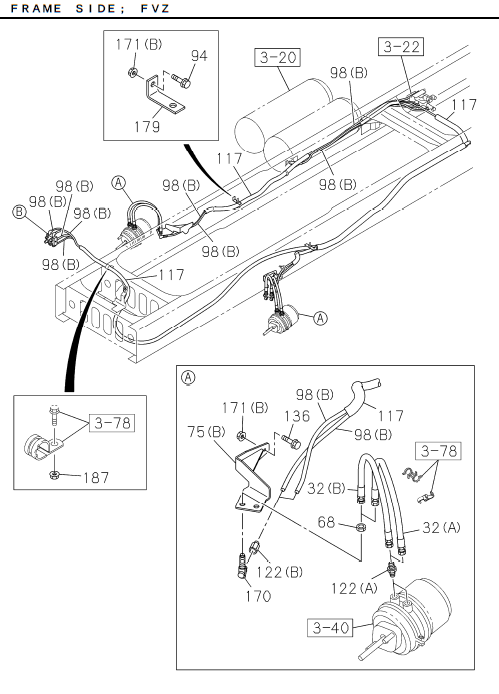

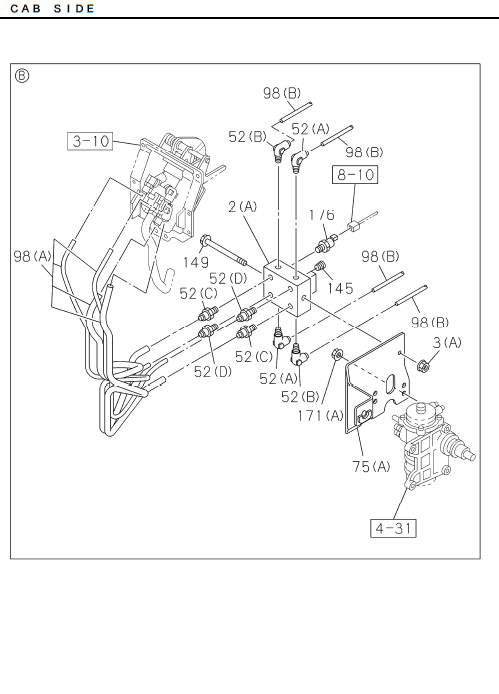

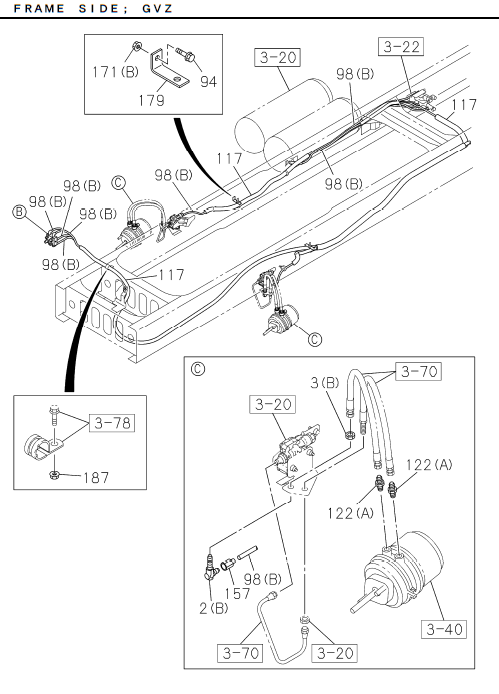

3-75 | BRAKE PIPING; AIR,FRONT
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-98240 224-0 | HOSE; FLEX,FRT | 2 | 1707- | FVZ | (B) L=560 | ||
| 052 | I1-09660 956-0 | CONNECTOR; NYLON TUBE | 2 | 1811- | ALL | (B) DIN8 & R1/4 ELBOW | ||
| 075 | I8-98315 645-0 | BRACKET; UNION | 1 | 1707- | FVZ | (B) | ||
| 068 | I0-91111 516-0 | NUT; UNION | 4 | 1707- | FVZ | M16 | ||
| 094 | I0-28650 830-0 | BOLT; BRKT | 1 | 1811- | ALL | M8X30 FLANGE | ||
| 117 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 1811- | ALL | ID=25 | ||
| 122 | I1-09650 179-1 | CONNECTOR; FLEX HOSE | 4 | 1811- | ALL | (A) M16 & PT3/8 STRAIGHT | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 1811- | ALL | (A) M10 FLANGE | ||
| 003 | I0-91111 516-0 | NUT; PIPE UNION | 2 | 1811- | GVZ | (B) M16 | ||
| 002 | I0-92135 210-0 | UNION; AIR PIPE | 2 | 1811- | GVZ | (B) M16 ELBOW | ||
| 117 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1811- | ALL | ID=13 | ||
| 052 | I1-09660 967-0 | CONNECTOR; NYLON TUBE | 2 | 1811- | ALL | (D) DIN12 & R1/4 STRAIGHT | ||
| 003 | I0-91180 108-0 | NUT; PIPE UNION | 1 | 1811- | ALL | (A) M8 FLANGE | ||
| 157 | I1-09660 876-0 | CONNECTOR; ADAPTER | 2 | 1811- | GVZ | DIN12 & M16 STRAIGHT | ||
| 179 | I1-47477 716-1 | BRACKET; CLIP | 1 | 1811- | ALL | L=60 H=30 | ||
| 052 | I1-09660 958-0 | CONNECTOR; NYLON TUBE | 2 | 1811- | ALL | (A) DIN12 & R1/4 ELBOW | ||
| 149 | I0-28050 800-0 | BOLT; UNION | 1 | 1811- | ALL | M8X100 FLANGE | ||
| 052 | I1-09660 963-0 | CONNECTOR; NYLON TUBE | 2 | 1811- | ALL | (C) DIN8 R1/4 STRAIGHT | ||
| 098 | I1-87411 013-0 | TUBE; NYLON | AR | 1811- | ALL | (B) OD=12 | ||
| 098 | I1-87411 012-0 | TUBE; NYLON | AR | 1811- | ALL | (B) OD=12 | ||
| 075 | I8-98315 646-0 | BRACKET; UNION | 1 | 1707- | FVZ | (B) | ||
| 170 | I0-92135 210-0 | UNION; FLARE | 4 | 1707- | FVZ | M16 ELBOW | ||
| 002 | I8-98057 394-1 | UNION; AIR PIPE | 1 | 1811- | ALL | (A) | ||
| 145 | I9-99204 513-0 | PLUG | 3 | 1811- | ALL | PT1/4 | ||
| 187 | I0-91180 108-0 | NUT; CLIP | 1 | 1811- | ALL | M8 FLANGE | ||
| 171 | I0-91180 108-0 | NUT; BRACKET | 1 | 1811- | ALL | (B) M8 FLANGE | ||
| 136 | I0-28650 830-0 | BOLT; CONNECTOR | 4 | 1707- | FVZ | M8X30 FLANGE | ||
| 122 | I1-09660 876-0 | CONNECTOR; FLEX HOSE | 4 | 1707- | FVZ | (B) DIN12 & M16 STRAIGHT | ||
| 176 | I8-98010 857-0 | SWITCH; AIR PRESS | 1 | 1811- | ALL | STAMP 0.3 | ||
| 075 | I8-98340 188-0 | BRACKET; UNION | 1 | 1811- | ALL | (A) | ||
| 032 | I8-98346 015-0 | HOSE; FLEX,FRT | 2 | 1707- | FVZ | (A) L=560 | ||
| 098 | I8-98311 116-0 | TUBE; NYLON | 1 | 1811- | ALL | (A) |
