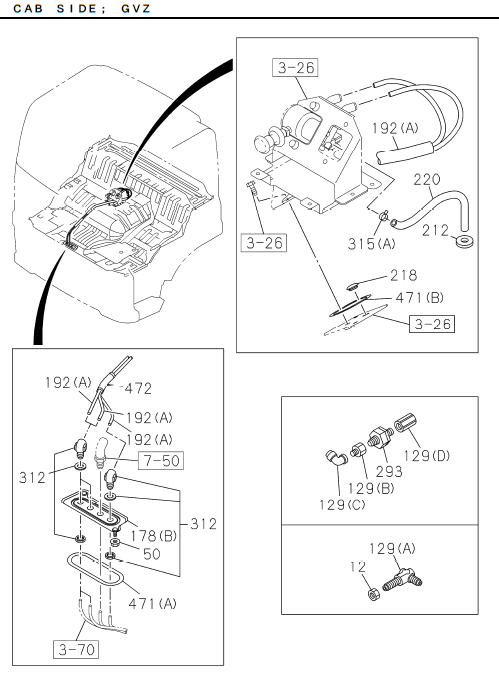

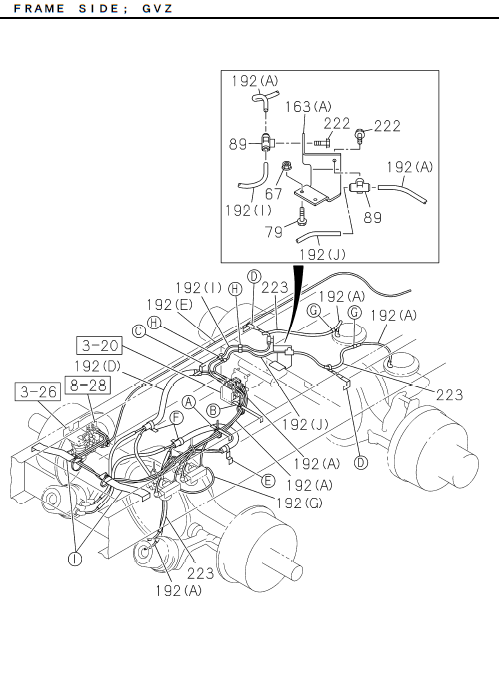

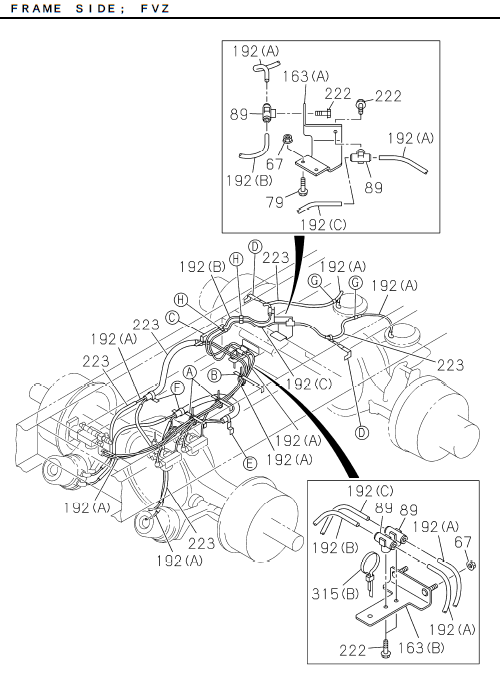

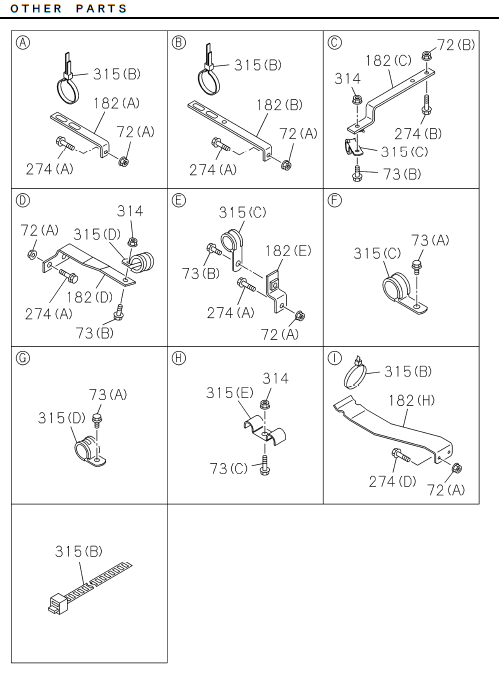

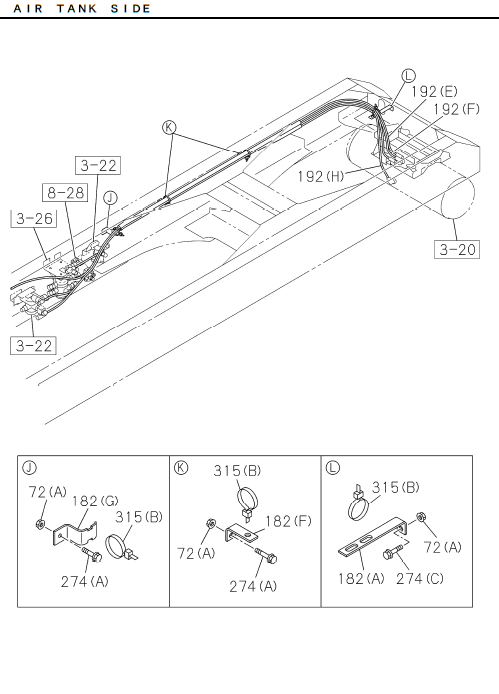

3-77 | BRAKE PIPING; AIR,REAR
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 178 | I8-98017 054-1 | BRACKET; UNION | 1 | 1707- | FVZ | (A) | ||
| 315 | I8-98082 035-0 | CLIP | 4 | 1811- | ALL | (D) ID=17 L=21 | ||
| 192 | I8-98484 356-A | TUBE; NYLON | 1 | 1811- | GVZ | (E) | ||
| 073 | I0-28650 820-0 | BOLT; CLIP | 3 | 1811- | ALL | (B) M8X20 FLANGE | ||
| 182 | I1-47477 716-1 | BRACKET; TUBE CLIP | 2 | 1811- | GVZ | (F) | ||
| 129 | I1-09660 882-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVZ | (D) M16 & RC3/8 STRAIGHT | ||
| 192 | I8-98483 775-A | TUBE; NYLON | 1 | 1811- | GVZ | (H) | ||
| 192 | I8-98348 577-0 | TUBE; NYLON | 1 | 1707- | FVZ | (C) | ||
| 218 | I9-09956 226-A | GROMMET; VINYL HOSE | 1 | 1811- | ALL | OD=22 | ||
| 192 | I8-98483 790-A | TUBE; NYLON | 1 | 1811- | GVZ | (F) | ||
| 182 | I8-98315 518-0 | BRACKET; TUBE CLIP | 1 | 1811- | ALL | (E) | ||
| 312 | I8-97611 963-1 | CONNECTOR; SUPPLY | 2 | 1707- | ALL | DIN8X2 ELBOW | ||
| 274 | I0-28650 825-0 | BOLT; BRKT | 1 | 1811- | GVZ | (C) M8X25 FLANGE | ||
| 212 | I9-61166 007-0 | GROMMET; AIR PIPE | 1 | 1811- | ALL | OD=24 | ||
| 182 | I1-47477 629-2 | BRACKET; TUBE CLIP | 2 | 1811- | ALL | (A) | ||
| 315 | I1-09704 102-0 | CLIP | 1 | 1811- | ALL | (A) ID=14 | ||
| 079 | I0-28651 030-0 | BOLT; HOSE BRKT | 2 | 1811- | ALL | M10X30 FLANGE | ||
| 067 | I0-91180 110-0 | NUT; HOSE BRKT | 4 | 1707- | ALL | M10 FLANGE | ||
| 223 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1811- | ALL | ID=13 | ||
| 192 | I8-98346 347-0 | TUBE; NYLON | 1 | 1811- | GVZ | (D) | ||
| 182 | I8-98325 651-0 | BRACKET; TUBE CLIP | 1 | 1811- | ALL | (D) | ||
| 182 | I8-98348 574-0 | BRACKET; TUBE CLIP | 1 | 1811- | ALL | (C) | ||
| 050 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 1811- | ALL | M8 FLANGE | ||
| 192 | I8-98483 813-1 | TUBE; NYLON | 1 | 1811- | GVZ | (G) | ||
| 192 | I1-87411 012-0 | TUBE; NYLON | AR | 1811- | ALL | (A) OD=12 | ||
| 222 | I0-28050 816-0 | BOLT; CONNECTOR | 2 | 1811- | ALL | M8X16 FLANGE | ||
| 192 | I8-98348 584-0 | TUBE; NYLON | 1 | 1811- | GVZ | (I) | ||
| 472 | I8-98067 708-0 | TUBE; SPUTTER | 1 | 1811- | ALL | |||
| 274 | I0-28650 840-0 | BOLT; BRKT | 8 | 1707- | ALL | (A) M8X40 FLANGE | ||
| 163 | I8-98348 573-0 | BRACKET; FLEX HOSE | 1 | 1811- | ALL | (A) | ||
| 073 | I0-28650 830-0 | BOLT; CLIP | 3 | 1811- | ALL | (C) M8X30 FLANGE | ||
| 163 | I8-98348 549-0 | BRACKET; FLEX HOSE | 1 | 1707- | FVZ | (B) | ||
| 129 | I0-92135 010-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVZ | (A) M16 ELBOW | ||
| 471 | I1-79738 794-1 | SEAL; BRKT | 1 | 1811- | ALL | (A) | ||
| 315 | I1-09707 183-0 | CLIP | AR | 1811- | ALL | (B) L=350 | ||
| 223 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 1811- | ALL | ID=10 | ||
| 072 | I0-91180 108-0 | NUT; BRKT | 8 | 1707- | ALL | (A) M8 FLANGE | ||
| 182 | I1-47477 646-3 | BRACKET; TUBE CLIP | 1 | 1811- | ALL | (B) | ||
| 182 | I8-98325 650-0 | BRACKET; TUBE CLIP | 1 | 1811- | ALL | (D) | ||
| 073 | I0-28050 812-A | BOLT; CLIP | 4 | 1811- | ALL | (A) M8X12 FLANGE | ||
| 223 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 1811- | ALL | ID=25 | ||
| 274 | I0-28651 030-0 | BOLT; BRKT | 2 | 1811- | ALL | (B) M10X30 FLANGE | ||
| 192 | I1-87411 011-0 | TUBE; NYLON | AR | 1811- | ALL | (A) OD=12 | ||
| 192 | I8-98348 585-0 | TUBE; NYLON | 1 | 1811- | GVZ | (J) | ||
| 178 | I8-98017 056-0 | BRACKET; UNION | 1 | 1811- | GVZ | (B) | ||
| 192 | I1-87411 007-0 | TUBE; NYLON | AR | 1811- | ALL | (A) OD=8 | ||
| 129 | I8-97633 756-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVZ | (C) | ||
| 223 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 1811- | ALL | ID=32 | ||
| 129 | I8-97633 768-0 | CONNECTOR; NYLON TUBE | 1 | 1811- | GVZ | (B) | ||
| 182 | I8-98138 237-0 | BRACKET; TUBE CLIP | 1 | 1811- | GVZ | (G) | ||
| 012 | I0-91111 516-0 | NUT; CONNECTOR | 1 | 1811- | GVZ | M16 | ||
| 072 | I0-91180 110-0 | NUT; BRKT | 2 | 1811- | ALL | (B) M10 FLANGE | ||
| 192 | I1-87411 013-0 | TUBE; NYLON | AR | 1811- | ALL | (A) OD=12 | ||
| 315 | I1-09700 689-0 | CLIP | 2 | 1811- | ALL | (E) ID=13 & 13 L=21.5 & 21.5 | ||
| 192 | I1-87411 008-0 | TUBE; NYLON | AR | 1811- | ALL | (A) OD=8 | ||
| 220 | I1-09360 320-0 | HOSE; VINYL,EXH,PARKING BRK VLV | 1 | 1811- | ALL | L=295 | ||
| 274 | I0-28650 835-0 | BOLT; BRKT | 4 | 1811- | GVZ | (D) M8X35 FLANGE | ||
| 293 | I1-48410 479-1 | VALVE; CHECK | 1 | 1811- | GVZ | R3/8 & M16 STRAIGHT | ||
| 192 | I1-87411 006-0 | TUBE; NYLON | AR | 1811- | ALL | (A) OD=8 | ||
| 192 | I8-98348 576-0 | TUBE; NYLON | 1 | 1707- | FVZ | (B) | ||
| 182 | I8-98483 771-A | BRACKET; TUBE CLIP | 2 | 1811- | GVZ | (H) | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 1811- | ALL | (B) | ||
| 315 | I1-09701 261-0 | CLIP | 4 | 1811- | ALL | (C) ID=28 L=40 | ||
| 314 | I0-91180 108-0 | NUT; CLIP | 5 | 1811- | ALL | M8 FLANGE | ||
| 089 | I1-09661 128-0 | CONNECTOR; NYLON TUBE | 2 | 1811- | ALL | DIN7.5X2 & M8 2WAY |
