| 022 |
I8-98365 359-0 |
|
RUBBER; CUSHION,CENTER BRG,1ST |
1 |
1707- |
|
WB7100 |
|
| 022 |
I8-98365 359-0 |
|
RUBBER; CUSHION,CENTER BRG,1ST |
1 |
1707- |
|
WB7100 |
|
| 104 |
I1-09600 049-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
ALL |
(B) |
| 225 |
I1-37241 124-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
1707- |
|
ALL |
|
| 014 |
I1-37319 004-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
ALL |
(B) |
| 057 |
I0-91510 612-0 |
|
WASHER; LK,YOKE |
8 |
1707- |
|
ALL |
ID=12.2 |
| 024 |
I8-98365 366-0 |
|
RETAINER; CENTER BRG,1ST |
1 |
1707- |
|
WB7100 |
|
| 020 |
I8-98365 358-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 078 |
I1-09042 030-0 |
|
BOLT; HOLDER SET,CENTER BRG,1ST PROP |
2 |
1707- |
|
WB7100 |
M16X45 |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB5400 |
(A) |
| 024 |
I8-98365 366-0 |
|
RETAINER; CENTER BRG,1ST |
1 |
1707- |
|
WB7100 |
|
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB4900 |
(A) |
| 046 |
I8-98365 362-0 |
|
FLANGE; SPLINED,PROP SHAFT,1ST |
1 |
1707- |
|
WB7100 |
|
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB5400 |
(A) |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB4900 |
(A) |
| 010 |
I8-98036 382-0 |
|
BOLT; UJT |
4 |
1707- |
|
ALL |
M12X45 |
| 046 |
I8-98365 362-0 |
|
FLANGE; SPLINED,PROP SHAFT,1ST |
1 |
1707- |
|
WB7100 |
|
| 019 |
I8-98365 355-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4900 |
(A) T=2.25 |
| 019 |
I8-98365 355-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB5400 |
(A) T=2.25 |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB4900 |
(A) |
| 093 |
I8-98049 689-0 |
|
NUT; HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
M16 SLOTTED |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB5400 |
(A) |
| 074 |
I1-09000 645-0 |
|
BOLT; YOKE,TRANS |
8 |
1707- |
|
ALL |
M14X50 |
| 225 |
I1-37241 140-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 092 |
I8-98344 500-0 |
|
WASHER; LK,HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
|
| 049 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB5400 |
(A) |
| 008 |
I1-37211 084-0 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB7100 |
(B) |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB4900 |
(A) |
| 058 |
I8-98365 364-0 |
|
FLANGE; SPLINED |
1 |
1707- |
|
WB7100 |
(B) |
| 009 |
I1-37300 112-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB7100 |
(C) |
| 058 |
I1-37245 317-0 |
|
FLANGE; SPLINED |
1 |
1707- |
|
ALL |
(A) L=265 |
| 169 |
I8-98036 382-0 |
|
BOLT; YOKE,SLEEVE |
4 |
1707- |
|
ALL |
M12X45 |
| 015 |
I6-37300 100-0 |
|
UNIVERSAL CENTER |
1 |
1707- |
|
ALL |
(IADG) |
| 096 |
I8-98036 382-0 |
|
BOLT; PROP SHAFT |
8 |
1707- |
|
ALL |
M12X45 |
| 081 |
I0-81124 025-0 |
|
PIN; SPLIT,HOLDER SET, CENTER BRG |
2 |
1707- |
|
WB7100 |
OD=3.7 L=25 |
| 019 |
I8-98365 355-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB5400 |
(A) T=2.25 |
| 001 |
I1-37124 587-1 |
|
SHAFT; PROP |
1 |
1910- |
|
WB5400 |
(A) |
| 015 |
I1-37300 100-1 |
|
UNIVERSAL CENTER |
1 |
1707- |
|
ALL |
|
| 071 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
1707- |
|
ALL |
M14 FLANGE |
| 172 |
I8-98337 083-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(A) |
| 001 |
I8-98384 038-0 |
|
SHAFT; PROP |
1 |
1707-1909 |
|
WB5400 |
(A) |
| 011 |
I0-91510 612-0 |
|
WASHER; LK,UNIVERSAL,PROP SHAFT |
4 |
1707- |
|
ALL |
ID=12.2 |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB4900 |
(A) |
| 001 |
I8-97509 458-0 |
|
SHAFT; PROP |
1 |
1811- |
|
WB4600 |
(A) |
| 009 |
I1-37300 112-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB7100 |
(C) |
| 049 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 025 |
I1-09380 006-0 |
|
NIPPLE; GREASE,CENTER BRG |
1 |
1707- |
|
WB7100 |
MT6 STRAIGHT |
| 001 |
I8-97509 458-0 |
|
SHAFT; PROP |
1 |
1811- |
|
WB4600 |
(A) |
| 172 |
I8-98337 084-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(B) |
| 106 |
I0-90301 410-0 |
|
NIPPLE; GREASE,YOKE,PROP SHAFT |
2 |
1707- |
|
ALL |
PT1/8 STRAIGHT |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB4600 |
(A) |
| 009 |
I6-37300 100-0 |
|
JOURNAL ASM; PROP SHAFT |
1 |
1707- |
|
ALL |
(IADG) (B) |
| 025 |
I1-09380 006-0 |
|
NIPPLE; GREASE,CENTER BRG |
1 |
1707- |
|
WB7100 |
MT6 STRAIGHT |
| 078 |
I1-09042 030-0 |
|
BOLT; HOLDER SET,CENTER BRG,1ST PROP |
2 |
1707- |
|
WB7100 |
M16X45 |
| 001 |
I8-97509 458-0 |
|
SHAFT; PROP |
1 |
1811- |
|
WB4600 |
(A) |
| 093 |
I8-98049 689-0 |
|
NUT; HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
M16 SLOTTED |
| 128 |
I8-97603 618-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
ALL |
(B) |
| 019 |
I1-09587 103-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.2 |
| 008 |
I1-37211 084-0 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB7100 |
(B) |
| 004 |
I1-37171 129-3 |
|
SHAFT; PROP |
1 |
1707- |
|
ALL |
|
| 094 |
I0-81124 025-0 |
|
PIN; SPLIT,HOLDER SET CTR BRG |
2 |
1707- |
|
WB7100 |
OD=3.7 L=25 |
| 001 |
I8-98384 038-0 |
|
SHAFT; PROP |
1 |
1707-1909 |
|
WB5400 |
(A) |
| 081 |
I0-81124 025-0 |
|
PIN; SPLIT,HOLDER SET, CENTER BRG |
2 |
1707- |
|
WB7100 |
OD=3.7 L=25 |
| 021 |
I1-09625 622-0 |
|
SEAL; OIL,CENTER BRG |
2 |
1707- |
|
WB7100 |
OD=106 |
| 170 |
I0-91510 612-0 |
|
WASHER; LK,YOKE,SLEEVE |
4 |
1707- |
|
ALL |
ID=12.2 |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB5400 |
(A) |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB5400 |
(A) |
| 049 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 094 |
I0-81124 025-0 |
|
PIN; SPLIT,HOLDER SET CTR BRG |
2 |
1707- |
|
WB7100 |
OD=3.7 L=25 |
| 091 |
I1-09042 030-0 |
|
BOLT; HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
M16X45 |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB4600 |
(A) |
| 021 |
I1-09625 622-0 |
|
SEAL; OIL,CENTER BRG |
2 |
1707- |
|
WB7100 |
OD=106 |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB5400 |
(A) T=2.2 |
| 001 |
I8-98384 039-0 |
|
SHAFT; PROP |
1 |
1707-1909 |
|
WB4900 |
(A) POWER TAKE OFF-FLYWHEEL |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB4600 |
(A) |
| 009 |
I1-37300 100-1 |
|
JOURNAL ASM; PROP SHAFT |
1 |
1707- |
|
ALL |
(B) |
| 017 |
I0-90301 510-0 |
|
NIPPLE; GREASE,PROP SHAFT |
2 |
1707- |
|
ALL |
PT1/8 ELBOW 67.5 DEGREES |
| 225 |
I1-37241 140-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 001 |
I8-98384 045-0 |
|
SHAFT; PROP |
1 |
1707-1909 |
|
WB7100 |
(D) |
| 058 |
I1-37245 317-0 |
|
FLANGE; SPLINED |
1 |
1707- |
|
ALL |
(A) L=265 |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB5400 |
(A) T=2.2 |
| 058 |
I1-37245 317-0 |
|
FLANGE; SPLINED |
1 |
1707- |
|
ALL |
(A) L=265 |
| 128 |
I1-37247 020-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB7100 |
(C) |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4600 |
(A) T=2.2 |
| 128 |
I1-37247 020-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB7100 |
(C) |
| 001 |
I1-37125 399-0 |
|
SHAFT; PROP |
1 |
1910- |
|
WB7100 |
(D) |
| 019 |
I8-98365 356-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.25 |
| 017 |
I0-90301 510-0 |
|
NIPPLE; GREASE,PROP SHAFT |
2 |
1707- |
|
ALL |
PT1/8 ELBOW 67.5 DEGREES |
| 172 |
I8-98365 567-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(C) |
| 009 |
I6-37300 100-0 |
|
JOURNAL ASM; PROP SHAFT |
1 |
1707- |
|
ALL |
(IADG) (B) |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB4600 |
(A) |
| 009 |
I6-37300 100-0 |
|
JOURNAL ASM; PROP SHAFT |
1 |
1707- |
|
ALL |
(IADG) (B) |
| 225 |
I1-37241 124-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
1707- |
|
ALL |
|
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB5400 |
(A) |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB4600 |
(A) |
| 078 |
I1-09042 030-0 |
|
BOLT; HOLDER SET,CENTER BRG,1ST PROP |
2 |
1707- |
|
WB7100 |
M16X45 |
| 051 |
I1-09449 040-0 |
|
NUT; FLANGE,SPLINED |
1 |
1707- |
|
WB7100 |
M45 FLANGE |
| 023 |
I8-98365 360-0 |
|
BEARING; CENTER,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 046 |
I8-98365 362-0 |
|
FLANGE; SPLINED,PROP SHAFT,1ST |
1 |
1707- |
|
WB7100 |
|
| 051 |
I1-09449 040-0 |
|
NUT; FLANGE,SPLINED |
1 |
1707- |
|
WB7100 |
M45 FLANGE |
| 019 |
I8-98365 355-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4900 |
(A) T=2.25 |
| 093 |
I8-98049 689-0 |
|
NUT; HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
M16 SLOTTED |
| 092 |
I8-98344 500-0 |
|
WASHER; LK,HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
|
| 004 |
I1-37171 129-3 |
|
SHAFT; PROP |
1 |
1707- |
|
ALL |
|
| 025 |
I1-09380 006-0 |
|
NIPPLE; GREASE,CENTER BRG |
1 |
1707- |
|
WB7100 |
MT6 STRAIGHT |
| 071 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
1707- |
|
ALL |
M14 FLANGE |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB4900 |
(A) |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB4900 |
(A) |
| 092 |
I8-98344 500-0 |
|
WASHER; LK,HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
|
| 001 |
I8-98384 038-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB5400 |
(A) |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB4900 |
(A) |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4900 |
(A) T=2.2 |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4900 |
(A) T=2.2 |
| 106 |
I0-90301 410-0 |
|
NIPPLE; GREASE,YOKE,PROP SHAFT |
2 |
1707- |
|
ALL |
PT1/8 STRAIGHT |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB4900 |
(A) |
| 080 |
I8-98049 689-0 |
|
NUT; HOLDER SET,CENTER BRG,1ST PROP |
2 |
1707- |
|
WB7100 |
M16 SLOTTED |
| 001 |
I8-98384 039-0 |
|
SHAFT; PROP |
1 |
1707-1909 |
|
WB4900 |
(A) POWER TAKE OFF-FLYWHEEL |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB5400 |
(A) |
| 004 |
I1-37171 129-3 |
|
SHAFT; PROP |
1 |
1707- |
|
ALL |
|
| 019 |
I8-98365 355-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB5400 |
(A) T=2.25 |
| 008 |
I1-37211 084-0 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB7100 |
(B) |
| 022 |
I8-98365 359-0 |
|
RUBBER; CUSHION,CENTER BRG,1ST |
1 |
1707- |
|
WB7100 |
|
| 001 |
I1-37125 399-0 |
|
SHAFT; PROP |
1 |
1910- |
|
WB7100 |
(D) |
| 019 |
I8-98365 356-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.25 |
| 001 |
I8-98384 044-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(C) |
| 001 |
I8-98365 318-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(B) |
| 056 |
I8-97365 444-0 |
|
NUT; YOKE |
8 |
1707- |
|
ALL |
M14 FLANGE |
| 128 |
I8-97603 618-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
ALL |
(B) |
| 071 |
I8-97365 444-0 |
|
NUT; YOKE |
4 |
1707- |
|
ALL |
M14 FLANGE |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB4900 |
(A) |
| 001 |
I1-37125 353-1 |
|
SHAFT; PROP |
1 |
1910- |
|
WB4900 |
(A) POWER TAKE OFF-FLYWHEEL |
| 014 |
I1-37319 004-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
ALL |
(B) |
| 023 |
I8-98365 360-0 |
|
BEARING; CENTER,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 056 |
I8-97365 444-0 |
|
NUT; YOKE |
8 |
1707- |
|
ALL |
M14 FLANGE |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB5400 |
(A) |
| 170 |
I0-91510 612-0 |
|
WASHER; LK,YOKE,SLEEVE |
4 |
1707- |
|
ALL |
ID=12.2 |
| 014 |
I1-37249 133-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB7100 |
(C) |
| 173 |
I0-28651 430-0 |
|
BOLT; BRKT |
4 |
1707- |
|
WB7100 |
M14X30 FLANGE |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB4600 |
(A) |
| 001 |
I8-98384 044-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(C) |
| 177 |
I0-91180 214-0 |
|
NUT |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 128 |
I1-37247 019-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB4600 |
(A) |
| 106 |
I0-90301 410-0 |
|
NIPPLE; GREASE,YOKE,PROP SHAFT |
2 |
1707- |
|
ALL |
PT1/8 STRAIGHT |
| 010 |
I8-98036 382-0 |
|
BOLT; UJT |
4 |
1707- |
|
ALL |
M12X45 |
| 019 |
I8-98365 356-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.25 |
| 057 |
I0-91510 612-0 |
|
WASHER; LK,YOKE |
8 |
1707- |
|
ALL |
ID=12.2 |
| 225 |
I1-37241 124-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
1707- |
|
ALL |
|
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB5400 |
(A) |
| 019 |
I1-09587 107-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.17 |
| 014 |
I1-37249 133-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB7100 |
(C) |
| 017 |
I0-90301 510-0 |
|
NIPPLE; GREASE,PROP SHAFT |
2 |
1707- |
|
ALL |
PT1/8 ELBOW 67.5 DEGREES |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB5400 |
(A) |
| 023 |
I8-98365 360-0 |
|
BEARING; CENTER,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 081 |
I0-81124 025-0 |
|
PIN; SPLIT,HOLDER SET, CENTER BRG |
2 |
1707- |
|
WB7100 |
OD=3.7 L=25 |
| 104 |
I1-09600 049-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
ALL |
(B) |
| 173 |
I0-28651 430-0 |
|
BOLT; BRKT |
4 |
1707- |
|
WB7100 |
M14X30 FLANGE |
| 019 |
I1-09587 107-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.17 |
| 080 |
I8-98049 689-0 |
|
NUT; HOLDER SET,CENTER BRG,1ST PROP |
2 |
1707- |
|
WB7100 |
M16 SLOTTED |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB4900 |
(A) |
| 020 |
I8-98365 358-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB4600 |
(A) |
| 014 |
I1-37249 133-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB7100 |
(C) |
| 096 |
I8-98036 382-0 |
|
BOLT; PROP SHAFT |
8 |
1707- |
|
ALL |
M12X45 |
| 074 |
I1-09000 645-0 |
|
BOLT; YOKE,TRANS |
8 |
1707- |
|
ALL |
M14X50 |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB5400 |
(A) |
| 094 |
I0-81124 025-0 |
|
PIN; SPLIT,HOLDER SET CTR BRG |
2 |
1707- |
|
WB7100 |
OD=3.7 L=25 |
| 019 |
I1-09587 103-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.2 |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4600 |
(A) T=2.2 |
| 174 |
I0-91180 214-0 |
|
NUT; BRKT |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 128 |
I8-97603 618-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
ALL |
(B) |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB4900 |
(A) |
| 172 |
I8-98365 567-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(C) |
| 128 |
I1-37247 020-0 |
|
SEAL; SLEEVE |
1 |
1707- |
|
WB7100 |
(C) |
| 173 |
I0-28651 430-0 |
|
BOLT; BRKT |
4 |
1707- |
|
WB7100 |
M14X30 FLANGE |
| 172 |
I8-98337 083-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(A) |
| 172 |
I8-98337 084-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(B) |
| 080 |
I8-98049 689-0 |
|
NUT; HOLDER SET,CENTER BRG,1ST PROP |
2 |
1707- |
|
WB7100 |
M16 SLOTTED |
| 009 |
I1-37300 100-1 |
|
JOURNAL ASM; PROP SHAFT |
1 |
1707- |
|
ALL |
(B) |
| 172 |
I8-98365 567-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(C) |
| 051 |
I1-09449 040-0 |
|
NUT; FLANGE,SPLINED |
1 |
1707- |
|
WB7100 |
M45 FLANGE |
| 170 |
I0-91510 612-0 |
|
WASHER; LK,YOKE,SLEEVE |
4 |
1707- |
|
ALL |
ID=12.2 |
| 096 |
I8-98036 382-0 |
|
BOLT; PROP SHAFT |
8 |
1707- |
|
ALL |
M12X45 |
| 074 |
I1-09000 645-0 |
|
BOLT; YOKE,TRANS |
8 |
1707- |
|
ALL |
M14X50 |
| 169 |
I8-98036 382-0 |
|
BOLT; YOKE,SLEEVE |
4 |
1707- |
|
ALL |
M12X45 |
| 021 |
I1-09625 622-0 |
|
SEAL; OIL,CENTER BRG |
2 |
1707- |
|
WB7100 |
OD=106 |
| 015 |
I1-37300 100-1 |
|
UNIVERSAL CENTER |
1 |
1707- |
|
ALL |
|
| 024 |
I8-98365 366-0 |
|
RETAINER; CENTER BRG,1ST |
1 |
1707- |
|
WB7100 |
|
| 001 |
I8-98365 318-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(B) |
| 172 |
I8-98337 084-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(B) |
| 091 |
I1-09042 030-0 |
|
BOLT; HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
M16X45 |
| 001 |
I8-98384 045-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(D) |
| 174 |
I0-91180 214-0 |
|
NUT; BRKT |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 172 |
I8-98337 083-0 |
|
BRACKET; CENTER BRG |
1 |
1707- |
|
WB7100 |
(A) |
| 104 |
I1-09600 067-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
WB4600 |
(A) |
| 079 |
I8-98344 500-0 |
|
WASHER; PL,HOLDER SET, CENTER BRG |
2 |
1707- |
|
WB7100 |
|
| 169 |
I8-98036 382-0 |
|
BOLT; YOKE,SLEEVE |
4 |
1707- |
|
ALL |
M12X45 |
| 174 |
I0-91180 214-0 |
|
NUT; BRKT |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 015 |
I1-37300 100-1 |
|
UNIVERSAL CENTER |
1 |
1707- |
|
ALL |
|
| 058 |
I8-98365 364-0 |
|
FLANGE; SPLINED |
1 |
1707- |
|
WB7100 |
(B) |
| 177 |
I0-91180 214-0 |
|
NUT |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB5400 |
(A) T=2.2 |
| 019 |
I8-98365 355-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4900 |
(A) T=2.25 |
| 019 |
I1-09587 103-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.2 |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB4600 |
(A) |
| 079 |
I8-98344 500-0 |
|
WASHER; PL,HOLDER SET, CENTER BRG |
2 |
1707- |
|
WB7100 |
|
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB5400 |
(A) |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB4900 |
(A) |
| 009 |
I1-37300 112-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB7100 |
(C) |
| 008 |
I1-37211 079-1 |
|
YOKE; FLANGE,PROP SHAFT |
2 |
1707- |
|
WB4900 |
(A) |
| 091 |
I1-09042 030-0 |
|
BOLT; HOLDER SET,CTR BRG |
2 |
1707- |
|
WB7100 |
M16X45 |
| 001 |
I1-37124 587-1 |
|
SHAFT; PROP |
1 |
1910- |
|
WB5400 |
(A) |
| 011 |
I0-91510 612-0 |
|
WASHER; LK,UNIVERSAL,PROP SHAFT |
4 |
1707- |
|
ALL |
ID=12.2 |
| 104 |
I1-09600 049-0 |
|
PLUG; SLEEVE YOKE |
1 |
1707- |
|
ALL |
(B) |
| 001 |
I8-98384 045-0 |
|
SHAFT; PROP |
1 |
1707-1909 |
|
WB7100 |
(D) |
| 015 |
I6-37300 100-0 |
|
UNIVERSAL CENTER |
1 |
1707- |
|
ALL |
(IADG) |
| 019 |
I1-09587 107-0 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB7100 |
(B) T=2.17 |
| 011 |
I0-91510 612-0 |
|
WASHER; LK,UNIVERSAL,PROP SHAFT |
4 |
1707- |
|
ALL |
ID=12.2 |
| 010 |
I8-98036 382-0 |
|
BOLT; UJT |
4 |
1707- |
|
ALL |
M12X45 |
| 009 |
I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB5400 |
(A) |
| 001 |
I8-98365 318-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(B) |
| 020 |
I8-98365 358-0 |
|
BEARING ASM; CTR,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 019 |
I1-09587 102-1 |
|
RING; SNAP,JOURNAL,PROP SHAFT,1ST |
8 |
1707- |
|
WB4900 |
(A) T=2.2 |
| 058 |
I8-98365 364-0 |
|
FLANGE; SPLINED |
1 |
1707- |
|
WB7100 |
(B) |
| 079 |
I8-98344 500-0 |
|
WASHER; PL,HOLDER SET, CENTER BRG |
2 |
1707- |
|
WB7100 |
|
| 057 |
I0-91510 612-0 |
|
WASHER; LK,YOKE |
8 |
1707- |
|
ALL |
ID=12.2 |
| 009 |

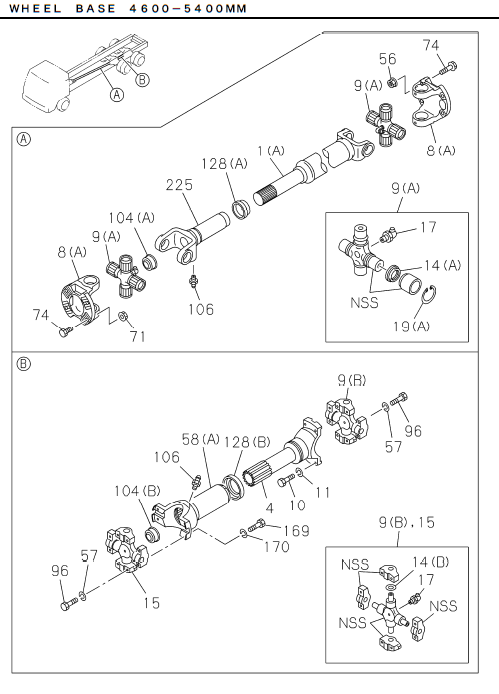

I1-37300 110-0 |
|
JOURNAL ASM; PROP SHAFT |
2 |
1707- |
|
WB5400 |
(A) |
| 001 |

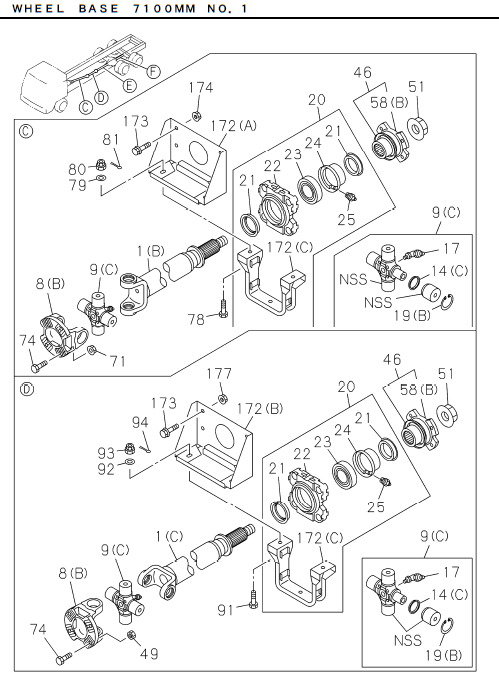

I8-98384 044-0 |
|
SHAFT; PROP |
1 |
1707- |
|
WB7100 |
(C) |
| 014 |
I1-37319 004-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
ALL |
(B) |
| 177 |
I0-91180 214-0 |
|
NUT |
4 |
1707- |
|
WB7100 |
M14 FLANGE |
| 015 |
I6-37300 100-0 |
|
UNIVERSAL CENTER |
1 |
1707- |
|
ALL |
(IADG) |
| 009 |
I1-37300 100-1 |
|
JOURNAL ASM; PROP SHAFT |
1 |
1707- |
|
ALL |
(B) |

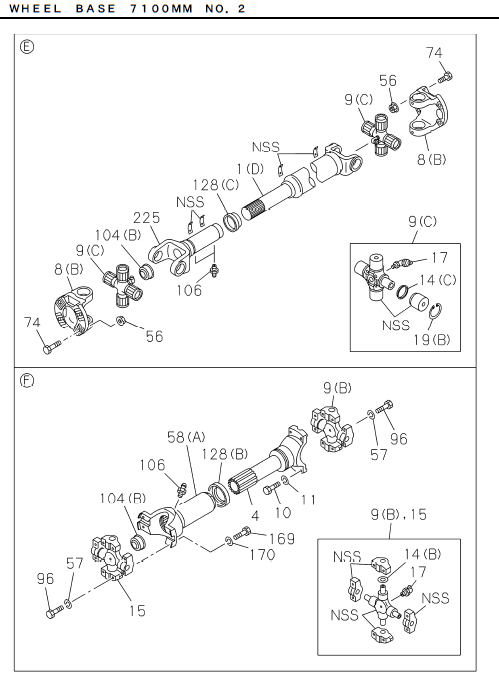

| 225 |
I1-37241 140-0 |
|
YOKE; SLEEVE,PROP SHAFT |
1 |
1707- |
|
WB7100 |
|
| 001 |
I1-37125 353-1 |
|
SHAFT; PROP |
1 |
1910- |
|
WB4900 |
(A) POWER TAKE OFF-FLYWHEEL |
| 014 |
I1-37249 131-0 |
|
COVER; DUST,SPIDER |
8 |
1707- |
|
WB4900 |
(A) |
