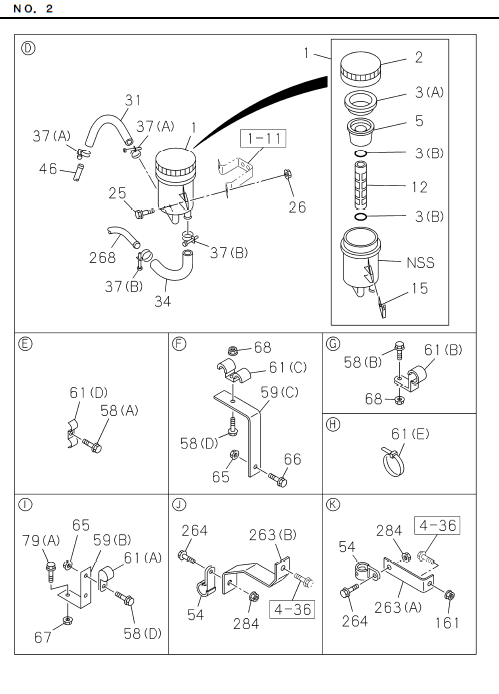

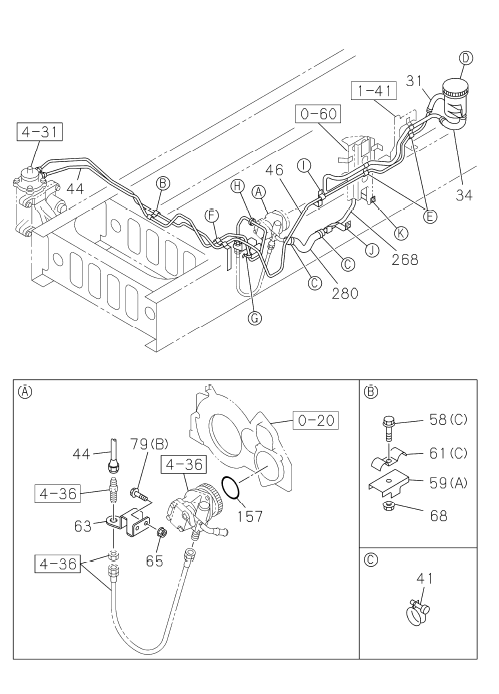

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-97948 291-0 | CAP; OIL TANK,P/S | 1 | 1811- | ALL | |||
| 059 | I8-98083 607-0 | BRACKET; CLIP,OIL PIPE | 1 | 1811- | ALL | (B) | ||
| 067 | I0-91180 108-0 | NUT; BRKT | 1 | 1811- | ALL | M8 FLANGE | ||
| 061 | I1-09700 668-0 | CLIP; OIL PIPE | 2 | 1811- | ALL | (C) ID=16 & 13 L=21.5 & 21.5 | ||
| 005 | I8-97948 979-0 | STRAINER; OIL TANK,P/S | 1 | 1811- | ALL | |||
| 058 | I0-28650 820-0 | BOLT; CLIP | 2 | 1811- | ALL | (D) M8X20 FLANGE | ||
| 280 | I8-98315 258-0 | HOSE; P/S OIL PUMP,INL | 1 | 1811- | ALL | |||
| 025 | I0-28650 825-0 | BOLT; OIL TANK BRKT | 2 | 1811- | ALL | M8X25 FLANGE | ||
| 061 | I1-09700 606-0 | CLIP; OIL PIPE | 1 | 1811- | ALL | (B) ID=15 H=24 L=20 | ||
| 068 | I0-91180 108-0 | NUT; CLIP,OIL PIPE | 3 | 1811- | ALL | M8 FLANGE | ||
| 034 | I8-98308 520-0 | HOSE; P/S OIL TANK,OUTLET | 1 | 1811- | ALL | |||
| 012 | I8-97948 300-0 | FILTER; MICROBON,OIL TANK, P/S | 1 | 1811- | ALL | |||
| 061 | I1-09700 806-1 | CLIP; OIL PIPE | 2 | 1811- | ALL | (D) ID=19 & 16 L=25 & 20 | ||
| 157 | I1-09623 467-0 | GASKET; P/S PUMP | 1 | 1811- | ALL | |||
| 054 | I0-95235 836-0 | CLIP; OIL PIPE | 2 | 1811- | ALL | ID=19 L=20 | ||
| 041 | I9-09915 005-1 | CLIP; HOSE,P/S | 2 | 1811- | ALL | ID=32 | ||
| 037 | I1-09704 082-0 | CLIP; HOSE,P/S | 2 | 1811- | ALL | (A) ID=26 | ||
| 015 | I8-97948 297-0 | PLATE; FILTER,OIL TANK | 2 | 1811- | ALL | |||
| 058 | I0-28650 825-0 | BOLT; CLIP | 1 | 1811- | ALL | (B) M8X25 FLANGE | ||
| 079 | I0-28650 830-0 | BOLT; BRKT | 2 | 1811- | ALL | (B) M8X30 FLANGE | ||
| 263 | I8-98308 544-A | BRACKET; P/S PIPE | 1 | 1811- | ALL | (B) | ||
| 003 | I8-97948 298-0 | GASKET; OIL TANK,P/S | 2 | 1811- | ALL | (B) | ||
| 059 | I1-47475 427-1 | BRACKET; CLIP,OIL PIPE | 1 | 1811- | ALL | (A) | ||
| 063 | I8-98319 395-0 | BRACKET; CLIP,P/S | 1 | 1811- | ALL | |||
| 058 | I0-28650 840-0 | BOLT; CLIP | 1 | 1811- | ALL | (C) M8X40 FLANGE | ||
| 059 | I8-98319 394-0 | BRACKET; CLIP,OIL PIPE | 1 | 1811- | ALL | (C) | ||
| 061 | I0-95235 536-0 | CLIP; OIL PIPE | 1 | 1811- | ALL | (A) ID=16 L=20 | ||
| 065 | I0-91180 108-0 | NUT; BRKT | 1 | 1811- | ALL | M8 FLANGE | ||
| 161 | I0-91180 108-0 | NUT; P/S PIPE | 1 | 1811- | ALL | M8 FLANGE | ||
| 268 | I8-98308 543-A | PIPE; OIL,FLEX HOSE TO FLEX HOSE | 1 | 1811- | ALL | |||
| 284 | I0-91180 108-0 | NUT; PIPE | 2 | 1811- | ALL | M8 FLANGE | ||
| 003 | I8-97948 295-0 | GASKET; OIL TANK,P/S | 1 | 1811- | ALL | (A) | ||
| 037 | I9-09915 005-1 | CLIP; HOSE,P/S | 2 | 1811- | ALL | (B) ID=32 | ||
| 066 | I0-28650 830-0 | BOLT; BRKT,OIL PIPE | 1 | 1811- | ALL | M8X30 FLANGE | ||
| 058 | I0-28050 816-0 | BOLT; CLIP | 2 | 1811- | ALL | (A) M8X16 FLANGE | ||
| 263 | I1-82699 085-0 | BRACKET; P/S PIPE | 1 | 1811- | ALL | (A) L=95 H=25 | ||
| 264 | I0-28650 820-0 | BOLT; PIPE BRKT | 2 | 1811- | ALL | M8X20 FLANGE | ||
| 079 | I0-28650 825-0 | BOLT; BRKT | 1 | 1811- | ALL | (A) M8X25 FLANGE | ||
| 001 | I8-97948 302-2 | TANK ASM; OIL,P/S | 1 | 1811- | ALL | |||
| 061 | I5-09707 030-1 | CLIP; OIL PIPE | 1 | 1811- | ALL | (E) L=250 | ||
| 031 | I0-09814 250-0 | HOSE; P/S OIL TANK,INL | 1 | 1811- | ALL | |||
| 044 | I8-98319 392-A | PIPE; OIL,P/S UNIT TO NIPPLE | 1 | 1811- | ALL | |||
| 046 | I8-98321 363-A | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 1811- | ALL | L=3118 | ||
| 026 | I0-91180 108-0 | NUT; OIL TANK TO BRKT | 2 | 1811- | ALL | M8 FLANGE |
