5-30 | SPARE TIRE CARRIER AND COVER
GIGA

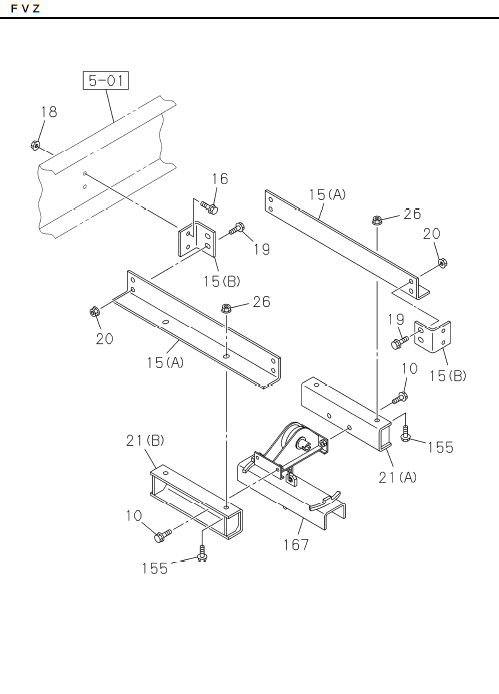

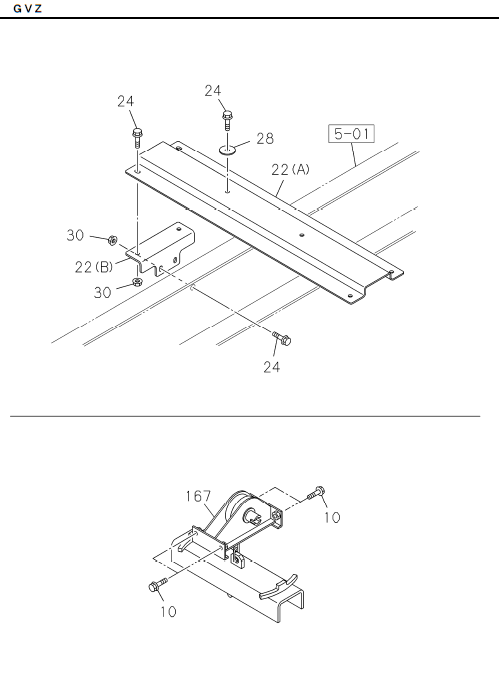

NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 024 | I0-28051 250-0 | BOLT; SPARE TIRE | 10 | 1811- | GVZ | M12X50 FLANGE | ||
| 021 | I8-98345 068-1 | BRACKET; SPARE TIRE HANGER | 1 | 1707- | FVZ | (B) | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 1707- | FVZ | M12 FLANGE | ||
| 021 | I8-98286 294-0 | BRACKET; SPARE TIRE HANGER | 1 | 1707- | FVZ | (A) | ||
| 015 | I8-98286 293-A | MEMBER; CROSS,SPARE TIRE | 2 | 1707- | FVZ | (A) | ||
| 026 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 1707- | FVZ | M12 FLANGE | ||
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 1811- | GVZ | M12 FLANGE | ||
| 022 | I8-98480 334-A | BRACKET; SPARE TIRE | 2 | 1811- | GVZ | (B) | ||
| 155 | I0-28651 240-0 | BOLT; BRKT | 4 | 1707- | FVZ | M12X40 FLANGE | ||
| 019 | I0-28651 240-0 | BOLT; C/MBR | 8 | 1707- | FVZ | M12X40 FLANGE | ||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 1707- | FVZ | M12 FLANGE | ||
| 022 | I8-98480 333-A | BRACKET; SPARE TIRE | 1 | 1811- | GVZ | (A) | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 1707- | ALL | M12X35 FLANGE | ||
| 015 | I8-98286 292-2 | MEMBER; CROSS,SPARE TIRE | 4 | 1707- | FVZ | (B) | ||
| 167 | I8-98314 445-0 | HANGER; TIRE | 1 | 1707- | ALL | |||
| 016 | I0-28651 240-0 | BOLT; MEMBER | 8 | 1707- | FVZ | M12X40 FLANGE | ||
| 028 | I0-91614 814-0 | WASHER; LK,SPARE TIRE | 2 | 1811- | GVZ | ID=15 |
