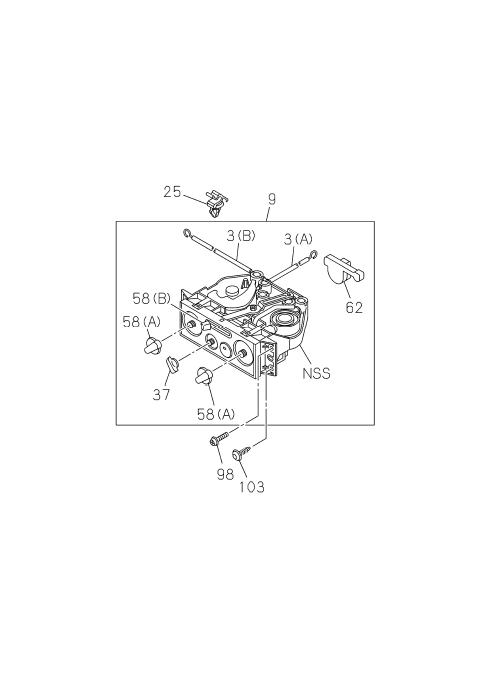

8-65 | CONTROL LEVER; HEATER AND AIR CON
GIGA
NEW GIGA FVZ GVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-98314 400-0 | LEVER ASM; HTR & A/C CONT | 1 | 1811- | ALL | |||
| 003 | I8-98373 224-0 | CABLE; HTR CONT LVR | 1 | 1811- | ALL | (B) RECIRC/FRESH | ||
| 003 | I8-97927 124-0 | CABLE; HTR CONT LVR | 1 | 1811- | ALL | (A) MODE | ||
| 103 | I8-97151 251-0 | CLIP | 1 | 1811- | ALL | DARK GRAY | ||
| 058 | I8-97926 675-0 | KNOB; LVR,HTR CONT LVR | 1 | 1811- | ALL | (B) | ||
| 025 | I1-73907 618-0 | CLIP; CABLE,CONT LEVER | 3 | 1811- | ALL | ID=4.8 | ||
| 098 | I0-72180 520-0 | SCREW; CONT PANEL | 1 | 1811- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 062 | I8-97926 676-0 | BULB; HTR CONT LVR | 1 | 1811- | ALL | |||
| 058 | I8-97926 673-0 | KNOB; LVR,HTR CONT LVR | 1 | 1811- | ALL | (A) | ||
| 037 | I8-97926 674-0 | KNOB; SW,HTR CONT LVR | 1 | 1811- | ALL |
