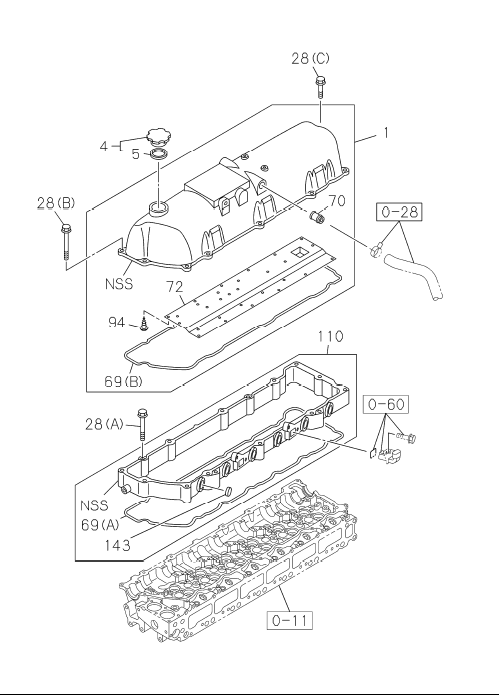

0-10 | CYLINDER HEAD COVER
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 004 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 1811- | GXZ | |||
| 070 | I8-98322 588-0 | PIPE; HD COVER | 1 | 1811- | GXZ | |||
| 028 | I0-28650 835-0 | BOLT; HD COVER | 1 | 1811- | GXZ | (B) M8X35 FLANGE | ||
| 110 | I8-98180 445-1 | COVER; CYL HEAD LWR | 1 | 1811- | GXZ | |||
| 069 | I8-98308 115-0 | GASKET; HD TO COVER | 1 | 1811- | GXZ | (B) | ||
| 143 | I1-09639 034-0 | GASKET; SLEEVE | 6 | 1811- | GXZ | OD=30 | ||
| 069 | I8-94391 380-0 | GASKET; HD TO COVER | 1 | 1811- | GXZ | (A) | ||
| 005 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 1811- | GXZ | ID=32 OD=40 | ||
| 094 | I0-35050 408-0 | SCREW; BAFFLE PLATE,CYL HD COVER | 25 | 1811- | GXZ | M4X8 | ||
| 028 | I8-97023 062-0 | BOLT; HD COVER | 11 | 1811- | GXZ | (C) M8X85 FLANGE | ||
| 001 | I8-98308 113-1 | COVER; CYL HD | 1 | 1811- | GXZ | |||
| 072 | I8-98322 587-1 | PLATE; INNER HD COVER | 1 | 1811- | GXZ | |||
| 028 | I0-28050 870-0 | BOLT; HD COVER | 4 | 1811- | GXZ | (A) M8X70 FLANGE |
