| 120 |
I8-94399 554-0 |
|
BOLT; CYL HD TO HSG |
1 |
1811- |
|
GXZ |
(A) M10X73 |
| 071 |
I0-28050 835-0 |
|
BOLT; CAM BRKT |
2 |
1811- |
|
GXZ |
M8X35 FLANGE |
| 008 |
I5-11129 006-0 |
|
CUP; SEALING,WATER JACKET |
1 |
1811- |
|
GXZ |
(B) OD=16 |

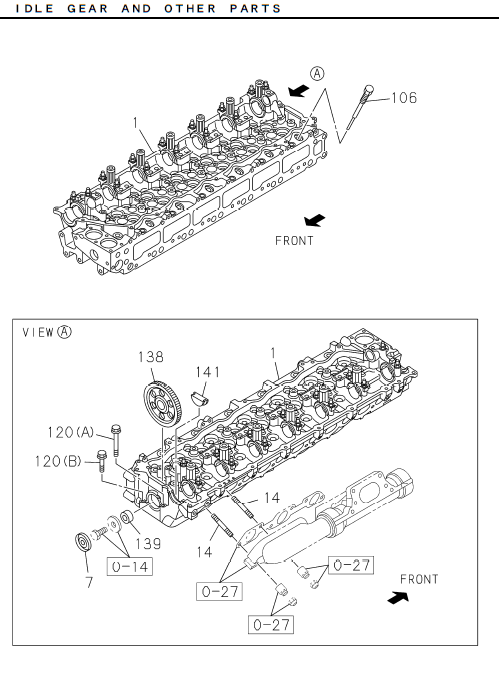

| 138 |
I8-97606 929-0 |
|
GEAR; IDLE |
1 |
1811- |
|
GXZ |
Z=41 |
| 002 |
I8-98365 703-0 |
|
GASKET; CYL HD |
1 |
1811- |
|
GXZ |
|
| 023 |
I0-91180 208-0 |
|
NUT; CAM BRKT |
14 |
1811- |
|
GXZ |
M8 FLANGE |
| 004 |
I8-98300 579-1 |
|
GUIDE; VLV |
12 |
1811- |
|
GXZ |
(B) EXHAUST L=59.5 |
| 103 |
I8-98003 416-0 |
|
PLUG; HD |
1 |
1811- |
|
GXZ |
M8X10 |
| 133 |
I0-91180 110-0 |
|
NUT; HANGER |
2 |
1811- |
|
GXZ |
M10 FLANGE |
| 014 |
I1-09302 176-0 |
|
STUD; EXH MANIF |
12 |
1811- |
|
GXZ |
M10X77 L=92 |
| 120 |
I8-94399 555-0 |
|
BOLT; CYL HD TO HSG |
1 |
1811- |
|
GXZ |
(B) M10X43 |
| 106 |
I8-94392 236-0 |
|
PLUG; GLOW PLUG HOLE |
6 |
1811- |
|
GXZ |
|
| 168 |
I8-98276 036-0 |
|
HANGER; ENG,FRT |
1 |
1811- |
|
GXZ |
|
| 058 |
I8-97604 916-0 |
|
GASKET; SLEEVE,NOZZLE HOLDER |
6 |
1811- |
|
GXZ |
ID=26.4 |
| 141 |
I8-97848 757-0 |
|
PLUG; RUBBER,CYL HD |
2 |
1811- |
|
GXZ |
|
| 139 |
I8-97186 398-1 |
|
SHAFT; IDLE GEAR |
1 |
1811- |
|
GXZ |
|

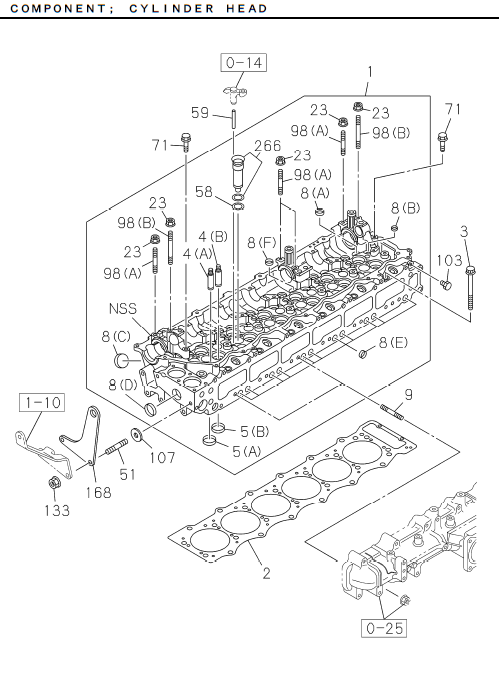

| 001 |
I8-98330 961-1 |
|
HEAD ASM; CYL |
1 |
1811- |
|
GXZ |
|
| 008 |
I1-09600 016-0 |
|
CUP; SEALING,WATER JACKET |
6 |
1811- |
|
GXZ |
(A) OD=25 |
| 008 |
I8-97209 609-0 |
|
CUP; SEALING,WATER JACKET |
12 |
1811- |
|
GXZ |
(E) OD=22 |
| 051 |
I0-44011 035-0 |
|
STUD; HANGER |
2 |
1811- |
|
GXZ |
M10X35 L=50 |
| 003 |
I8-98253 991-0 |
|
BOLT; CYL HD TO BLOCK |
26 |
1811- |
|
GXZ |
M14X135 FLANGE |
| 107 |
I8-98365 704-0 |
|
PIECE; DIST HANGER |
2 |
1811- |
|
GXZ |
|
| 004 |
I8-98271 078-0 |
|
GUIDE; VLV |
12 |
1811- |
|
GXZ |
(A) INLET L=59.5 |
| 098 |
I8-94322 513-2 |
|
STUD; CAM BRKT |
12 |
1811- |
|
GXZ |
(A) M8X41 L=66 |
| 007 |
I8-97096 826-A |
|
CUP; SEALING,CYL HEAD |
1 |
1811- |
|
GXZ |
|
| 005 |
I8-98194 571-0 |
|
SEAT; VLV INSERT |
12 |
1811- |
|
GXZ |
(B) EXHAUST |
| 098 |
I8-98061 892-0 |
|
STUD; CAM BRKT |
2 |
1811- |
|
GXZ |
(B) M8X75 L=100 |
| 008 |
I8-97096 821-0 |
|
CUP; SEALING,WATER JACKET |
1 |
1811- |
|
GXZ |
(D) OD=32 |
| 009 |
I0-41010 855-0 |
|
STUD; INL MANIF |
2 |
1811- |
|
GXZ |
M8X55 L=67 |
| 008 |
I8-94241 637-0 |
|
CUP; SEALING,WATER JACKET |
6 |
1811- |
|
GXZ |
(C) OD=40 |
| 059 |
I8-97381 603-1 |
|
GUIDE; BRIDGE |
12 |
1811- |
|
GXZ |
|
| 008 |
I9-11129 128-0 |
|
CUP; SEALING,WATER JACKET |
10 |
1811- |
|
GXZ |
(F) OD=20 |
| 005 |
I8-98270 443-0 |
|
SEAT; VLV INSERT |
12 |
1811- |
|
GXZ |
(A) INLET |
| 266 |
I8-98064 259-1 |
|
SLEEVE ASM; NOZZLE HOLDER |
6 |
1811- |
|
GXZ |
|
