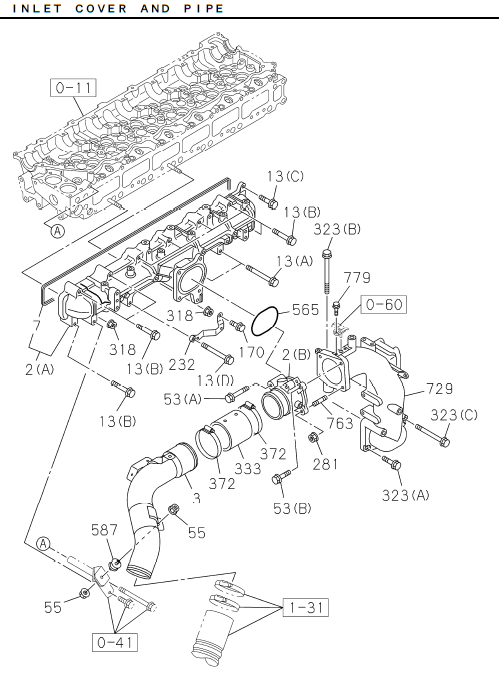

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

007	I8-98270 355-0	GASKET; INL MANIF TO HD	1	1811-	GXZ
053	I0-28050 870-0	BOLT; INL PIPE	1	1811-	GXZ	(A) M8X70 FLANGE
002	I8-98191 174-0	COVER; INL	1	1811-	GXZ	(A)
729	I8-98275 413-0	DUCT; INLET	1	1811-	GXZ
323	I0-28156 013-0	BOLT; DUCT	1	1811-	GXZ	(B) M10X130 FLANGE
013	I0-28650 825-0	BOLT; INL MANIF	1	1811-	GXZ	(C) M8X25 FLANGE
587	I8-98148 109-0	MOUNTING; INTAKE DUCT	1	1811-	GXZ
565	I8-98312 250-0	GASKET; INL MANIF	1	1811-	GXZ
003	I8-98275 650-0	DUCT; INT	1	1811-	GXZ
323	I8-97182 861-1	BOLT; DUCT	2	1811-	GXZ	(C) M8X98 FLANGE
281	I0-91180 108-0	NUT; INL COVER	2	1811-	GXZ	M8 FLANGE
055	I0-91180 108-0	NUT; INL PIPE	2	1811-	GXZ	M8 FLANGE
013	I0-28050 800-0	BOLT; INL MANIF	2	1811-	GXZ	(A) M8X100 FLANGE
053	I0-28050 830-0	BOLT; INL PIPE	1	1811-	GXZ	(B) M8X30 FLANGE
372	I1-09707 141-0	CLIP; HOSE	2	1811-	GXZ	ID=77-99
013	I0-28055 811-0	BOLT; INL MANIF	1	1811-	GXZ	(D) M8X110 FLANGE
232	I8-98276 077-1	BRACKET; INJ PIPE	1	1811-	GXZ
013	I0-28050 860-0	BOLT; INL MANIF	8	1811-	GXZ	(B) M8X60 FLANGE
333	I8-97611 306-0	HOSE; RUBBER,INL PIPE	1	1811-	GXZ	ID=80 OD=90 L=80
323	I0-28050 830-0	BOLT; DUCT	2	1811-	GXZ	(A) M8X30 FLANGE
318	I0-91180 108-0	NUT; INL MANIF	2	1811-	GXZ	M8 FLANGE
170	I0-28050 820-0	BOLT; BRKT	1	1811-	GXZ	M8X20 FLANGE
763	I0-40110 830-0	STUD	2	1811-	GXZ	M8X30 L=46
779	I8-97316 615-0	BOLT; SENSOR	2	1811-	GXZ	M4X10 W/PL WASHER
002	I8-98217 016-0	COVER; INL	1	1811-	GXZ	(B)
008	I8-98306 871-0	GASKET; INT DUCT	1	1811-	GXZ
