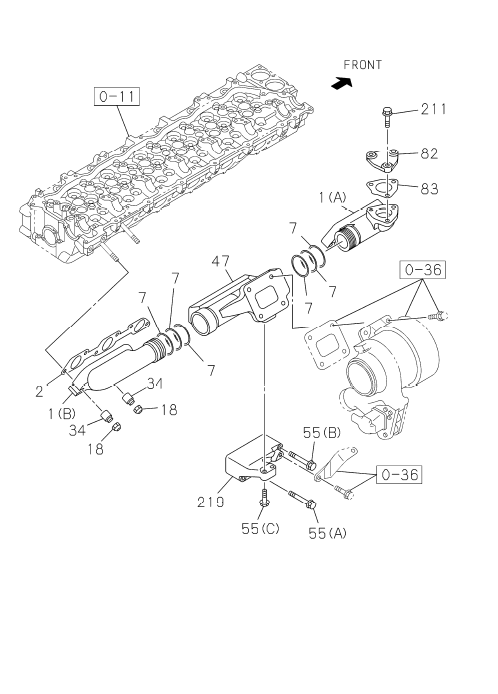

0-27 | EXHAUST MANIFOLD
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 211 | I8-98173 443-0 | BOLT; COVER | 3 | 1811- | GXZ | M10X30 FLANGE | ||
| 055 | I8-94399 669-1 | BOLT; BRKT | 2 | 1811- | GXZ | (B) M10X75 FLANGE | ||
| 001 | I8-98345 172-1 | MANIFOLD; EXHAUST | 1 | 1811- | GXZ | (A) | ||
| 034 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 12 | 1811- | GXZ | L=28 | ||
| 219 | I8-98344 992-0 | BRACKET; DUCT | 1 | 1811- | GXZ | |||
| 055 | I1-09044 073-0 | BOLT; BRKT | 1 | 1811- | GXZ | (A) M8X75 FLANGE | ||
| 002 | I8-98182 189-0 | GASKET; EXH MANIF TO HD | 2 | 1811- | GXZ | |||
| 083 | I1-16157 017-1 | GASKET; CVR,RR EXH MANIF | 1 | 1811- | GXZ | ID=55 | ||
| 047 | I8-98303 797-1 | MANIFOLD; EXH,CENTER | 1 | 1811- | GXZ | |||
| 007 | I1-14149 151-0 | RING; SEAL,EXH MANIF | 6 | 1811- | GXZ | STAMP RH | ||
| 055 | I8-98052 668-0 | BOLT; BRKT | 2 | 1811- | GXZ | (C) M10X40 FLANGE | ||
| 082 | I8-97604 884-1 | COVER; RR EXH MANIF | 1 | 1811- | GXZ | |||
| 001 | I8-98365 020-0 | MANIFOLD; EXHAUST | 1 | 1811- | GXZ | (B) | ||
| 018 | I0-91370 010-0 | NUT; EXH MANIF | 12 | 1811- | GXZ | M10 LOCK NUT |
