0-28 | VENTILATION SYSTEM
GIGA
NEW GIGA GXZ

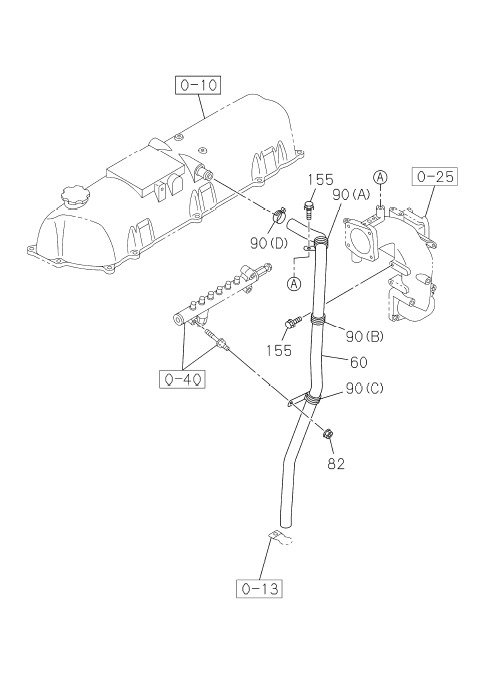

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 090 | I1-09700 947-0 | CLIP; RUBBER HOSE | 1 | 1811- | GXZ | (B) ID=35 H=45 L=33 | ||
| 060 | I8-97515 982-0 | HOSE; RUBBER,PCV | 1 | 1811- | GXZ | |||
| 090 | I8-98190 830-1 | CLIP; RUBBER HOSE | 1 | 1811- | GXZ | (A) ID=31 L=33 | ||
| 082 | I0-91180 110-0 | NUT; CLIP | 1 | 1811- | GXZ | M10 FLANGE | ||
| 090 | I1-09707 124-0 | CLIP; RUBBER HOSE | 1 | 1811- | GXZ | (D) ID=28.5 | ||
| 090 | I1-09700 704-1 | CLIP; RUBBER HOSE | 1 | 1811- | GXZ | (C) ID=32 L=75 | ||
| 155 | I0-28050 816-0 | BOLT; CLIP | 2 | 1811- | GXZ | M8X16 FLANGE |
