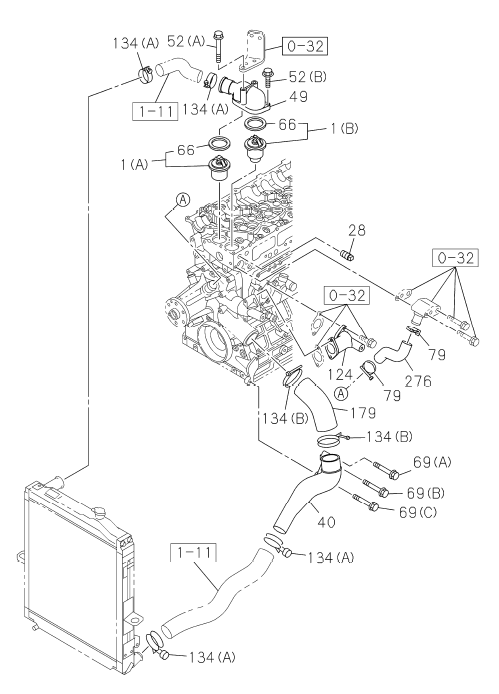

0-31 | THERMOSTAT AND HOUSING
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 134 | I9-09915 265-A | CLIP; RUBBER HOSE | 4 | 1811- | GXZ | (A) ID=63 | ||
| 001 | I8-97602 048-3 | THERMOSTAT | 1 | 1811- | GXZ | (A) 82 CELSIUS | ||
| 079 | I1-09704 077-0 | CLIP; RUBBER HOSE | 2 | 1811- | GXZ | ID=44 | ||
| 069 | I0-28151 080-0 | BOLT; DUCT,WATER OUTLET | 1 | 1811- | GXZ | (C) M10X80 FLANGE | ||
| 040 | I8-98272 747-0 | DUCT; WATER,SUCTION | 1 | 1811- | GXZ | |||
| 028 | I5-09605 005-0 | PLUG; HTR | 1 | 1811- | GXZ | PT3/8 T=12 | ||
| 124 | I1-13711 806-2 | DUCT; WATER | 1 | 1811- | GXZ | |||
| 069 | I0-28151 000-0 | BOLT; DUCT,WATER OUTLET | 1 | 1811- | GXZ | (B) M10X100 FLANGE | ||
| 049 | I8-97602 047-0 | PIPE; WATER OUTLET | 1 | 1811- | GXZ | |||
| 001 | I8-98295 921-0 | THERMOSTAT | 1 | 1811- | GXZ | (B) 82 CELSIUS W/JIGGLU VALVE | ||
| 052 | I8-97023 062-0 | BOLT; JOINT,THERMOSTAT | 2 | 1811- | GXZ | (A) M8X85 FLANGE | ||
| 134 | I1-09704 075-0 | CLIP; RUBBER HOSE | 2 | 1811- | GXZ | (B) ID=81 | ||
| 276 | I1-09361 035-1 | HOSE; BYPASS | 1 | 1811- | GXZ | |||
| 052 | I0-28650 825-0 | BOLT; JOINT,THERMOSTAT | 2 | 1811- | GXZ | (B) M8X25 FLANGE | ||
| 066 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 2 | 1811- | GXZ | ID=49.5 OD=56.5 | ||
| 069 | I0-28050 870-0 | BOLT; DUCT,WATER OUTLET | 1 | 1811- | GXZ | (A) M8X70 FLANGE | ||
| 179 | I8-98272 748-0 | HOSE; RUBBER,WATER DUCT | 1 | 1811- | GXZ |
