0-32 | WATER PIPING; ENGINE
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

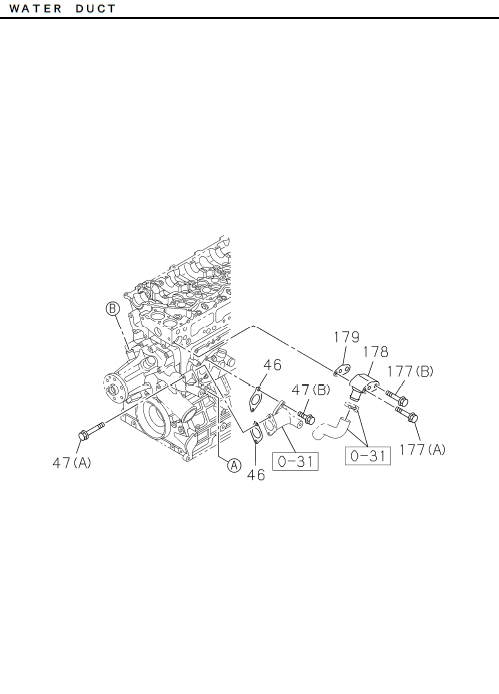

| 177 | I0-28050 870-0 | BOLT; WATER DUCT | 1 | 1811- | GXZ | (A) M8X70 FLANGE | ||

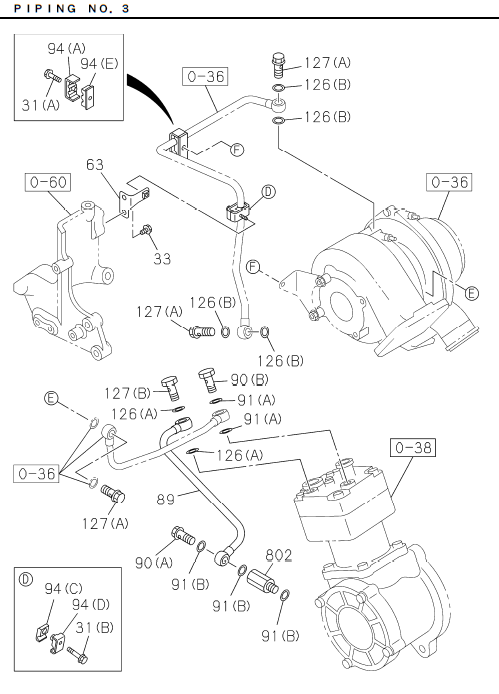

| 127 | I8-94383 489-0 | BOLT; EYE | 1 | 1811- | GXZ | (B) M16X28 EYE-BOLT | ||
| 094 | I8-98255 413-0 | CLIP; WATER PIPE | 1 | 1811- | GXZ | (E) ID=9 & 11 L=28 | ||
| 063 | I8-98281 552-0 | BRACKET; WATER PIPE | 1 | 1811- | GXZ | |||
| 802 | I8-98269 761-0 | ADAPTER; WATER | 1 | 1811- | GXZ | |||
| 025 | I8-94458 474-1 | BOLT; WATER PIPE | 3 | 1811- | GXZ | (B) M8X53 FLANGE | ||
| 115 | I8-98276 079-0 | HOSE; RUBBER | 1 | 1811- | GXZ | (A) | ||
| 126 | I9-09571 416-0 | GASKET; CAP NUT | 2 | 1811- | GXZ | (A) ID=16.2 OD=24 | ||
| 031 | I8-94458 474-1 | BOLT; CLIP | 1 | 1811- | GXZ | (A) M8X53 FLANGE | ||
| 206 | I8-98318 249-2 | PIPE; WATER,EGR COOLER | 1 | 1811- | GXZ | (A) | ||
| 035 | I8-98253 522-0 | CLIP; RUBBER HOSE | 6 | 1811- | GXZ | ID=35 | ||
| 115 | I8-98276 080-0 | HOSE; RUBBER | 1 | 1811- | GXZ | (B) | ||
| 031 | I0-28050 635-0 | BOLT; CLIP | 2 | 1811- | GXZ | (B) M6X35 FLANGE | ||
| 090 | I1-09675 088-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 1811- | GXZ | (A) M14X33 EYE-BOLT | ||
| 177 | I0-28861 670-0 | BOLT; WATER DUCT | 1 | 1811- | GXZ | (B) M16X70 FLANGE | ||
| 094 | I1-09701 265-1 | CLIP; WATER PIPE | 1 | 1811- | GXZ | (A) ID=9 & 11 L=28 | ||
| 094 | I8-98060 971-0 | CLIP; WATER PIPE | 1 | 1811- | GXZ | (D) ID=8 L=14 | ||
| 024 | I8-98198 308-1 | BRACKET; WATER PIPE | 1 | 1811- | GXZ | |||
| 047 | I0-28050 860-0 | BOLT; DUCT,TO OIL COOLER | 2 | 1811- | GXZ | (A) M8X60 FLANGE | ||
| 110 | I0-95234 832-0 | CLIP; AIR PIPE | 1 | 1811- | GXZ | ID=9 L=20 | ||
| 046 | I8-98334 113-0 | GASKET; WATER DUCT,TO OIL COOLER | 2 | 1811- | GXZ | |||
| 047 | I0-28650 825-0 | BOLT; DUCT,TO OIL COOLER | 2 | 1811- | GXZ | (B) M8X25 FLANGE | ||
| 025 | I0-28050 816-0 | BOLT; WATER PIPE | 1 | 1811- | GXZ | (A) M8X16 FLANGE | ||

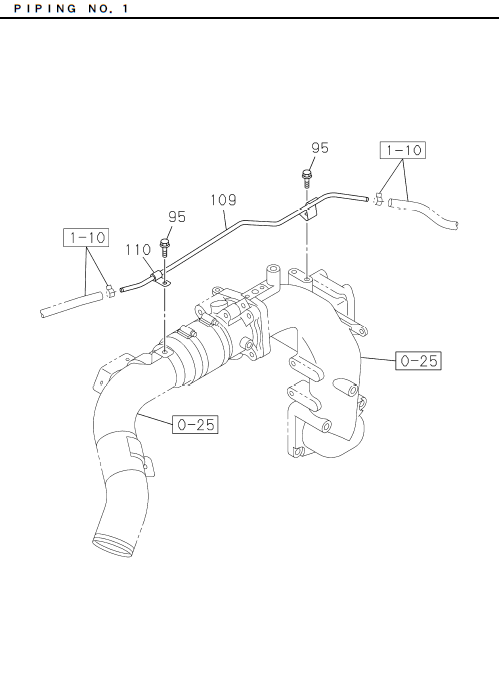

| 109 | I8-98360 931-0 | PIPE; AIR,LEAK,THERMOSTAT HSG | 1 | 1811- | GXZ | |||
| 126 | I8-98251 345-0 | GASKET; CAP NUT | 4 | 1811- | GXZ | (B) ID=14.2 OD=19.2 | ||
| 178 | I8-98275 975-0 | DUCT; WATER,BYPASS | 1 | 1811- | GXZ | |||
| 090 | I8-94383 489-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 1811- | GXZ | (B) M16X28 EYE-BOLT | ||
| 127 | I1-09675 086-0 | BOLT; EYE | 3 | 1811- | GXZ | (A) M14X27 EYE-BOLT | ||
| 094 | I8-97603 362-1 | CLIP; WATER PIPE | 6 | 1811- | GXZ | (B) ID=24.5 L=22 | ||
| 095 | I0-28050 616-0 | BOLT; CLIP | 2 | 1811- | GXZ | M6X16 FLANGE | ||
| 179 | I1-13614 024-1 | GASKET; WATER DUCT | 1 | 1811- | GXZ | |||
| 089 | I8-98305 468-0 | PIPE; WATER,AIR CMPR,IN | 1 | 1811- | GXZ | |||
| 094 | I8-98060 970-0 | CLIP; WATER PIPE | 1 | 1811- | GXZ | (C) ID=8 L=14 | ||
| 091 | I1-09630 086-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 1811- | GXZ | (A) ID=16.2 OD=22 | ||
| 206 | I8-98318 250-1 | PIPE; WATER,EGR COOLER | 1 | 1811- | GXZ | (B) | ||
| 033 | I0-28050 816-0 | BOLT; BRKT | 2 | 1811- | GXZ | M8X16 FLANGE | ||
| 115 | I8-98278 977-0 | HOSE; RUBBER | 1 | 1811- | GXZ | (C) | ||
| 091 | I8-98251 345-0 | GASKET; WATER PIPE,AIR CMPR | 3 | 1811- | GXZ | (B) ID=14.2 OD=19.2 |
