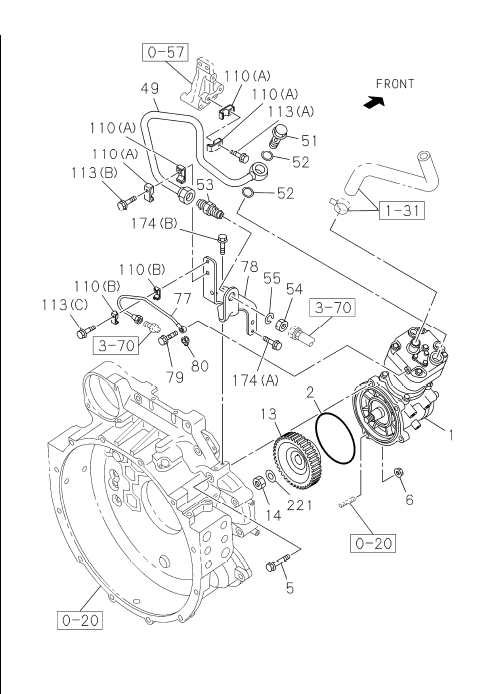

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

051	I1-09675 175-2	BOLT; EYE,AIR PIPE TO CMPR	1	1811-	GXZ	M24X39
113	I0-28050 840-0	BOLT; CLIP,AIR PIPE	1	1811-	GXZ	(A) M8X40 FLANGE
077	I8-98276 025-0	PIPE; AIR,GOV	1	1811-	GXZ
006	I0-91180 212-0	NUT; AIR CMPR	1	1811-	GXZ	M12 FLANGE
080	I8-98231 393-1	GASKET; AIR PIPE TO CMPR	1	1811-	GXZ	ID=10.6
052	I9-09571 424-0	GASKET; EYE BOLT,AIR PIPE	2	1811-	GXZ	ID=24.5 OD=32
002	I1-09623 570-0	GASKET; AIR CMPR	1	1811-	GXZ	ID=162
014	I0-91110 520-0	NUT; GEAR	1	1811-	GXZ	M20
174	I0-28050 816-0	BOLT; BRKT	2	1811-	GXZ	(B) M8X16 FLANGE
221	I0-91610 520-0	WASHER; PL,GEAR	1	1811-	GXZ	ID=21
054	I0-91111 522-0	NUT; PIPE UNION	1	1811-	GXZ	M22
001	I8-98209 630-5	COMPRESSOR ASM; AIR	1	1811-	GXZ
113	I0-28050 635-0	BOLT; CLIP,AIR PIPE	1	1811-	GXZ	(C) M6X35 FLANGE
005	I0-28151 270-0	BOLT; AIR CMPR FIX	3	1811-	GXZ	M12X70 FLANGE
055	I0-91510 522-0	WASHER; LK,PIPE UNION	1	1811-	GXZ	ID=22.5
013	I8-15033 449-0	GEAR; AIR CMPR DRIVE	1	1811-	GXZ	Z=49
174	I0-28050 616-0	BOLT; BRKT	1	1811-	GXZ	(A) M6X16 FLANGE
049	I8-98276 024-0	PIPE; AIR,CHARGE	1	1811-	GXZ
053	I1-09654 318-1	UNION; CHARGE PIPE	1	1811-	GXZ	M22 & M26 L=79 STRAIGHT
078	I8-98274 410-0	BRACKET; PIPE,AIR GOV	1	1811-	GXZ
110	I8-98029 953-1	CLIP; AIR PIPE	2	1811-	GXZ	(B) ID=5.5 L=10.5
079	I8-98037 824-0	BOLT; EYE,AIR PIPE TO CMPR	1	1811-	GXZ	M10X23 EYE-BOLT
113	I0-28050 845-0	BOLT; CLIP,AIR PIPE	1	1811-	GXZ	(B) M8X45 FLANGE
110	I1-09701 284-0	CLIP; AIR PIPE	4	1811-	GXZ	(A) ID=17 L=17
