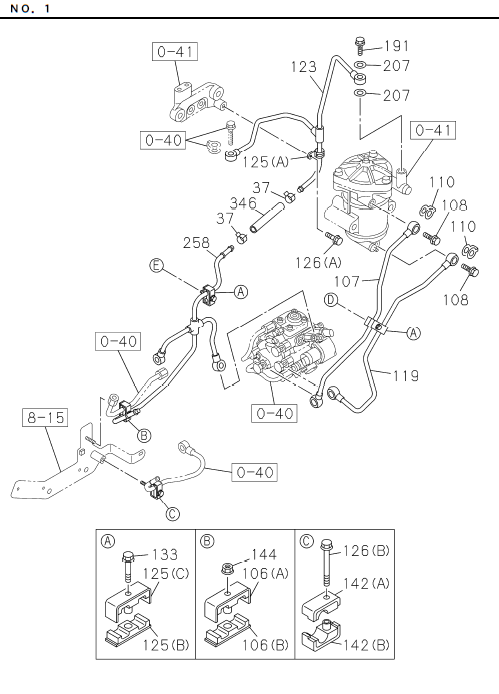

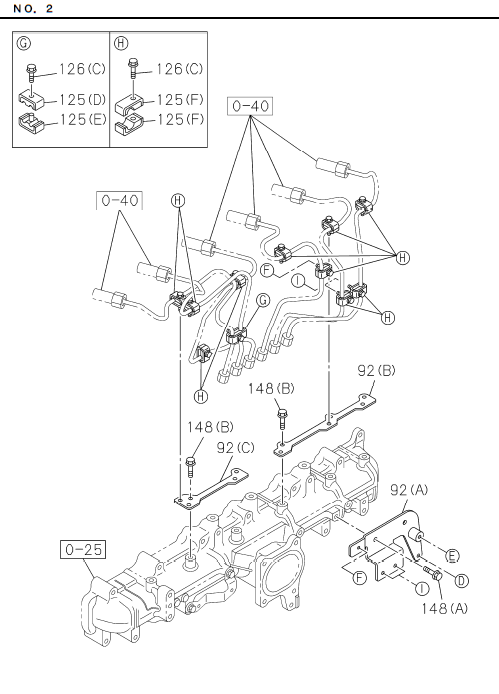

0-42 | FUEL PUMP AND PIPE
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 191 | I1-09675 086-0 | BOLT; EYE,FUEL PIPE | 1 | 1811- | GXZ | M14X27 EYE-BOLT | ||
| 144 | I0-91180 106-0 | NUT; CLIP | 1 | 1811- | GXZ | M6 FLANGE | ||
| 106 | I1-09701 228-3 | CLIP; FUEL PIPE,LEAK OFF | 1 | 1811- | GXZ | (A) ID=7 & 9 L=25 | ||
| 125 | I1-09700 911-1 | CLIP; FUEL PIPE | 1 | 1811- | GXZ | (A) ID=12 L=20 | ||
| 126 | I0-28050 635-0 | BOLT; CLIP,FUEL PIPE | 11 | 1811- | GXZ | (C) M6X35 FLANGE | ||
| 125 | I8-97330 118-3 | CLIP; FUEL PIPE | 1 | 1811- | GXZ | (D) ID=7 & 7 L=22 | ||
| 258 | I8-98382 741-0 | PIPE ASM; FUEL,LEAK OFF | 1 | 1811- | GXZ | |||
| 142 | I8-98060 970-0 | CLIP; FUEL PIPE | 1 | 1811- | GXZ | (A) ID=8 L=14 | ||
| 119 | I8-98399 886-0 | PIPE; FUEL,FUEL FILTER TO INJ PUMP | 1 | 1811- | GXZ | |||
| 148 | I0-28050 820-0 | BOLT; BRKT | 2 | 1811- | GXZ | (A) M8X20 FLANGE | ||
| 037 | I8-94392 924-0 | CLIP; FUEL HOSE | 2 | 1811- | GXZ | ID=16 | ||
| 148 | I0-28050 816-0 | BOLT; BRKT | 5 | 1811- | GXZ | (B) M8X16 FLANGE | ||
| 207 | I1-09630 141-0 | GASKET; EYE BOLT | 2 | 1811- | GXZ | ID=14.2 OD=25 | ||
| 126 | I0-28050 616-0 | BOLT; CLIP,FUEL PIPE | 1 | 1811- | GXZ | (A) M6X16 FLANGE | ||
| 142 | I8-98060 971-0 | CLIP; FUEL PIPE | 1 | 1811- | GXZ | (B) ID=8 L=14 | ||
| 125 | I8-97330 119-3 | CLIP; FUEL PIPE | 1 | 1811- | GXZ | (E) ID=7 & 7 L=22 | ||
| 110 | I8-98340 724-0 | GASKET; JOINT BOLT,FUEL PIPE | 2 | 1811- | GXZ | ID=14.2 OD=21 | ||
| 092 | I8-98322 559-0 | BRACKET; FUEL PIPE | 1 | 1811- | GXZ | (C) | ||
| 107 | I8-98399 885-0 | PIPE; FUEL,FEED PUMP TO FUEL FILTER | 1 | 1811- | GXZ | |||
| 106 | I1-09701 229-2 | CLIP; FUEL PIPE,LEAK OFF | 1 | 1811- | GXZ | (B) ID=7 & 9 L=25 | ||
| 108 | I1-09675 086-0 | BOLT; JOINT,FUEL FILTER | 2 | 1811- | GXZ | M14X27 EYE-BOLT | ||
| 126 | I0-28050 670-0 | BOLT; CLIP,FUEL PIPE | 1 | 1811- | GXZ | (B) M6X70 FLANGE | ||
| 125 | I8-98255 861-0 | CLIP; FUEL PIPE | 20 | 1811- | GXZ | (F) | ||
| 092 | I8-98323 162-0 | BRACKET; FUEL PIPE | 1 | 1811- | GXZ | (B) | ||
| 092 | I8-98399 887-0 | BRACKET; FUEL PIPE | 1 | 1811- | GXZ | (A) | ||
| 123 | I8-98369 893-0 | PIPE; FUEL,FUEL FILTER LEAK OFF | 1 | 1811- | GXZ | |||
| 133 | I0-28050 635-0 | BOLT; BRKT & CLIP | 2 | 1811- | GXZ | M6X35 FLANGE | ||
| 125 | I8-94393 280-3 | CLIP; FUEL PIPE | 2 | 1811- | GXZ | (C) ID=9 & 9 L=25 | ||
| 125 | I1-09701 180-0 | CLIP; FUEL PIPE | 2 | 1811- | GXZ | (B) ID=9 & 9 L=25 | ||
| 346 | I8-98319 638-0 | HOSE ASM; FUEL,RETURN | 1 | 1811- | GXZ |
