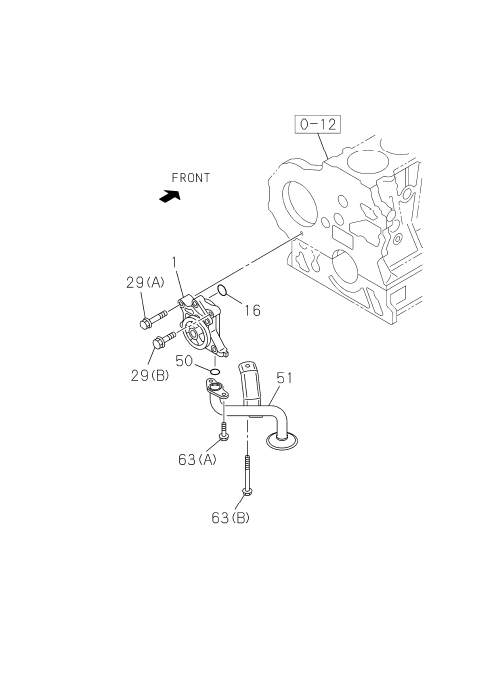

0-51 | OIL PUMP AND OIL STRAINER
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 050 | I9-09566 228-0 | GASKET; OIL PIPE,STRAINER TO PUMP | 1 | 1811- | GXZ | ID=27.7 | ||
| 051 | I8-98272 348-1 | STRAINER & PIPE ASM; OIL | 1 | 1811- | GXZ | |||
| 063 | I0-28050 820-0 | BOLT; OIL PIPE,STRAINER TO PUMP | 2 | 1811- | GXZ | (A) M8X20 FLANGE | ||
| 029 | I0-28050 850-0 | BOLT; OIL PUMP | 2 | 1811- | GXZ | (A) M8X50 FLANGE | ||
| 001 | I8-98271 612-0 | PUMP ASM; OIL | 1 | 1811- | GXZ | |||
| 063 | I8-94399 669-1 | BOLT; OIL PIPE,STRAINER TO PUMP | 1 | 1811- | GXZ | (B) M10X75 FLANGE | ||
| 016 | I8-98196 355-0 | GASKET; OIL PUMP,C/BL | 1 | 1811- | GXZ | ID=26.7 | ||
| 029 | I0-28050 835-0 | BOLT; OIL PUMP | 1 | 1811- | GXZ | (B) M8X35 FLANGE |
