0-60 | ENGINE ELECTRICAL CONTROL PARTS
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 026 | I0-28151 090-0 | BOLT; GEN BRKT | 2 | 1811- | GXZ | (B) M10X90 FLANGE | ||
| 836 | I8-97366 632-0 | BOLT; CONNECTOR | 4 | 1811- | GXZ | M8X20 FLANGE | ||
| 018 | I0-91510 514-0 | WASHER; LK,GEN | 1 | 1811- | GXZ | ID=14.2 | ||
| 017 | I0-91610 514-0 | WASHER; PL,GEN | 1 | 1811- | GXZ | ID=15 | ||
| 026 | I0-28151 060-0 | BOLT; GEN BRKT | 1 | 1811- | GXZ | (D) M10X60 FLANGE | ||
| 296 | I0-91180 108-0 | NUT; RELAY,STARTER | 2 | 1811- | GXZ | M8 FLANGE | ||
| 905 | I7-05110 010-A | NUT; HARNESS | 4 | 1811- | GXZ | M10 FLANGE | ||

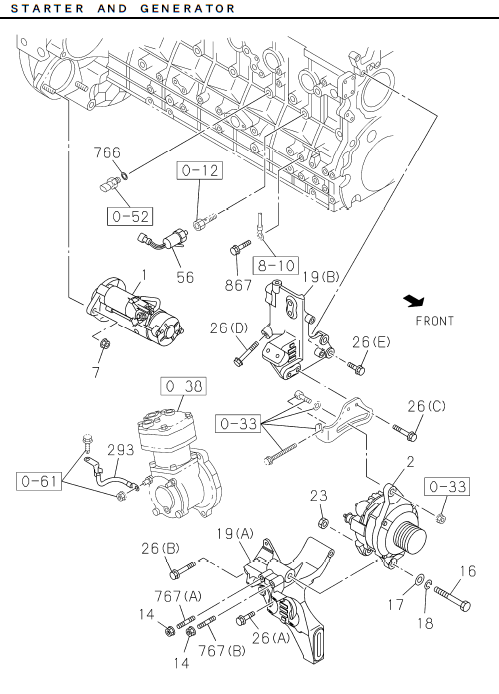

| 002 | I8-98322 258-0 | GENERATOR ASM | 1 | 1811- | GXZ | 24V 60A | ||
| 767 | I8-97032 977-1 | STUD; BRKT | 1 | 1811- | GXZ | (A) M10X45 L=60 PLATED | ||
| 026 | I0-28050 825-0 | BOLT; GEN BRKT | 2 | 1811- | GXZ | (C) M8X25 FLANGE | ||
| 867 | I0-28050 812-A | BOLT | 1 | 1811- | GXZ | M8X12 FLANGE | ||
| 767 | I8-94396 123-0 | STUD; BRKT | 1 | 1811- | GXZ | (B) M10X93 L=108 | ||
| 748 | I0-28050 612-0 | BOLT; CONT UNIT | 4 | 1811- | GXZ | (A) M6X12 FLANGE | ||
| 749 | I8-98271 965-0 | STAY; CONT UNIT | 1 | 1811- | GXZ | |||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 1811- | GXZ | (B) M6X16 FLANGE | ||
| 293 | I8-98356 970-0 | CABLE; STARTER EARTH | 1 | 1811- | GXZ | |||
| 001 | I8-98231 896-1 | STARTER ASM | 1 | 1811- | GXZ | 24V 5.0KW | ||
| 023 | I7-05014 012-A | NUT; GEN | 1 | 1811- | GXZ | M14 | ||
| 010 | I8-98005 631-1 | RELAY; STARTER | 1 | 1811- | GXZ | (B) 24V | ||

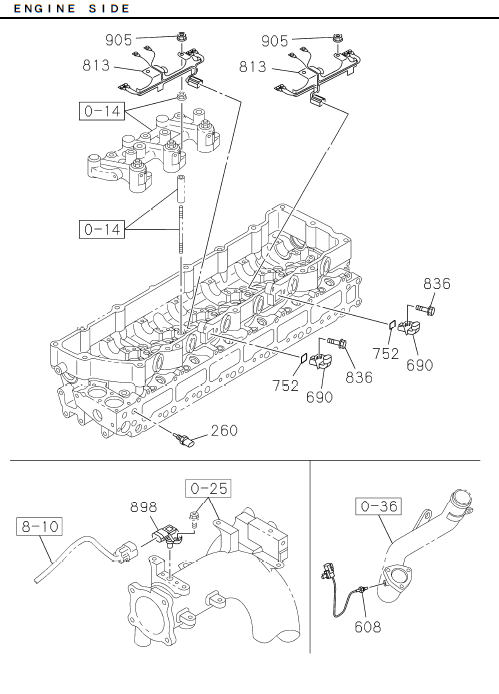

| 813 | I8-98252 114-0 | HARNESS; INJECTOR | 1 | 1811- | GXZ | REAR | ||
| 732 | I0-28651 030-0 | BOLT; BRKT | 3 | 1811- | GXZ | M10X30 FLANGE | ||
| 019 | I8-98276 097-0 | BRACKET; GEN | 1 | 1811- | GXZ | (B) | ||
| 813 | I8-98252 113-0 | HARNESS; INJECTOR | 1 | 1811- | GXZ | FRONT | ||
| 752 | I8-94391 310-0 | GASKET | 2 | 1811- | GXZ | |||
| 019 | I8-98275 931-0 | BRACKET; GEN | 1 | 1811- | GXZ | (A) | ||
| 014 | I7-05110 010-A | NUT; BRKT | 2 | 1811- | GXZ | M10 FLANGE | ||
| 007 | I1-09440 097-0 | NUT; STARTER | 2 | 1811- | GXZ | M14 | ||

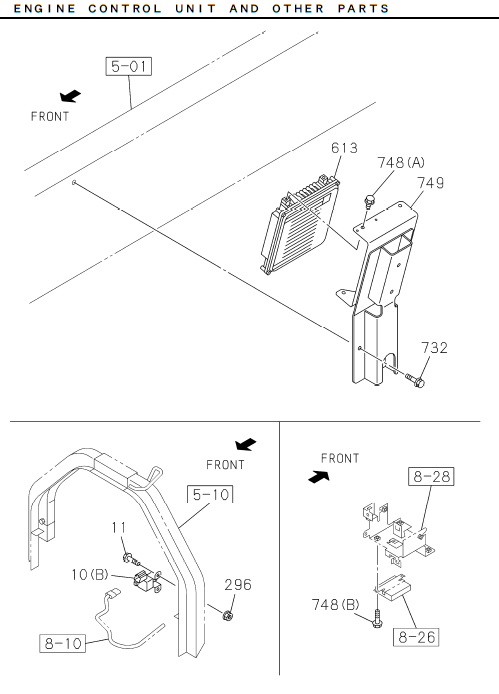

| 613 | I8-97480 427-0 | CONTROL UNIT; ENG | 1 | 1811- | GXZ | |||
| 608 | I8-98028 398-0 | SENSOR; AIR TEMP | 1 | 1811- | GXZ | |||
| 056 | I1-82410 170-1 | SWITCH; OIL PRESSURE WARNING | 1 | 1811- | GXZ | |||
| 010 | I8-98167 173-0 | RELAY; STARTER | 1 | 1811- | GXZ | (A) 24V 10A | ||
| 026 | I0-28151 240-0 | BOLT; GEN BRKT | 2 | 1811- | GXZ | (E) M12X40 FLANGE | ||
| 016 | I1-09000 133-1 | BOLT; GEN | 1 | 1811- | GXZ | M14X135 | ||
| 766 | I9-09571 414-0 | GASKET; SENSOR | 1 | 1811- | GXZ | ID=14.2 OD=20 | ||
| 260 | I8-98260 257-0 | SENSOR; WATER TEMP | 1 | 1811- | GXZ | |||
| 690 | I8-94390 858-1 | CONNECTOR | 2 | 1811- | GXZ | |||
| 011 | I0-28650 820-0 | BOLT; RELAY STARTER | 2 | 1811- | GXZ | M8X20 FLANGE | ||
| 898 | I8-98009 418-0 | SENSOR; BOOST | 1 | 1811- | GXZ | |||
| 026 | I0-28151 040-0 | BOLT; GEN BRKT | 2 | 1811- | GXZ | (A) M10X40 FLANGE |
