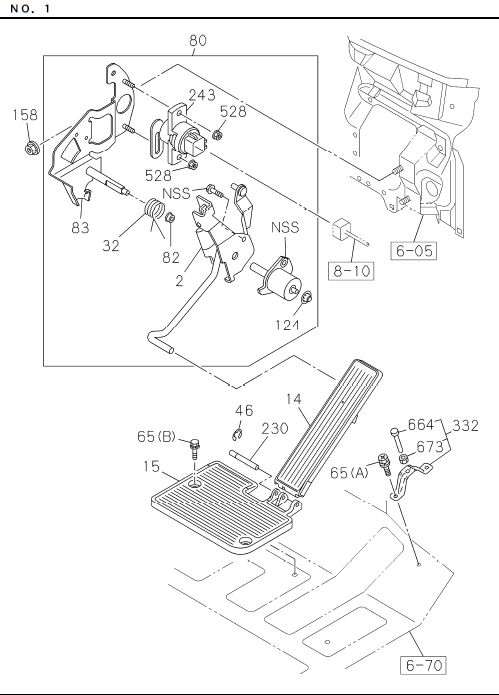

1-01 | ACCELERATOR PEDAL AND CONTROL
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-98031 665-0 | SPRING; RETURN,ACCEL PEDAL | 1 | 1811- | GXZ | |||
| 124 | I8-94368 617-0 | NUT; LEVER | 1 | 1811- | GXZ | ID=7.9 PUSH NUT | ||
| 230 | I8-97948 309-0 | PIN; JOINT,ACCEL PEDAL TO BRKT | 1 | 1811- | GXZ | |||
| 080 | I8-98038 418-4 | LINK ASM; ENG CONT | 1 | 1811- | GXZ | |||
| 332 | I8-98011 468-2 | BRACKET; ACCEL PEDAL STOPPER | 1 | 1811- | GXZ | |||
| 065 | I8-94279 201-0 | BOLT | 2 | 1811- | GXZ | (A) M6X19.5 W/LK&PL WASHER | ||
| 773 | I8-97352 127-0 | HOLDER; ACCEL PEDAL | 1 | 1811- | GXZ | |||
| 083 | I8-98020 217-0 | BRACKET; CONT LINK | 1 | 1811- | GXZ | |||
| 673 | I0-91110 508-0 | NUT; STOPPER | 1 | 1811- | GXZ | M8 | ||
| 014 | I8-97948 317-0 | PAD; PEDAL,ACCEL | 1 | 1811- | GXZ | |||
| 664 | I0-20850 840-0 | BOLT; STOPPER | 1 | 1811- | GXZ | M8X40 | ||
| 082 | I8-97581 053-0 | BUSHING; ENG CONT LVR | 1 | 1811- | GXZ | |||
| 046 | I0-91805 504-0 | RING; SNAP,ACCEL CONT PEDAL | 1 | 1811- | GXZ | ID=4 | ||
| 002 | I8-98049 120-1 | LEVER; ENG CONT | 1 | 1811- | GXZ | |||
| 065 | I0-50140 628-0 | BOLT | 2 | 1811- | GXZ | (B) M6X28 W/LK&PL WASHER | ||
| 015 | I8-97948 308-0 | STAND; HEEL,ACCEL PEDAL | 1 | 1811- | GXZ | |||

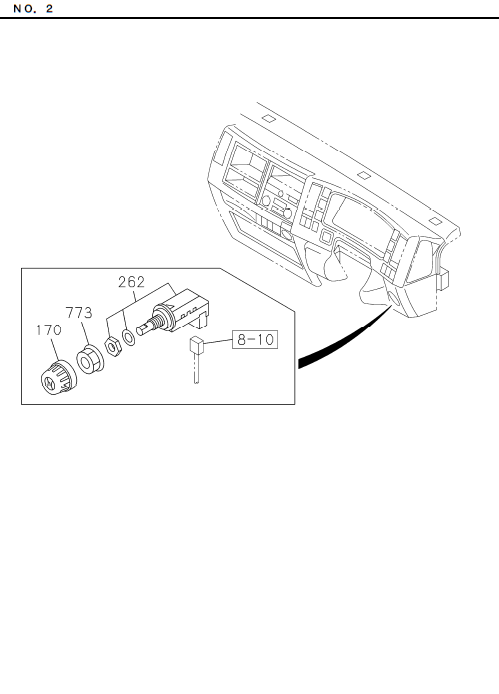

| 262 | I8-98013 418-0 | SWITCH; ACCEL,IDLE | 1 | 1811- | GXZ | |||
| 528 | I8-94169 022-0 | NUT; ACCEL SENSOR | 2 | 1811- | GXZ | M5 | ||
| 243 | I8-98131 263-0 | SENSOR; ACCEL | 1 | 1811- | GXZ | |||
| 158 | I0-91180 108-0 | NUT; BRKT | 2 | 1811- | GXZ | M8 FLANGE | ||
| 170 | I8-98013 420-0 | KNOB | 1 | 1811- | GXZ |
