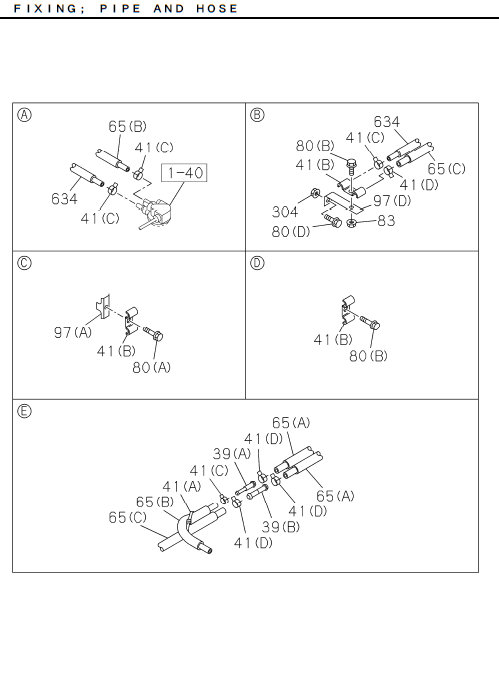

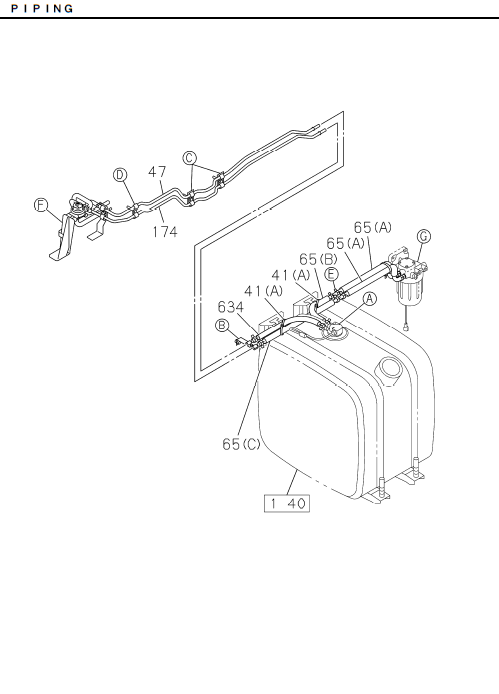

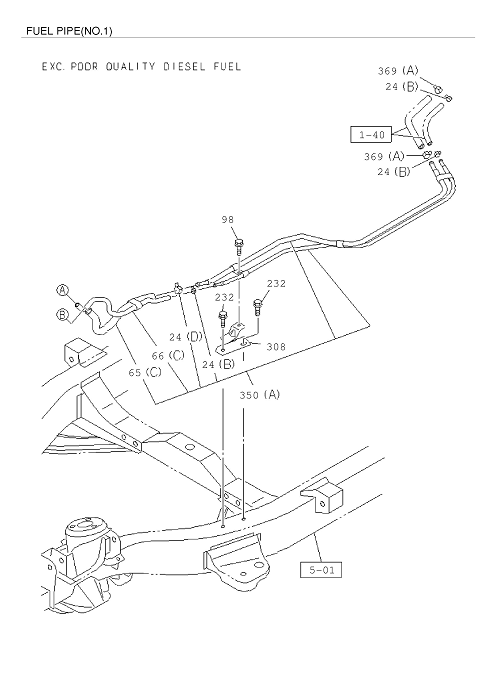

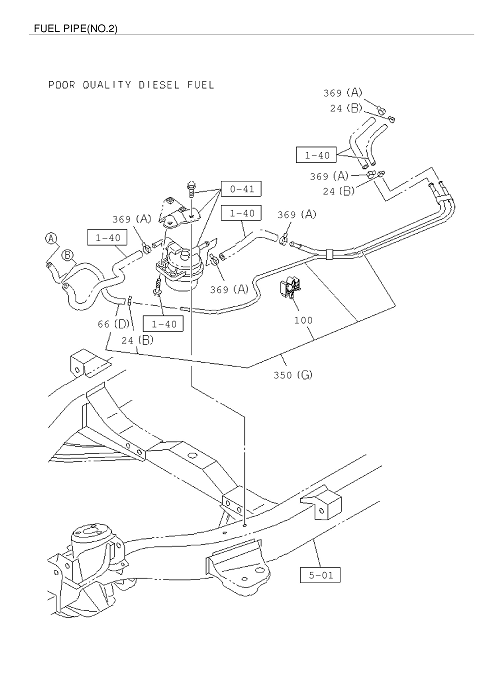

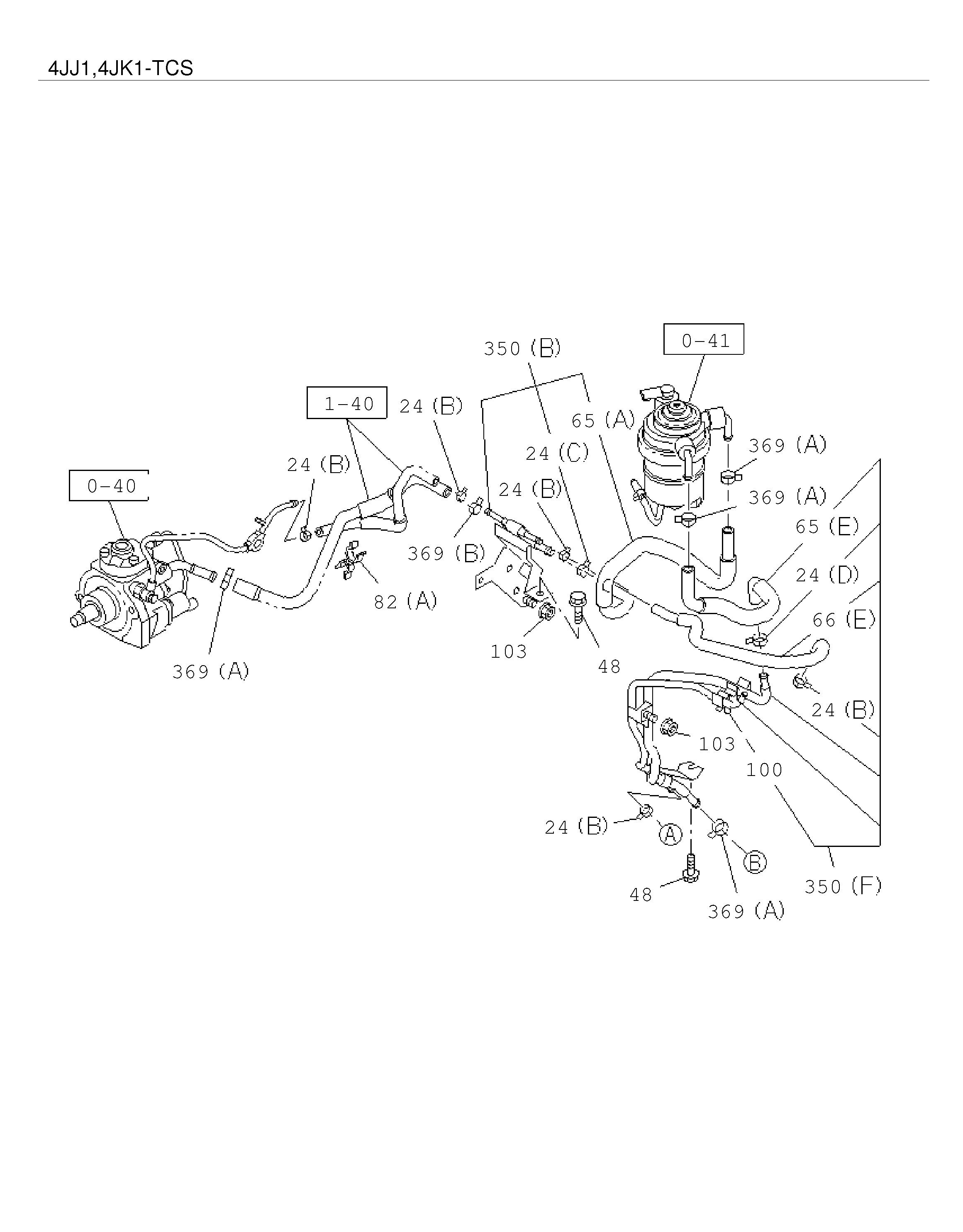

1-41 | FUEL PIPING; CHASSIS
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 303 | I0-28650 830-0 | BOLT; BRKT | 2 | 1811- | GXZ | M8X30 FLANGE | ||
| 080 | I0-28650 830-0 | BOLT; CLIP,FUEL TANK | 1 | 1811- | GXZ | (D) M8X30 FLANGE | ||
| 080 | I0-28650 825-0 | BOLT; CLIP,FUEL TANK | 2 | 1811- | GXZ | (C) M8X25 FLANGE | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 4 | 1811- | GXZ | (A) L=250 | ||
| 065 | I8-98483 686-1 | HOSE; FUEL,DELIVERY PIPE | 1 | 1811- | GXZ | (C) L=510 | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 5 | 1811- | GXZ | (B) ID=11 & 13 L=21.5 & 21.5 | ||
| 041 | I8-98150 356-0 | CLIP; FUEL PIPE,FUEL TANK | 10 | 1811- | GXZ | (D) ID=19 | ||
| 029 | I8-98359 643-0 | HOSE; FUEL | 1 | 1811- | GXZ | (A) | ||
| 039 | I8-98359 702-0 | PIPE; FUEL | 1 | 1811- | GXZ | (B) | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 2 | 1811- | GXZ | M8 FLANGE | ||
| 634 | I8-98353 050-1 | HOSE; RUBBER RETURN | 1 | 1811- | GXZ | L=470 | ||
| 228 | I0-28050 830-0 | BOLT; BRKT,SEDIMENTER | 2 | 1811- | GXZ | (A) M8X30 FLANGE | ||
| 097 | I1-47475 427-1 | BRACKET; CLIP | 2 | 1811- | GXZ | (A) | ||

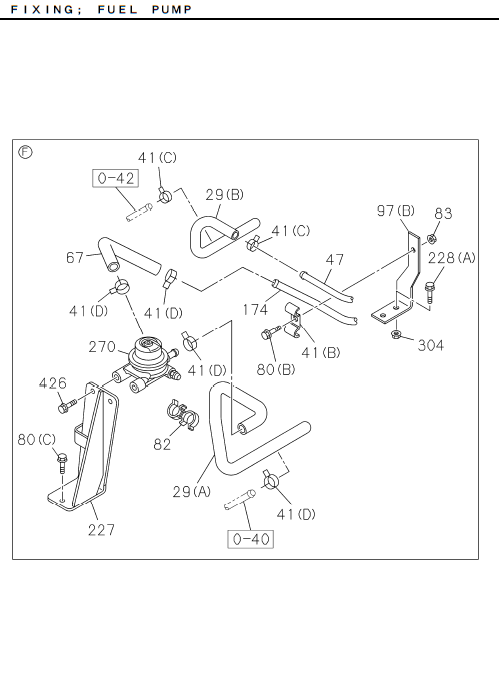

| 270 | I8-98363 244-0 | PUMP ASM; FUEL | 1 | 1811- | GXZ | |||
| 067 | I8-98359 642-0 | HOSE; FUEL,DELIVERY | 1 | 1811- | GXZ | |||
| 082 | I8-94323 068-0 | CLIP; FUEL HOSE | 1 | 1811- | GXZ | ID=18 & 18 | ||
| 228 | I0-28051 050-0 | BOLT; BRKT,SEDIMENTER | 2 | 1811- | GXZ | (B) M10X50 FLANGE | ||

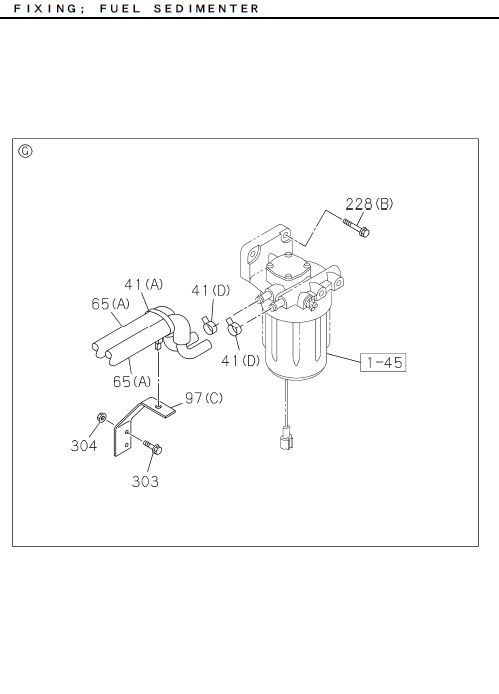

| 227 | I8-98272 044-0 | BRACKET; FUEL SEDIMENTER | 1 | 1811- | GXZ | |||
| 083 | I0-91180 108-0 | NUT; CLIP,FUEL TANK | 2 | 1811- | GXZ | M8 FLANGE | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 1811- | GXZ | (C) ID=16 | ||
| 097 | I8-98359 645-0 | BRACKET; CLIP | 1 | 1811- | GXZ | (B) | ||
| 039 | I8-98359 701-0 | PIPE; FUEL | 1 | 1811- | GXZ | (A) | ||
| 029 | I8-98359 644-0 | HOSE; FUEL | 1 | 1811- | GXZ | (B) | ||
| 047 | I8-98483 690-A | PIPE; FUEL,RETURN | 1 | 1811- | GXZ | L=1519 | ||
| 097 | I8-98379 567-0 | BRACKET; CLIP | 1 | 1811- | GXZ | (C) | ||
| 065 | I8-98359 648-0 | HOSE; FUEL,DELIVERY PIPE | 2 | 1811- | GXZ | (A) L=422 | ||
| 080 | I0-28650 820-0 | BOLT; CLIP,FUEL TANK | 3 | 1811- | GXZ | (B) M8X20 FLANGE | ||
| 097 | I8-98153 352-0 | BRACKET; CLIP | 1 | 1811- | GXZ | (D) | ||
| 426 | I0-28650 820-0 | BOLT; FUEL PUMP | 2 | 1811- | GXZ | M8X20 FLANGE | ||
| 174 | I8-98483 692-A | PIPE; FUEL,FEED,FRT | 1 | 1811- | GXZ | |||
| 080 | I0-28050 845-0 | BOLT; CLIP,FUEL TANK | 2 | 1811- | GXZ | (A) M8X45 FLANGE | ||
| 065 | I8-98483 684-1 | HOSE; FUEL,DELIVERY PIPE | 1 | 1811- | GXZ | (B) L=320 |
