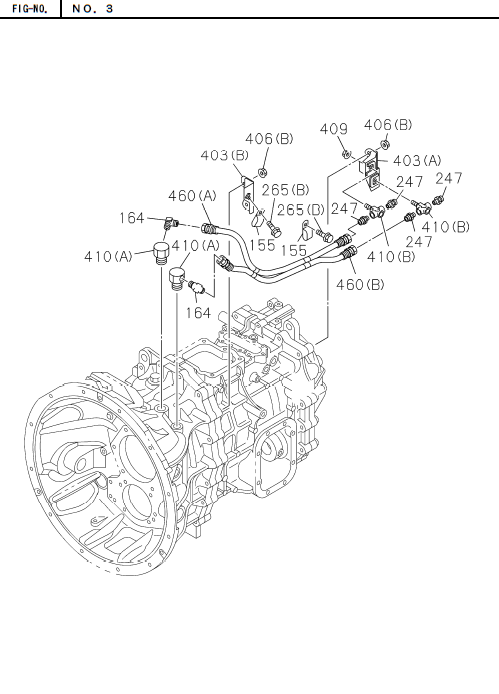

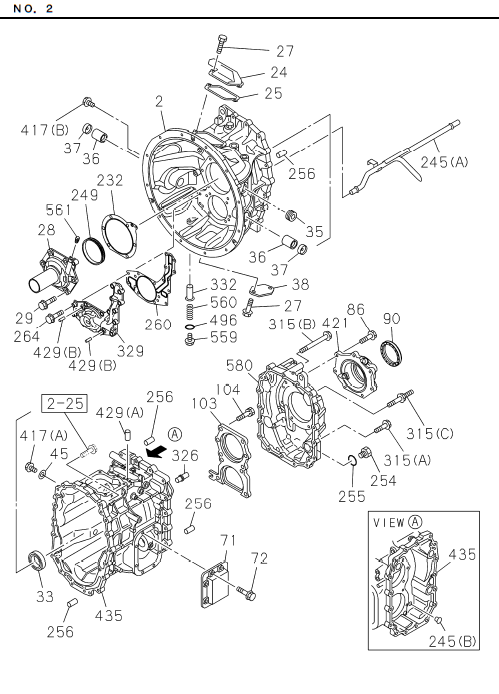

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 429 | I9-08151 018-0 | PIN; STRAIGHT | 2 | 1811- | GXZ | (B) OD=10 L=18 | ||
| 326 | I8-98230 366-0 | NOZZLE; OIL,OUTLET | 1 | 1811- | GXZ | |||
| 315 | I0-28156 214-0 | BOLT; CASE | 1 | 1811- | GXZ | (B) M12X140 FLANGE | ||
| 315 | I1-09049 037-0 | BOLT; CASE | 3 | 1811- | GXZ | (C) M10X28,M12X50 L=89.7 | ||
| 329 | I8-98228 900-0 | PUMP ASM; OIL | 1 | 1811- | GXZ | |||
| 247 | I0-92306 008-0 | NIPPLE; OIL PIPE | 4 | 1811- | GXZ | R1/4 & M16 | ||
| 406 | I0-91180 110-0 | NUT; BRKT | 4 | 1811- | GXZ | (B) M10 FLANGE | ||
| 260 | I8-98230 271-0 | GASKET; OIL PUMP | 1 | 1811- | GXZ | |||
| 303 | I1-87411 006-0 | TUBE; NYLON | 1 | 1811- | GXZ | OD=8 | ||
| 045 | I1-09623 058-0 | GASKET; FILLER PLUG | 1 | 1811- | GXZ | ID=26.8 | ||
| 072 | I0-28051 035-0 | BOLT; SIDE COVER | 8 | 1811- | GXZ | M10X35 FLANGE | ||
| 028 | I8-98228 899-0 | COVER; FRT,TRANS CASE | 1 | 1811- | GXZ | |||
| 256 | I9-08151 018-0 | PIN; KNOCK | 4 | 1811- | GXZ | OD=10 L=18 | ||
| 410 | I1-09650 529-0 | UNION; OIL PIPE | 2 | 1811- | GXZ | (A) | ||
| 029 | I8-98230 249-0 | BOLT; FRT COVER | 7 | 1811- | GXZ | M10X40 FLANGE | ||
| 560 | I1-09580 504-0 | SPRING; OIL | 1 | 1811- | GXZ | |||
| 035 | I9-09575 796-0 | GROMMET; CLU HSG | 1 | 1811- | GXZ | OD=31 | ||
| 036 | I1-09811 087-0 | BEARING; NEEDLE,CLU HSG | 2 | 1811- | GXZ | |||
| 025 | I8-98283 291-0 | GASKET; COVER | 1 | 1811- | GXZ | |||
| 033 | I1-09625 562-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1811- | GXZ | |||
| 265 | I0-28050 816-0 | BOLT; CLIP | 2 | 1811- | GXZ | (B) M8X16 FLANGE | ||
| 164 | I1-09660 683-1 | CONNECTOR; ELBOW | 2 | 1811- | GXZ | |||
| 496 | I1-09623 058-0 | GASKET; OIL FILTER | 1 | 1811- | GXZ | ID=26.8 | ||
| 561 | I9-99204 513-0 | PLUG | 1 | 1811- | GXZ | PT1/4 | ||
| 255 | I1-09623 058-0 | GASKET; DRAIN PLUG | 1 | 1811- | GXZ | ID=26.8 | ||
| 332 | I1-41383 003-0 | FILTER; OIL | 1 | 1811- | GXZ | |||
| 002 | I8-98228 894-2 | HOUSING; CLU | 1 | 1811- | GXZ | |||
| 090 | I8-98369 949-0 | SEAL; OIL,RR COVER | 1 | 1811- | GXZ | |||
| 421 | I8-98228 959-1 | COVER; RR,TRANS | 1 | 1811- | GXZ | |||
| 409 | I0-91180 212-0 | NUT; UNION | 2 | 1811- | GXZ | M12 FLANGE | ||
| 254 | I1-09604 023-0 | PLUG; DRAIN,OIL | 1 | 1811- | GXZ | M24X17 FLANGE | ||
| 435 | I8-98228 897-2 | CASE; TRANS | 1 | 1811- | GXZ | |||
| 403 | I8-98339 434-0 | BRACKET; UNION,OIL PIPE | 1 | 1811- | GXZ | (B) | ||
| 037 | I1-09625 003-0 | SEAL; DUST,CLU HSG | 2 | 1811- | GXZ | |||
| 460 | I8-98339 432-0 | HOSE; FLEX,OIL PUMP | 1 | 1811- | GXZ | (B) | ||
| 399 | I8-98311 821-0 | BRACKET; CLIP | 1 | 1811- | GXZ | (A) | ||
| 439 | I0-28650 830-0 | BOLT; BRKT | 2 | 1811- | GXZ | M8X30 FLANGE | ||
| 027 | I0-28050 812-A | BOLT; COVER TO CLU HSG | 4 | 1811- | GXZ | M8X12 FLANGE | ||
| 429 | I9-08160 612-0 | PIN; STRAIGHT | 2 | 1811- | GXZ | (A) OD=6 L=12 | ||
| 410 | I8-98120 049-0 | UNION; OIL PIPE | 2 | 1811- | GXZ | (B) M12 & RC1/4X2 2WAY | ||
| 315 | I0-28151 250-0 | BOLT; CASE | 13 | 1811- | GXZ | (A) M12X50 FLANGE | ||
| 559 | I1-09604 023-0 | PLUG; OIL | 1 | 1811- | GXZ | M24X17 FLANGE | ||
| 249 | I8-98096 513-0 | PIECE; DIST | 1 | 1811- | GXZ | |||
| 024 | I1-31131 037-0 | COVER; CHECK HOLE,DUST | 1 | 1811- | GXZ | |||
| 399 | I8-98311 822-0 | BRACKET; CLIP | 1 | 1811- | GXZ | (B) | ||
| 271 | I0-91180 108-0 | NUT; CLIP | 2 | 1811- | GXZ | M8 FLANGE | ||
| 086 | I1-09044 076-0 | BOLT; RR COVER | 7 | 1811- | GXZ | M12X35 | ||
| 406 | I0-91180 108-0 | NUT; BRKT | 2 | 1811- | GXZ | (A) M8 FLANGE | ||
| 245 | I8-98230 352-0 | PIPE; OIL | 1 | 1811- | GXZ | (A) | ||
| 264 | I8-98230 249-0 | BOLT; OIL PUMP | 15 | 1811- | GXZ | M10X40 FLANGE | ||
| 245 | I8-98230 356-0 | PIPE; OIL | 1 | 1811- | GXZ | (B) | ||
| 580 | I8-98228 963-0 | CASE; RANGE | 1 | 1811- | GXZ | |||
| 038 | I1-31131 003-0 | COVER; CHECK HOLE,LWR | 1 | 1811- | GXZ | |||

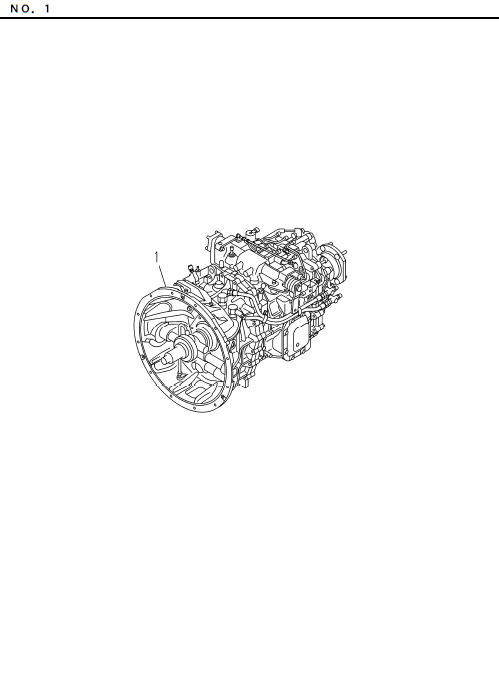

| 001 | I1-33044 703-0 | TRANSMISSION ASM; MANUAL | 1 | 1811- | GXZ | |||
| 071 | I1-33141 066-0 | COVER; SIDE,TRANS CASE | 1 | 1811- | GXZ | |||
| 103 | I8-98269 693-0 | RETAINER; BRG | 1 | 1811- | GXZ | |||
| 104 | I8-98216 961-0 | BOLT; BRG RET | 10 | 1811- | GXZ | M10X32 FLANGE | ||
| 155 | I0-95325 535-0 | CLIP; HOSE | 2 | 1811- | GXZ | ID=16X2 L=20 | ||
| 403 | I8-98339 433-1 | BRACKET; UNION,OIL PIPE | 1 | 1811- | GXZ | (A) | ||
| 417 | I1-09604 035-0 | PLUG; OIL FILLER,TRANS | 1 | 1811- | GXZ | (B) M22X12 | ||
| 460 | I8-98339 431-0 | HOSE; FLEX,OIL PUMP | 1 | 1811- | GXZ | (A) | ||
| 232 | I8-98230 256-0 | GASKET; FRT COVER | 1 | 1811- | GXZ | |||
| 417 | I1-09604 022-0 | PLUG; OIL FILLER,TRANS | 1 | 1811- | GXZ | (A) M24X17 FLANGE | ||
| 353 | I0-95234 825-0 | CLIP; NYLON TUBE | 2 | 1811- | GXZ | ID=9 L=16 | ||
| 265 | I0-28650 820-0 | BOLT; CLIP | 2 | 1811- | GXZ | (A) M8X20 FLANGE |
