2-26 | MANUAL TRANSMISSION GEAR
GIGA
NEW GIGA GXZ

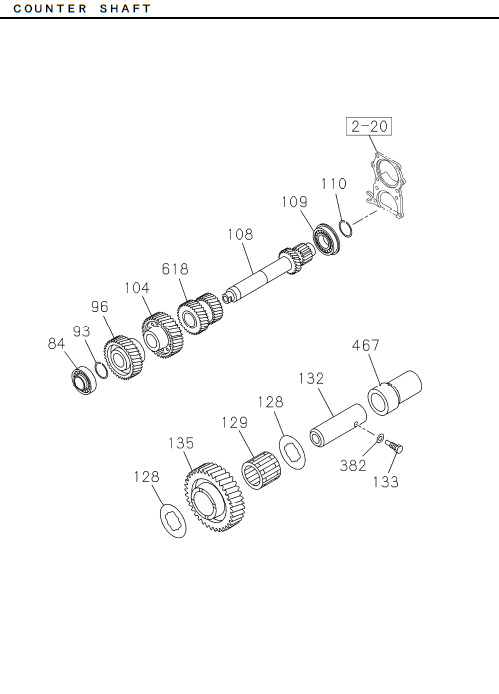

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 046 | I1-33263 020-0 | PLUNGER; DETENT,SYN | 3 | 1811- | GXZ | |||
| 616 | I8-98212 814-1 | RING; BLOCK,1ST & 2ND | 2 | 1811- | GXZ | |||
| 474 | I1-33219 257-0 | NOZZLE; OIL | 1 | 1811- | GXZ | |||
| 078 | I8-98096 911-0 | COLLAR; DIST,MAINSHAFT BRG | 1 | 1811- | GXZ | (B) ID=65 OD=71 | ||
| 060 | I8-98186 253-0 | COLLAR; REV MAIN | 1 | 1811- | GXZ | |||
| 613 | I8-98228 932-0 | GEAR; LOW,MAINSHAFT | 1 | 1811- | GXZ | Z=39 | ||
| 109 | I1-09810 047-1 | BEARING; COUNTER SHAFT,RR | 1 | 1811- | GXZ | |||
| 084 | I8-98113 596-0 | BEARING; COUNTER SHAFT, FRT | 1 | 1811- | GXZ | |||
| 334 | I8-98096 948-0 | SHAFT; PLANETARY GEAR | 5 | 1811- | GXZ | (A) | ||
| 104 | I8-98228 936-0 | GEAR; 4TH,COUNTER | 1 | 1811- | GXZ | Z=43 | ||
| 362 | I8-98186 252-0 | COLLAR; 2ND GEAR | 1 | 1811- | GXZ | |||
| 149 | I1-09810 047-1 | BEARING; NEEDLE, MAINSHAFT,RR | 1 | 1811- | GXZ | |||
| 241 | I1-09588 042-1 | RING; SNAP | 1 | 1811- | GXZ | (A) ID=59.5 T=2.5 | ||
| 080 | I8-98268 311-0 | GEAR; SPD DRIVE | 1 | 1811- | GXZ | Z=10 | ||
| 345 | I1-09046 013-0 | BOLT; FLANGE TO YOKE | 4 | 1811- | GXZ | M14X48.5 | ||
| 330 | I8-98270 091-0 | GEAR; SUN | 1 | 1811- | GXZ | Z=32 | ||
| 324 | I8-98228 950-0 | HUB; CLU | 1 | 1811- | GXZ | (B) | ||
| 357 | I1-31349 015-0 | RING | 2 | 1811- | GXZ | |||
| 336 | I8-98113 604-0 | WASHER; THRUST,PLANETARY GEAR | 10 | 1811- | GXZ | ID=26.1 OD=54 | ||
| 484 | I8-98240 719-0 | PLATE; SETTING | 1 | 1811- | GXZ | |||
| 045 | I1-09583 171-0 | SPRING; BLOCK INSERT | 6 | 1811- | GXZ | (B) | ||
| 437 | I8-98230 391-0 | PLATE; LOCK | 1 | 1811- | GXZ | |||
| 340 | I8-98228 949-1 | GEAR; RING | 1 | 1811- | GXZ | Z=28 | ||
| 619 | I8-97039 526-0 | PLUG; OUTPUT SHAFT | 5 | 1811- | GXZ | OD=8 | ||
| 400 | I8-98289 488-0 | BEARING; OUTPUT SHAFT RR | 1 | 1811- | GXZ | |||
| 149 | I1-09810 047-1 | BEARING; NEEDLE, MAINSHAFT,RR | 1 | 1811- | GXZ | |||
| 488 | I8-98316 632-0 | CLUTCH; DOG,RANGE | 1 | 1811- | GXZ | (B) | ||
| 322 | I8-98228 941-1 | SLEEVE; SYN,LOW & 2ND | 1 | 1811- | GXZ | |||
| 074 | I1-33239 035-2 | WASHER; THRUST,REV GEAR | 1 | 1811- | GXZ | ID=55.5 OD=95 | ||
| 231 | I1-33263 020-0 | PLUNGER | 3 | 1811- | GXZ | (B) | ||
| 039 | I8-98228 939-0 | HUB; CLU,LOW & 2ND | 1 | 1811- | GXZ | |||
| 324 | I8-98316 636-0 | HUB; CLU | 1 | 1811- | GXZ | (A) | ||
| 007 | I8-98113 605-0 | WASHER; THRUST,MAINSHAFT | 1 | 1811- | GXZ | (B) ID=45.2 OD=70 | ||
| 056 | I8-98113 599-0 | BEARING; NEEDLE,1ST,REV | 2 | 1811- | GXZ | (A) | ||
| 108 | I8-98228 934-2 | SHAFT; COUNTER | 1 | 1811- | GXZ | Z=15-15 | ||
| 020 | I8-98228 943-1 | SLEEVE | 1 | 1811- | GXZ | |||
| 135 | I8-98228 938-1 | GEAR; REV IDLER | 1 | 1811- | GXZ | Z=25 | ||
| 027 | I8-98113 600-0 | BEARING; 4TH GEAR | 2 | 1811- | GXZ | |||
| 082 | I8-98228 923-0 | SHAFT; MAIN,TRANS | 1 | 1811- | GXZ | Z=28-34-26-19 | ||
| 030 | I8-98228 929-0 | GEAR; 4TH,MAINSHAFT | 1 | 1811- | GXZ | L=30-66 | ||
| 109 | I1-09810 047-1 | BEARING; COUNTER SHAFT,RR | 1 | 1811- | GXZ | |||
| 615 | I8-98228 940-0 | HUB; CLU,LOW & REV | 1 | 1811- | GXZ | |||
| 229 | I1-09580 395-0 | SPRING; PLUNGER | 6 | 1811- | GXZ | D=3.8 | ||
| 491 | I8-98191 425-0 | PLATE; OUTPUT SHAFT | 1 | 1811- | GXZ | |||
| 493 | I9-09561 363-0 | GASKET; OUTPUT SHAFT | 1 | 1811- | GXZ | ID=59.6 | ||
| 010 | I9-09180 168-0 | RING; SNAP,PILOT BRG | 1 | 1811- | GXZ | OD=72.5 | ||
| 216 | I1-33263 025-2 | INSERT; CLU HUB,2ND TO 3RD | 3 | 1811- | GXZ | |||
| 042 | I8-98228 942-1 | SLEEVE | 1 | 1811- | GXZ | |||
| 241 | I1-09588 160-1 | RING; SNAP | 1 | 1811- | GXZ | (B) ID=55.8 T=2.53 WHITE | ||
| 128 | I8-98240 827-0 | WASHER; THRUST,REV SHAFT | 2 | 1811- | GXZ | ID=38.5 OD=74 | ||
| 002 | I1-09588 134-0 | RING; SNAP,TOP GEAR SHAFT | AR | 1811- | GXZ | ID=66 T=2.64 GREEN | ||
| 496 | I8-98113 597-0 | BEARING; PLANETARY | AR | 1811- | GXZ | |||
| 056 | I8-98192 239-0 | BEARING; NEEDLE,1ST,REV | 1 | 1811- | GXZ | (B) | ||
| 031 | I8-98235 208-0 | RING; BLOCK,3RD & 4TH | 2 | 1811- | GXZ | |||
| 166 | I8-98096 545-0 | PIECE; DIST | 1 | 1811- | GXZ | (A) ID=67 OD=89.5 T=14.5 | ||
| 495 | I8-98270 092-0 | PINION; PLANETARY | 5 | 1811- | GXZ | Z=32-88 | ||
| 110 | I8-98113 724-0 | RING; SNAP,COUNTER BRG | 1 | 1811- | GXZ | |||
| 002 | I1-09588 133-0 | RING; SNAP,TOP GEAR SHAFT | AR | 1811- | GXZ | ID=66 T=2.60 BLUE | ||
| 618 | I8-98315 334-0 | GEAR; 1ST & 2ND,COUNTER | 1 | 1811- | GXZ | Z=24-23 | ||
| 487 | I8-98251 616-0 | SYNCHRONIZER; RANGE CHANGE | 2 | 1811- | GXZ | |||
| 002 | I1-09588 131-0 | RING; SNAP,TOP GEAR SHAFT | AR | 1811- | GXZ | ID=66 T=2.53 WHITE | ||
| 045 | I1-09580 091-1 | SPRING; BLOCK INSERT | 3 | 1811- | GXZ | (A) D=6.2 | ||
| 096 | I8-98228 935-0 | GEAR; COUNTER DRIVE | 1 | 1811- | GXZ | Z=35 | ||
| 001 | I8-98228 921-1 | SHAFT; TOP GEAR,TRANS | 1 | 1811- | GXZ | Z=33 | ||
| 485 | I8-98269 692-0 | PIECE; GUIDE | 1 | 1811- | GXZ | |||
| 334 | I8-98268 307-0 | SHAFT; PLANETARY GEAR | 1 | 1811- | GXZ | (B) Z=33 | ||
| 492 | I1-09000 740-0 | BOLT; PLATE | 2 | 1811- | GXZ | M12X60 | ||
| 050 | I8-98228 927-0 | GEAR; 2ND,MAINSHAFT | 1 | 1811- | GXZ | L=30-66 | ||
| 120 | I8-98228 952-0 | SLEEVE | 1 | 1811- | GXZ | |||
| 093 | I8-98113 724-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1811- | GXZ | |||
| 129 | I8-98240 826-0 | BEARING; NEEDLE,IDLER | 1 | 1811- | GXZ | |||
| 218 | I1-09580 091-1 | SPRING; INSERT,CLU HUB,2ND TO 3RD | 3 | 1811- | GXZ | D=6.2 | ||
| 008 | I1-33219 008-0 | CLIP; DOG CLU | 1 | 1811- | GXZ | |||
| 231 | I1-33269 037-1 | PLUNGER | 6 | 1811- | GXZ | (A) | ||
| 488 | I8-98228 955-0 | CLUTCH; DOG,RANGE | 1 | 1811- | GXZ | (A) | ||
| 323 | I1-33263 025-2 | INSERT | 3 | 1811- | GXZ | |||
| 571 | I8-98113 739-0 | RING; SNAP,BRG | 1 | 1811- | GXZ | |||
| 132 | I8-98230 418-0 | SHAFT; REV | 1 | 1811- | GXZ | |||
| 016 | I8-98316 648-0 | BEARING; PILOT,MAINSHAFT | 16 | 1811- | GXZ | |||
| 078 | I8-98096 910-0 | COLLAR; DIST,MAINSHAFT BRG | 2 | 1811- | GXZ | (A) ID=79 OD=85 | ||
| 003 | I8-98113 595-0 | BEARING; TOP GEAR SHAFT | 1 | 1811- | GXZ | |||
| 133 | I8-98242 203-0 | SCREW; SET,REV SHAFT | 1 | 1811- | GXZ | M10X32.5 | ||
| 070 | I8-98315 332-0 | GEAR; 1ST,MAINSHAFT | 1 | 1811- | GXZ | Z=43 | ||
| 497 | I8-98113 594-0 | BEARING; RING GEAR | 1 | 1811- | GXZ | |||
| 172 | I8-98113 723-0 | RING; SNAP,CLU HUB | 1 | 1811- | GXZ | |||
| 297 | I8-98113 602-0 | NUT; LOCK | 1 | 1811- | GXZ | |||
| 342 | I8-98228 961-1 | FLANGE; OUTPUT | 1 | 1811- | GXZ | |||
| 241 | I8-98113 740-0 | RING; SNAP | 1 | 1811- | GXZ | (C) ID=226.2 T=3 | ||
| 166 | I8-98196 262-0 | PIECE; DIST | 5 | 1811- | GXZ | (B) ID=26.3 OD=43.7 T=3.8 | ||
| 332 | I1-09748 032-0 | PIN; LOCK,SHAFT | 5 | 1811- | GXZ | L=25 OD=5 | ||
| 007 | I1-33239 262-0 | WASHER; THRUST,MAINSHAFT | 2 | 1811- | GXZ | (A) ID=59.2 OD=67.2 | ||
| 123 | I1-33269 035-1 | BLOCK; INDEX,SYN | 6 | 1811- | GXZ | |||
| 620 | I8-98186 285-0 | SHAFT; LOCK | 4 | 1811- | GXZ | |||
| 467 | I8-98194 774-0 | COLLAR; SHAFT | 1 | 1811- | GXZ | |||
| 059 | I8-98228 933-0 | GEAR; REV MAINSHAFT | 1 | 1811- | GXZ | Z=34 | ||
| 033 | I8-98113 599-0 | BEARING; NEEDLE,3RD GEAR | 2 | 1811- | GXZ | |||
| 614 | I8-98113 598-0 | BEARING; LOW | 1 | 1811- | GXZ | |||
| 382 | I1-09985 182-0 | WASHER; PL | 1 | 1811- | GXZ | OD=18 T=2.0 | ||
| 002 | I1-09588 132-0 | RING; SNAP,TOP GEAR SHAFT | AR | 1811- | GXZ | ID=66 T=2.56 YELLOW | ||
| 009 | I1-33265 152-3 | CLUTCH; DOG,TOP GEAR | 1 | 1811- | GXZ | Z=54 | ||
| 043 | I1-33261 186-2 | HUB; CLU,3RD & 4TH,MAIN | 1 | 1811- | GXZ |
