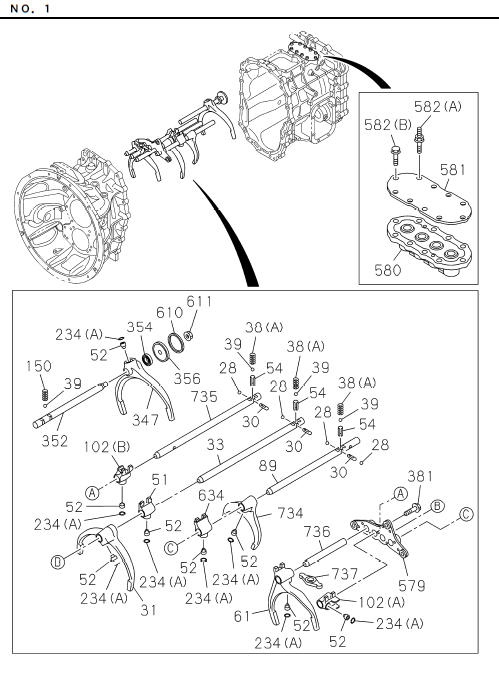

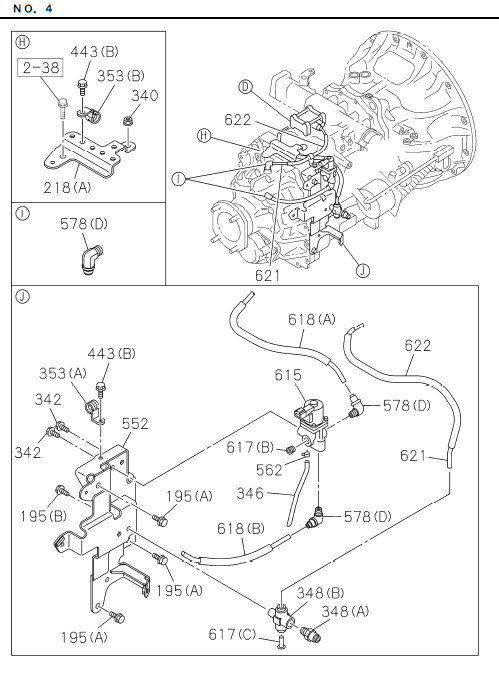

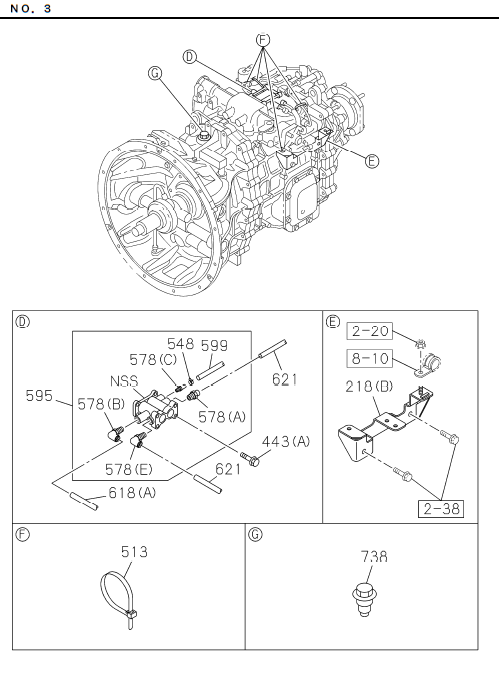

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 548 | I1-33712 028-0 | CLIP; HOSE | 1 | 1811- | GXZ | |||
| 195 | I0-28050 816-0 | BOLT | 1 | 1811- | GXZ | (B) M8X16 FLANGE | ||
| 601 | I1-33545 011-0 | COVER; SHAFT,SELECT | 1 | 1811- | GXZ | |||
| 342 | I0-28050 816-0 | BOLT | 2 | 1811- | GXZ | M8X16 FLANGE | ||
| 634 | I8-98228 903-0 | BLOCK; SHIFT,LOW,REV | 1 | 1811- | GXZ | |||
| 292 | I1-09440 062-1 | NUT; LINK ROD | 2 | 1811- | GXZ | (B) M8 FLANGE | ||
| 218 | I8-98230 290-0 | BRACKET; HARNESS CLIP, QUAD BOX | 1 | 1811- | GXZ | (A) | ||
| 274 | I8-98220 886-0 | COVER; SHAFT,QUAD BOX | 1 | 1811- | GXZ | |||
| 340 | I0-91180 108-0 | NUT; BRKT | 1 | 1811- | GXZ | M8 FLANGE | ||
| 181 | I1-09532 008-0 | WASHER; PL,SELECT LEVER | 1 | 1811- | GXZ | OD=40 | ||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 1811- | GXZ | |||
| 443 | I0-28050 890-0 | BOLT; CLIP | 4 | 1811- | GXZ | (A) M8X90 FLANGE | ||
| 052 | I8-98234 145-0 | BOLT; SHIFT ARM | 8 | 1811- | GXZ | |||
| 622 | I1-87411 019-0 | TUBE; CORRUGATE | 2 | 1811- | GXZ | ID=10 | ||
| 341 | I0-44011 035-0 | STUD; QUAD BOX | 5 | 1811- | GXZ | M10X35 L=50 | ||
| 195 | I0-28151 020-0 | BOLT | 3 | 1811- | GXZ | (A) M10X20 FLANGE | ||
| 381 | I1-09040 091-1 | BOLT | 3 | 1811- | GXZ | M10X34 FLANGE REAMER | ||
| 582 | I8-98034 764-0 | BOLT; SPRING GUIDE | 9 | 1811- | GXZ | (B) M8X30 FLANGE | ||
| 599 | I1-33712 027-0 | TUBE; NYLON | 1 | 1811- | GXZ | |||
| 474 | I8-98222 569-0 | WASHER; SPRING STOPPER | 2 | 1811- | GXZ | |||
| 259 | I1-33519 135-0 | GUIDE; SELECT,CONT BOX | 1 | 1811- | GXZ | |||
| 234 | I0-91800 616-0 | RING; SNAP | 2 | 1811- | GXZ | (B) ID=14.7 | ||
| 243 | I0-28050 820-0 | BOLT; COVER | 6 | 1811- | GXZ | (A) M8X20 FLANGE | ||
| 735 | I8-98186 259-0 | ROD; SHIFT,3RD & 4TH BLOCK | 1 | 1811- | GXZ | L=421.7 | ||
| 578 | I1-33712 023-0 | CONNECTOR | 1 | 1811- | GXZ | (A) | ||
| 552 | I8-98230 401-0 | BRACKET | 1 | 1811- | GXZ | |||
| 613 | I0-28151 240-0 | BOLT; AIR CYL | 3 | 1811- | GXZ | M12X40 FLANGE | ||
| 315 | I8-98342 614-0 | LEVER; SELECT | 1 | 1811- | GXZ | |||
| 737 | I1-33511 560-1 | LEVER; SHIFT,3RD & 4TH | 1 | 1811- | GXZ | |||
| 617 | I8-98042 944-0 | PLUG | 1 | 1811- | GXZ | (A) M14X9 | ||
| 051 | I8-98228 908-0 | BLOCK; SHIFT,1ST & 2ND | 1 | 1811- | GXZ | |||
| 609 | I8-98295 973-0 | BODY; AIR,CYL | 1 | 1811- | GXZ | |||
| 121 | I8-98042 944-0 | PLUG; DETENT SPR | 2 | 1811- | GXZ | M14X9 | ||
| 038 | I1-09580 580-0 | SPRING; DETENT | 2 | 1811- | GXZ | (B) | ||
| 738 | I8-98186 280-0 | SPINDLE; 3RD & 4TH | 1 | 1811- | GXZ | |||
| 600 | I1-33263 037-0 | PLUNGER; VLV | 2 | 1811- | GXZ | |||
| 292 | I9-09111 508-A | NUT; LINK ROD | 2 | 1811- | GXZ | (A) M8 | ||
| 150 | I1-09580 379-0 | SPRING; DETENT BALL | 1 | 1811- | GXZ | |||
| 293 | I0-91610 708-0 | WASHER; PL,TAPER BOLT | 1 | 1811- | GXZ | ID=8.4 OD=22 | ||
| 187 | I1-33659 171-0 | BOLT; SELECT LEVER | 1 | 1811- | GXZ | M8X42 | ||
| 579 | I8-98228 919-0 | BLOCK; SHIFT,ROD GUIDE | 1 | 1811- | GXZ | |||
| 734 | I8-98228 911-0 | ARM; SHIFT,LOW & REV | 1 | 1811- | GXZ | |||
| 513 | I5-09707 030-1 | CLIP; BAND | 1 | 1811- | GXZ | L=250 | ||
| 433 | I1-09623 636-0 | GASKET; BUSHING | 2 | 1811- | GXZ | |||
| 033 | I8-98186 255-0 | ROD; SHIFT,LOW & 2ND | 1 | 1811- | GXZ | L=421.7 | ||
| 394 | I8-97492 687-0 | SWITCH; RANGE CHANGE | 1 | 1811- | GXZ | (A) | ||
| 296 | I1-09760 108-0 | ROD END | 2 | 1811- | GXZ | |||
| 443 | I0-28050 816-0 | BOLT; CLIP | 2 | 1811- | GXZ | (B) M8X16 FLANGE | ||
| 171 | I8-97640 725-0 | SWITCH; NEUTRAL | 1 | 1811- | GXZ | |||
| 354 | I1-33739 981-0 | SEAL; AIR CYL | 1 | 1811- | GXZ | |||
| 028 | I9-00097 501-0 | BALL; INTER LK | 4 | 1811- | GXZ | |||
| 271 | I1-33549 104-0 | BUSHING; QUAD BOX | 1 | 1811- | GXZ | (B) ID=28 OD=32 | ||
| 602 | I1-33263 037-0 | PLUNGER; DETENT | 2 | 1811- | GXZ | |||
| 353 | I1-09700 109-1 | CLIP; AIR HOSE | 1 | 1811- | GXZ | (A) ID=19 L=24 H=21 | ||
| 038 | I1-09580 379-0 | SPRING; DETENT | 3 | 1811- | GXZ | (A) | ||
| 611 | I0-91380 012-0 | NUT; SHAFT | 1 | 1811- | GXZ | M12 LOCK NUT FLANGE | ||
| 130 | I8-98339 428-1 | LEVER; SHIFT,INTERNAL | 1 | 1811- | GXZ | |||
| 581 | I8-98230 349-0 | COVER; BLOCK | 1 | 1811- | GXZ | |||
| 321 | I0-28181 022-0 | BOLT; BRKT,RELAY LEVER | 2 | 1811- | GXZ | M10X22 FLANGE | ||
| 218 | I8-98339 423-0 | BRACKET; HARNESS CLIP, QUAD BOX | 1 | 1811- | GXZ | (B) | ||
| 578 | I1-33712 026-0 | CONNECTOR | 1 | 1811- | GXZ | (C) | ||
| 319 | I8-98342 615-0 | BRACKET; SELECT LEVER | 1 | 1811- | GXZ | |||
| 298 | I8-98339 427-0 | SHAFT; SHIFT LEVER | 1 | 1811- | GXZ | |||
| 348 | I1-09661 129-0 | CONNECTOR; AIR HOSE | 1 | 1811- | GXZ | (B) DIN8 & RC3/8 3WAY | ||
| 157 | I8-98339 426-0 | BOX; QUAD,TRANS | 1 | 1811- | GXZ | |||
| 089 | I8-98186 260-0 | ROD; SHIFT,REV | 1 | 1811- | GXZ | L=366.7 | ||
| 234 | I9-09180 117-0 | RING; SNAP | 8 | 1811- | GXZ | (A) | ||
| 578 | I1-33712 024-0 | CONNECTOR | 1 | 1811- | GXZ | (B) | ||
| 348 | I1-09660 964-0 | CONNECTOR; AIR HOSE | 1 | 1811- | GXZ | (A) DIN8 & R3/8 STRAIGHT | ||
| 408 | I8-97492 689-0 | SWITCH; SELECT,4TH 5TH | 1 | 1811- | GXZ | |||
| 578 | I1-33712 025-0 | CONNECTOR | 1 | 1811- | GXZ | (E) | ||
| 054 | I1-09748 014-0 | PIN; SPR,SHIFT BLOCK | 3 | 1811- | GXZ | |||
| 243 | I0-28650 835-0 | BOLT; COVER | 4 | 1811- | GXZ | (B) M8X35 FLANGE | ||
| 285 | I1-33149 008-0 | BREATHER; AIR,QUAD BOX | 1 | 1811- | GXZ | |||
| 617 | I8-97320 204-0 | PLUG | 1 | 1811- | GXZ | (B) PT1/4 | ||
| 039 | I1-09843 012-0 | BALL; DETENT | 4 | 1811- | GXZ | |||
| 621 | I1-87411 006-0 | TUBE; NYLON | 2 | 1811- | GXZ | OD=8 | ||
| 339 | I7-05110 010-A | NUT; QUAD BOX | 5 | 1811- | GXZ | M10 FLANGE | ||
| 398 | I8-97492 687-0 | SWITCH; REV LAMP | 1 | 1811- | GXZ | |||
| 562 | I8-94246 958-0 | CLAMP; LOCKING | 1 | 1811- | GXZ | ID=7.8 | ||
| 030 | I9-33534 003-0 | PIN; INTER LK | 3 | 1811- | GXZ | |||
| 610 | I8-98230 377-0 | SEAL; PISTON | 1 | 1811- | GXZ | |||
| 736 | I8-98186 258-0 | ROD; SHIFT,3RD & 4TH ARM | 1 | 1811- | GXZ | L=160.5 | ||
| 513 | I5-09707 031-1 | CLIP; BAND | 4 | 1811- | GXZ | L=140 | ||
| 346 | I1-33739 872-0 | HOSE; AIR | 1 | 1811- | GXZ | ID=6 OD=9 L=150 | ||
| 271 | I1-33549 016-0 | BUSHING; QUAD BOX | 1 | 1811- | GXZ | (A) ID=20 OD=23 | ||
| 356 | I8-98072 216-0 | PISTON; AIR CYL | 1 | 1811- | GXZ | |||
| 295 | I8-98341 893-0 | ROD; LINK,RELAY LEVER | 1 | 1811- | GXZ | |||
| 324 | I0-28051 060-0 | BOLT; SHAFT | 1 | 1811- | GXZ | M10X60 FLANGE | ||
| 617 | I1-09661 616-0 | PLUG | 1 | 1811- | GXZ | (C) OD=8 PLASTIC | ||
| 353 | I1-09700 945-0 | CLIP; AIR HOSE | 1 | 1811- | GXZ | (B) ID=35 L=33 | ||
| 142 | I0-28751 030-0 | BOLT; QUAD BOX | 1 | 1811- | GXZ | M10X30 FLANGE | ||
| 588 | I1-09580 576-0 | SPRING; RETURN,QUADRANT BOX | 1 | 1811- | GXZ | |||
| 167 | I8-98232 015-0 | LEVER; SELECT,EXTERNAL | 1 | 1811- | GXZ | |||
| 347 | I8-98228 957-0 | ARM; SHIFT,RANGE CHANGE | 1 | 1811- | GXZ | |||
| 102 | I8-98228 909-0 | BLOCK; SHIFT,3RD & 4TH | 1 | 1811- | GXZ | (B) | ||
| 305 | I1-33529 028-0 | BOOT; LEVER SHAFT | 1 | 1811- | GXZ | |||
| 578 | I1-09660 649-1 | CONNECTOR | 4 | 1811- | GXZ | (D) DIN8 & R1/4 ELBOW | ||
| 289 | I1-09625 647-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1811- | GXZ | (A) OD=41 | ||
| 582 | I8-97365 378-0 | BOLT; SPRING GUIDE | 1 | 1811- | GXZ | (A) M8X15,M8X25 L=49 | ||
| 615 | I8-98222 558-0 | VALVE; MAGNETIC | 1 | 1811- | GXZ | |||
| 272 | I1-09588 213-0 | RING; SNAP,QUAD BOX | 1 | 1811- | GXZ | |||
| 289 | I1-09625 386-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1811- | GXZ | (B) OD=30 | ||
| 061 | I8-98228 915-0 | ARM; SHIFT,3RD & 4TH | 1 | 1811- | GXZ | |||
| 188 | I1-09440 062-1 | NUT; SELECT LEVER | 1 | 1811- | GXZ | M8 FLANGE | ||
| 031 | I8-98228 914-0 | ARM; SHIFT,LOW & 2ND | 1 | 1811- | GXZ | |||
| 323 | I1-33659 219-0 | NUT; LK,SELECT LEVER | 1 | 1811- | GXZ | |||
| 394 | I8-97492 689-0 | SWITCH; RANGE CHANGE | 1 | 1811- | GXZ | (B) | ||
| 102 | I8-98228 910-0 | BLOCK; SHIFT,3RD & 4TH | 1 | 1811- | GXZ | (A) | ||
| 580 | I8-98228 920-2 | BLOCK; INTERLOCK | 1 | 1811- | GXZ | |||
| 587 | I9-08160 420-0 | PIN; SHIFT GUIDE | 1 | 1811- | GXZ | |||
| 163 | I1-33522 171-1 | LEVER; SELECT,INTERNAL | 1 | 1811- | GXZ | |||
| 595 | I1-33712 008-2 | VALVE; RANGE | 1 | 1811- | GXZ | |||
| 352 | I8-98186 262-0 | ROD; SHIFT,RANGE CHANGE | 1 | 1811- | GXZ | L=292.3 | ||
| 618 | I8-98230 402-0 | TUBE; NYLON | 1 | 1811- | GXZ | (B) L=250 | ||
| 335 | I1-33659 220-0 | COLLAR; DIST,RELAY LEVER ASM | 1 | 1811- | GXZ | |||
| 618 | I8-98222 734-0 | TUBE; NYLON | 1 | 1811- | GXZ | (A) L=400 | ||
| 359 | I1-09623 403-0 | GASKET; AIR CYL | 1 | 1811- | GXZ |
