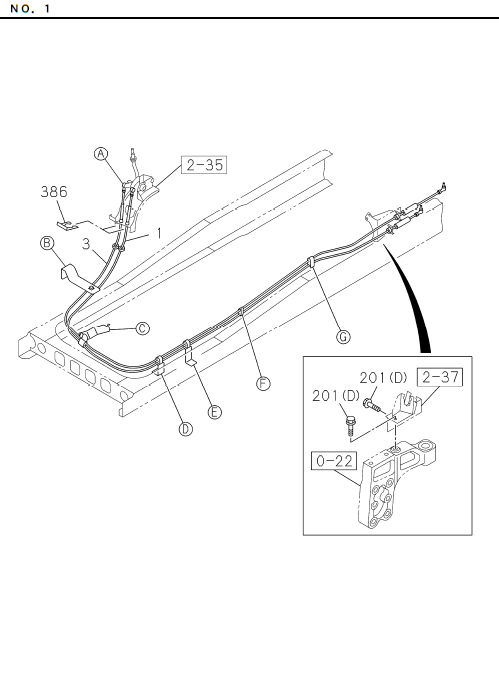

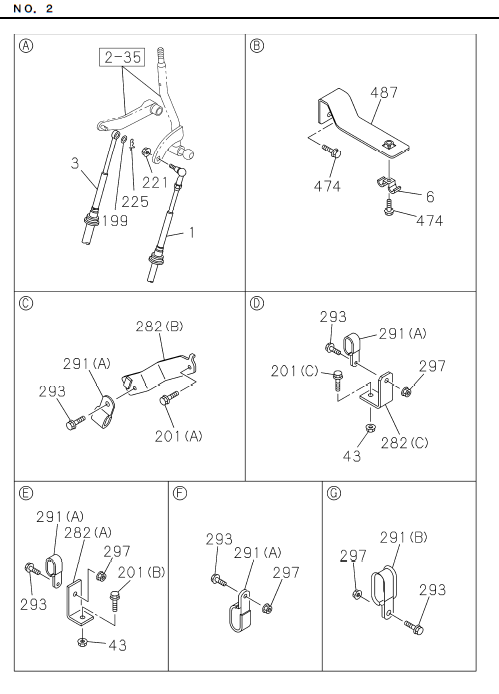

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 201 | I0-28050 830-0 | BOLT; BRKT | 1 | 1811- | GXZ | (C) M8X30 FLANGE | ||
| 297 | I0-91180 108-0 | NUT; CLIP | 4 | 1811- | GXZ | M8 FLANGE | ||
| 291 | I8-97389 264-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 1811- | GXZ | (B) ID=13 & 13 L=32 | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 1811- | GXZ | ID=8.4 OD=16 | ||

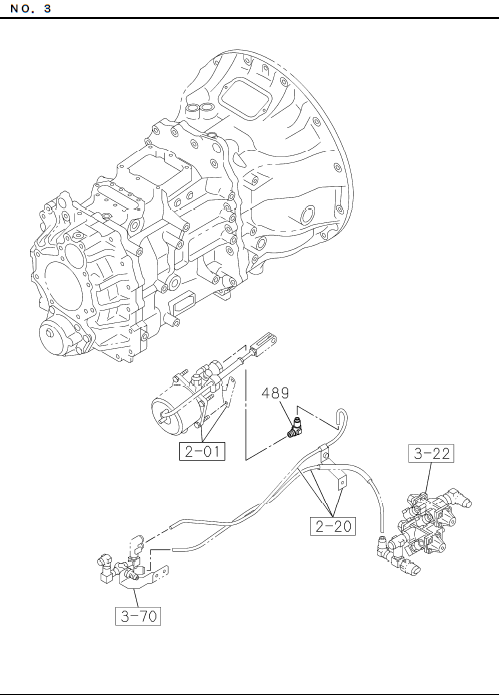

| 489 | I1-09660 957-0 | CONNECTOR | 1 | 1811- | GXZ | DIN8 & R3/8 ELBOW | ||
| 282 | I8-98311 141-0 | BRACKET; TRANS SIDE | 1 | 1811- | GXZ | (C) | ||
| 282 | I8-98311 140-0 | BRACKET; TRANS SIDE | 1 | 1811- | GXZ | (B) | ||
| 291 | I0-95325 026-0 | CLIP; SHIFT TO SELECT,FRAME | 4 | 1811- | GXZ | (A) ID=11X2 L=16 | ||
| 201 | I0-28050 820-0 | BOLT; BRKT | 1 | 1811- | GXZ | (A) M8X20 FLANGE | ||
| 043 | I0-91180 108-0 | NUT; BRKT | 2 | 1811- | GXZ | M8 FLANGE | ||
| 201 | I0-28151 016-0 | BOLT; BRKT | 2 | 1811- | GXZ | (D) M10X16 FLANGE | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 1811- | GXZ | |||
| 006 | I1-09700 739-0 | CLIP; CABLE | 1 | 1811- | GXZ | ID=11 & 11 L=17.5 & 17.5 | ||
| 201 | I0-28050 825-0 | BOLT; BRKT | 1 | 1811- | GXZ | (B) M8X25 FLANGE | ||
| 282 | I1-47475 304-0 | BRACKET; TRANS SIDE | 1 | 1811- | GXZ | (A) L=55 | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 1811- | GXZ | M8 FLANGE | ||
| 003 | I8-98271 996-1 | CABLE; SELECT,TRANS CONT | 1 | 1811- | GXZ | L=3725 | ||
| 001 | I8-98271 994-1 | CABLE; SHIFT,TRANS CONT | 1 | 1811- | GXZ | L=3795 | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 1811- | GXZ | L=27.7 | ||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 1811- | GXZ | M8X25 W/WASHER | ||
| 487 | I8-98311 154-0 | BRACKET; CONT CABLE | 1 | 1811- | GXZ | |||
| 293 | I0-28050 820-0 | BOLT; CLIP,SHIFT TO SELECT | 5 | 1811- | GXZ | M8X20 FLANGE |
