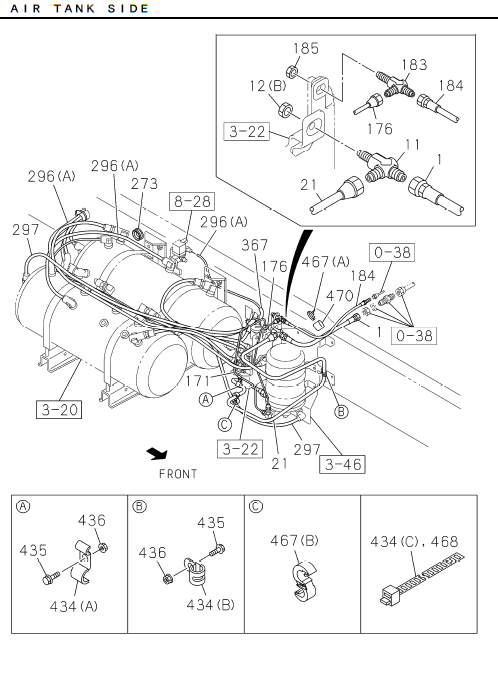

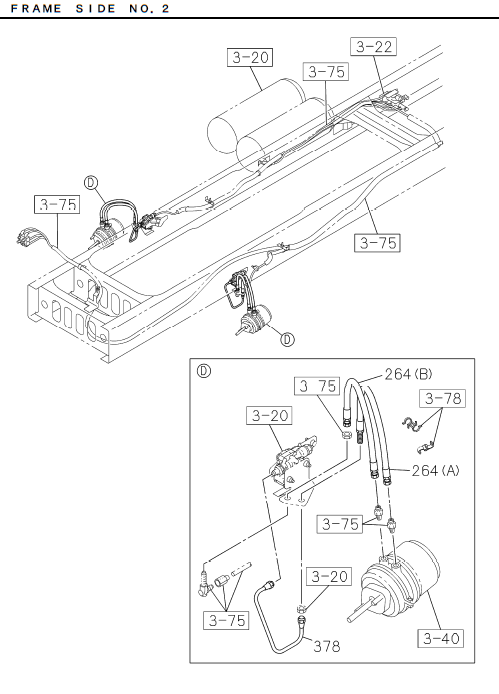

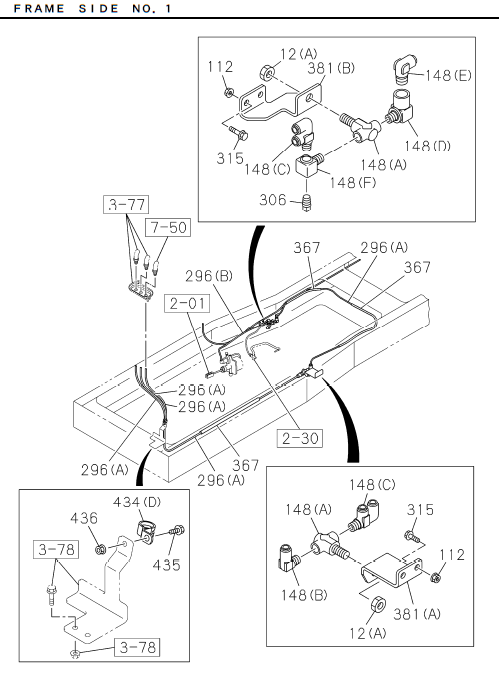

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 183 | I1-09654 059-2 | UNION; FLEX HOSE,GOV | 1 | 1811- | GXZ | M12 2WAY | ||
| 467 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 1811- | GXZ | (B) ID=12 & 15 | ||
| 297 | I1-87411 010-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=8 | ||
| 434 | I1-09700 862-0 | CLIP | 1 | 1811- | GXZ | (D) ID=24.5 H=23 L=25 | ||
| 176 | I8-98359 811-0 | PIPE; AIR,AIR DRYER TO UNION | 1 | 1811- | GXZ | L=439 | ||
| 296 | I1-87411 001-0 | TUBE; NYLON | AR | 1811- | GXZ | (A) OD=6 | ||
| 297 | I1-87411 011-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=12 | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1811- | GXZ | ID=13 | ||
| 021 | I8-98359 810-0 | PIPE; AIR,UNION TO AIR DRYER | 1 | 1811- | GXZ | L=1865 | ||
| 381 | I8-98312 051-0 | BRACKET | 1 | 1811- | GXZ | (A) AIR SUSP DRIVER SEAT | ||
| 297 | I1-87411 014-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=12 | ||
| 367 | I1-87411 027-0 | TUBE; CORRUGATE | AR | 1811- | GXZ | ID=19 | ||
| 148 | I8-98166 517-0 | CONNECTOR; UNION | 1 | 1811- | GXZ | (F) R1/4 & RC1/4X2 3WAY | ||
| 148 | I8-98227 936-0 | CONNECTOR; UNION | 1 | 1811- | GXZ | (D) R1/4 & RC3/8 ELBOW | ||
| 264 | I8-98324 765-0 | HOSE; FLEX | 2 | 1811- | GXZ | (A) L=620 | ||
| 273 | I9-09956 256-2 | GROMMET | 1 | 1811- | GXZ | ID=28 OD=35 T=17 | ||
| 315 | I0-28650 830-0 | BOLT; CONNECTOR | 2 | 1811- | GXZ | M8X30 FLANGE ; AIR SUSP DRIVER SEAT | ||
| 297 | I1-87411 013-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=12 | ||
| 378 | I8-98311 983-0 | PIPE; AIR,UNION TO MODULATOR | 1 | 1811- | GXZ | L=345 | ||
| 148 | I8-98179 708-0 | CONNECTOR; UNION | 1 | 1811- | GXZ | (C) DIN8X2 & PT1/4 DOUBLE ELBOW ; AIR SUSP DRIVER SEAT | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 1811- | GXZ | (A) OD=12 | ||
| 148 | I1-09660 957-0 | CONNECTOR; UNION | 1 | 1811- | GXZ | (E) DIN8 & R3/8 ELBOW | ||
| 185 | I0-91111 512-0 | NUT; FLEX HOSE,AIR GOV | 1 | 1811- | GXZ | M12 | ||
| 468 | I5-09707 030-1 | CLIP; BAND | 1 | 1811- | GXZ | L=250 | ||
| 381 | I8-98341 811-0 | BRACKET | 1 | 1811- | GXZ | (B) | ||
| 434 | I1-09700 675-0 | CLIP | 1 | 1811- | GXZ | (A) ID=16 & 7 L=21 & 17 | ||
| 148 | I1-09661 067-0 | CONNECTOR; UNION | 1 | 1811- | GXZ | (B) DIN6 & R1/4 ELBOW ; AIR SUSP DRIVER SEAT | ||
| 264 | I8-98346 015-0 | HOSE; FLEX | 2 | 1811- | GXZ | (B) L=560 | ||
| 434 | I1-09707 183-0 | CLIP | 7 | 1811- | GXZ | (C) L=350 | ||
| 470 | I8-97695 339-A | INSULATOR; HOSE | 1 | 1811- | GXZ | ID=32 OD=36 L=50 | ||
| 012 | I7-05014 012-A | NUT; UNION | 1 | 1811- | GXZ | (B) M14 | ||
| 001 | I8-98245 381-0 | HOSE; FLEX,AIR TANK | 1 | 1811- | GXZ | L=420 | ||
| 112 | I0-91180 108-0 | NUT | 2 | 1811- | GXZ | M8 FLANGE ; AIR SUSP DRIVER SEAT | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 1811- | GXZ | ID=10 | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 1811- | GXZ | (A) M12 ; AIR SUSP DRIVER SEAT | ||
| 434 | I0-95235 536-0 | CLIP | 1 | 1811- | GXZ | (B) ID=16 L=20 | ||
| 297 | I1-87411 008-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=8 | ||
| 367 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 1811- | GXZ | ID=28 | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 3 | 1811- | GXZ | M8 FLANGE | ||
| 306 | I9-99204 513-0 | PLUG; NYLON TUBE | 1 | 1811- | GXZ | PT1/4 | ||
| 296 | I8-98484 098-A | TUBE; NYLON | 1 | 1811- | GXZ | (B) | ||
| 184 | I1-09363 654-0 | HOSE; FLEX,AIR GOV | 1 | 1811- | GXZ | L=560 | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 1811- | GXZ | (A) OD=8 | ||
| 467 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 1811- | GXZ | (A) L=350 | ||
| 297 | I1-87411 002-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=6 | ||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 1811- | GXZ | ID=25 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 1 | 1811- | GXZ | M8X20 FLANGE | ||
| 171 | I8-98185 671-A | PIPE; AIR,GOV TO AIR DRYER | 1 | 1811- | GXZ | L=694 | ||
| 148 | I8-98120 049-0 | CONNECTOR; UNION | 1 | 1811- | GXZ | (A) M12 & RC1/4X2 2WAY ; AIR SUSP DRIVER SEAT | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 1811- | GXZ | OD=12 | ||
| 367 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 1811- | GXZ | ID=32 | ||
| 378 | I8-98311 982-0 | PIPE; AIR,UNION TO MODULATOR | 1 | 1811- | GXZ | L=393 | ||
| 011 | I1-09650 172-1 | UNION; AIR PIPE | 1 | 1811- | GXZ | M22X2 & M14 3WAY |
