| 242 |
I0-20850 820-0 |
|
BOLT; COVER |
4 |
1811- |
|
GXZ |
M8X20 |
| 091 |
I1-41349 023-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=4.90 |
| 040 |
I1-41229 251-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.31 |
| 225 |
I1-41552 024-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=5.9 |
| 045 |
I0-16806 655-0 |
|
BOLT; FINAL PINION CAGE |
8 |
1811- |
|
GXZ |
(B) M16X55 |
| 091 |
I1-41349 091-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=4.50 |
| 025 |
I1-41552 017-0 |
|
WASHER; THRUST,PINION |
8 |
1811- |
|
GXZ |
(A) T=1.6 |
| 374 |
I1-09609 020-1 |
|
PLUG; INPUT SHAFT |
1 |
1811- |
|
GXZ |
|
| 225 |
I1-41552 033-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.8 |
| 040 |
I1-41229 249-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.29 |
| 088 |
I9-41124 005-0 |
|
PLATE; LK,ADJ NUT |
4 |
1811- |
|
GXZ |
(B) T=1.0 |
| 024 |
I8-97795 734-0 |
|
GEAR; PINION,DIFF |
8 |
2102- |
|
GXZ |
(A) Z=10 |
| 052 |
I1-41343 020-0 |
|
SHAFT; OUTPUT |
1 |
1811- |
|
GXZ |
|
| 042 |
I1-41229 237-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=7.60 |
| 043 |
I1-41151 030-0 |
|
CAGE; FINAL PINION |
1 |
1811- |
|
GXZ |
(B) T=81 |
| 042 |
I1-41229 241-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=8.40 |
| 071 |
I1-41510 141-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
2 |
1811- |
|
GXZ |
|
| 029 |
I1-41349 146-0 |
|
SHIM; BRG RET |
AR |
1811- |
|
GXZ |
T=0.30 |
| 031 |
I1-41352 026-0 |
|
GEAR; DRIVEN,HELICAL |
1 |
1811- |
|
GXZ |
(B) Z=31 |
| 042 |
I1-41229 243-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=8.80 |
| 020 |
I1-41562 113-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=2.9 |
| 010 |
I1-09812 198-0 |
|
BEARING; INPUT SHAFT |
1 |
1811- |
|
GXZ |
(B) NSK |
| 049 |
I1-41154 024-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(B) T=0.50 |
| 035 |
I0-91510 814-0 |
|
WASHER; CASE TO CARRIER |
10 |
1811- |
|
GXZ |
ID=14.2 |
| 068 |
I0-28050 810-0 |
|
BOLT; OIL PICKUP FIX |
2 |
1811- |
|
GXZ |
M8X12 FLANGE |
| 095 |
I1-09449 067-0 |
|
NUT; OUTPUT SHAFT |
1 |
1811- |
|
GXZ |
M36 FLANGE |
| 360 |
I1-48269 066-0 |
|
FORK; SHIFT |
1 |
1811- |
|
GXZ |
|
| 010 |
I1-09812 183-0 |
|
BEARING; INPUT SHAFT |
1 |
1811- |
|
GXZ |
(C) NSK |
| 225 |
I1-41552 027-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.2 |
| 060 |
I6-41210 604-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
1811- |
|
GXZ |
(IADG) (B) 39/7 |
| 225 |
I1-41552 030-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.5 |
| 049 |
I1-41154 025-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(B) T=1.00 |
| 369 |
I1-09604 023-0 |
|
PLUG; STRAINER |
1 |
1811- |
|
GXZ |
M24X17 FLANGE |
| 040 |
I1-41229 248-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.28 |
| 225 |
I1-41552 026-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.1 |
| 098 |
I0-28751 025-0 |
|
BOLT; SHIFT UNIT TO CARRIER |
3 |
1811- |
|
GXZ |
M10X25 FLANGE |
| 384 |
I0-91111 510-0 |
|
NUT; LK,SHIFT UNIT |
1 |
1811- |
|
GXZ |
M10 |
| 287 |
I1-48262 012-0 |
|
PISTON; SHIFT UNIT |
1 |
1811- |
|
GXZ |
|
| 042 |
I1-41229 244-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=9.00 |
| 042 |
I1-41229 242-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=8.60 |
| 041 |
I1-41229 239-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=8.00 |
| 005 |
I1-09623 386-0 |
|
GASKET; INPUT SHAFT |
1 |
1811- |
|
GXZ |
ID=57 |
| 037 |
I6-09449 061-0 |
|
NUT; DRIVING PINION |
1 |
1811- |
|
GXZ |
(IADG) (A) M42 |
| 034 |
I0-23851 440-0 |
|
BOLT; CASE TO CARRIER |
10 |
1811- |
|
GXZ |
M14X40 |
| 126 |
I1-37245 336-0 |
|
COUPLING; DRIVING PINION |
1 |
1811- |
|
GXZ |
|
| 366 |
I0-10805 840-0 |
|
BOLT; PUMP |
4 |
1811- |
|
GXZ |
M8X40 |
| 025 |
I1-41552 023-0 |
|
WASHER; THRUST,PINION |
4 |
1811- |
|
GXZ |
(B) T=1.6 |
| 049 |
I1-41154 074-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(A) T=0.40 |
| 092 |
I9-09180 185-0 |
|
RING; SNAP,BRG,OUTPUT SHAFT |
1 |
1811- |
|
GXZ |
OD=90.5 |
| 016 |
I1-41341 025-0 |
|
SHAFT ASM; INPUT |
1 |
1811- |
|
GXZ |
|
| 040 |
I1-41229 253-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.33 |
| 022 |
I1-41521 037-2 |
|
SPIDER; DIFF PINION |
2 |
1811- |
|
GXZ |
(A) OD=35 |
| 091 |
I1-41349 021-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=4.70 |
| 022 |
I1-41521 049-2 |
|
SPIDER; DIFF PINION |
1 |
1811- |
|
GXZ |
(B) |
| 029 |
I1-41349 147-0 |
|
SHIM; BRG RET |
AR |
1811- |
|
GXZ |
T=0.40 |
| 069 |
I1-41121 001-0 |
|
NUT; ADJ,DIFF CAGE |
2 |
1811- |
|
GXZ |
M155 H=26 |
| 066 |
I1-09588 086-2 |
|
RING; SNAP,PILOT BRG |
2 |
1811- |
|
GXZ |
OD=37.2 |
| 225 |
I1-41552 031-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.6 |
| 090 |
I1-09812 068-0 |
|
BEARING; OUTPUT SHAFT |
2 |
1811- |
|
GXZ |
NSK |
| 040 |
I1-41229 245-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.25 |
| 003 |
I1-09449 071-0 |
|
NUT; INPUT SHAFT |
1 |
1811- |
|
GXZ |
M46 FLANGE |
| 010 |
I1-09812 198-0 |
|
BEARING; INPUT SHAFT |
1 |
1811- |
|
GXZ |
(B) JTEKT |
| 049 |
I1-41154 058-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(B) T=0.40 |
| 039 |
I1-09812 074-3 |
|
BEARING; FINAL PINION |
1 |
1811- |
|
GXZ |
(A) JTEKT |
| 065 |
I0-81122 012-0 |
|
PIN; SPLIT,RET |
4 |
1811- |
|
GXZ |
|
| 037 |
I1-09449 061-0 |
|
NUT; DRIVING PINION |
1 |
1811- |
|
GXZ |
(A) M42 |
| 091 |
I1-41349 026-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=5.20 |
| 060 |
I1-41210 476-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
1811- |
|
GXZ |
(A) 39/7 |
| 049 |
I1-41154 073-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(A) T=0.30 |
| 042 |
I1-41229 240-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=8.20 |
| 225 |
I1-41552 032-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.7 |
| 036 |
I9-08161 428-0 |
|
PIN; STRAIGHT |
2 |
1811- |
|
GXZ |
OD=14 L=28 |
| 056 |
I1-09070 042-0 |
|
BOLT; BRG CAP |
8 |
1811- |
|
GXZ |
M20X112 |
| 021 |
I1-41561 169-0 |
|
GEAR; SIDE,DIFF |
1 |
1811- |
|
GXZ |
(B) Z=16 |
| 097 |
I8-98353 294-0 |
|
SHIFT UNIT; DIFF LOCK |
1 |
1811- |
|
GXZ |
|
| 368 |
I1-09580 504-0 |
|
SPRING; STRAINER |
1 |
1811- |
|
GXZ |
|
| 060 |
I1-41210 604-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
1811- |
|
GXZ |
(B) 39/7 |
| 377 |
I1-09587 091-0 |
|
RING; SNAP,BRG,SIDE GEAR |
1 |
1811- |
|
GXZ |
|
| 006 |
I1-37245 343-0 |
|
FLANGE ASM; INPUT SHAFT |
1 |
1811- |
|
GXZ |
|
| 048 |
I0-91510 516-0 |
|
WASHER; LK,FINAL PINION |
8 |
1811- |
|
GXZ |
ID=16.2 |
| 054 |
I9-09830 243-0 |
|
STUD; FINAL DRIVE SET |
1 |
1811- |
|
GXZ |
M16X32 L=56 |
| 055 |
I1-41310 050-0 |
|
CARRIER; DIFF |
1 |
1811- |
|
GXZ |
(A) |
| 040 |
I1-41229 247-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.27 |
| 039 |
I1-09812 076-1 |
|
BEARING; FINAL PINION |
1 |
1811- |
|
GXZ |
(B) NSK |
| 001 |
I1-41003 621-0 |
|
DRIVE ASM; FINAL,RR |
1 |
1811- |
|
GXZ |
(A) 39/7 |
| 063 |
I1-09810 183-0 |
|
BEARING; PINION PILOT |
2 |
1811- |
|
GXZ |
JTEKT |
| 205 |
I0-91610 510-0 |
|
WASHER; PL |
1 |
1811- |
|
GXZ |
ID=10.5 |
| 098 |
I0-28151 050-0 |
|
BOLT; SHIFT UNIT TO CARRIER |
1 |
1811- |
|
GXZ |
M10X50 FLANGE |
| 085 |
I0-91110 516-0 |
|
NUT; DIFF CAGE SETTING |
24 |
1811- |
|
GXZ |
M16 |
| 029 |
I1-41349 149-0 |
|
SHIM; BRG RET |
AR |
1811- |
|
GXZ |
T=1.000 |
| 096 |
I1-09623 387-0 |
|
GASKET; SHAFT,OUTPUT |
1 |
1811- |
|
GXZ |
ID=42 |
| 225 |
I1-41552 025-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.0 |
| 226 |
I1-41562 267-0 |
|
WASHER; THRUST |
1 |
1811- |
|
GXZ |
|
| 083 |
I1-87411 787-0 |
|
CAGE ASM; DIFF |
1 |
1811- |
|
GXZ |
|
| 040 |
I1-41229 250-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.30 |
| 021 |
I1-41561 151-0 |
|
GEAR; SIDE,DIFF |
4 |
1811- |
|
GXZ |
(A) Z=16 |
| 008 |
I1-41349 145-0 |
|
SEAL; OIL,INPUT SHAFT |
2 |
1811- |
|
GXZ |
(B) |
| 067 |
I1-41129 008-0 |
|
PICKUP; OIL,CARRIER |
1 |
1811- |
|
GXZ |
|
| 225 |
I1-41552 035-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=7.0 |
| 356 |
I1-09660 649-1 |
|
NIPPLE; SHIFT UNIT |
1 |
1811- |
|
GXZ |
DIN8 & R1/4 ELBOW |
| 040 |
I1-41229 255-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.35 |
| 029 |
I1-41349 148-0 |
|
SHIM; BRG RET |
AR |
1811- |
|
GXZ |
T=0.50 |
| 093 |
I1-09625 217-0 |
|
SEAL; OIL,OUTPUT SHAFT |
1 |
1811- |
|
GXZ |
|
| 070 |
I1-09812 225-0 |
|
BEARING; DIFF CAGE |
4 |
1811- |
|
GXZ |
ID=92 OD=152 T=40 |
| 008 |
I1-09625 323-0 |
|
SEAL; OIL,INPUT SHAFT |
1 |
1811- |
|
GXZ |
(A) |
| 041 |
I1-41229 237-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=7.60 |
| 375 |
I1-09811 362-0 |
|
BEARING; SIDE GEAR |
1 |
1811- |
|
GXZ |
NSK |
| 041 |
I1-41229 241-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=8.40 |
| 010 |
I1-09812 182-0 |
|
BEARING; INPUT SHAFT |
1 |
1811- |
|
GXZ |
(C) JTEKT |
| 039 |
I1-09812 076-1 |
|
BEARING; FINAL PINION |
1 |
1811- |
|
GXZ |
(B) JTEKT |
| 084 |
I1-09009 049-1 |
|
BOLT; FINAL DRIVE GEAR |
32 |
1811- |
|
GXZ |
M18X38 FLANGE |
| 050 |
I1-09812 076-1 |
|
BEARING; FINAL PINION |
1 |
1811- |
|
GXZ |
(A) JTEKT |
| 037 |
I1-09449 071-0 |
|
NUT; DRIVING PINION |
1 |
1811- |
|
GXZ |
(B) M46 FLANGE |
| 370 |
I1-09623 058-0 |
|
GASKET; STRAINER |
1 |
1811- |
|
GXZ |
ID=26.8 |
| 024 |
I1-41551 053-0 |
|
GEAR; PINION,DIFF |
8 |
1811- |
|
GXZ |
(A) Z=10 |
| 091 |
I1-41349 020-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=4.60 |
| 020 |
I1-41562 118-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=3.4 |
| 069 |
I1-41121 002-0 |
|
NUT; ADJ,DIFF CAGE |
2 |
1811- |
|
GXZ |
M155 H=30 |
| 380 |
I1-48269 107-0 |
|
GASKET; PISTON |
1 |
1811- |
|
GXZ |
|
| 064 |
I0-91117 508-0 |
|
NUT; RET |
4 |
1811- |
|
GXZ |
M8 SLOTTED |
| 091 |
I1-41349 024-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=5.00 |
| 040 |
I1-41229 252-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.32 |
| 376 |
I1-41349 150-0 |
|
SPACER; BRG,SIDE GEAR |
1 |
1811- |
|
GXZ |
|
| 015 |
I1-41129 007-0 |
|
CATCHER; OIL |
1 |
1811- |
|
GXZ |
|
| 089 |
I0-20850 816-0 |
|
BOLT; LK PLATE |
8 |
1811- |
|
GXZ |
M8X16 |
| 091 |
I1-41349 092-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=5.40 |
| 033 |
I1-41321 024-1 |
|

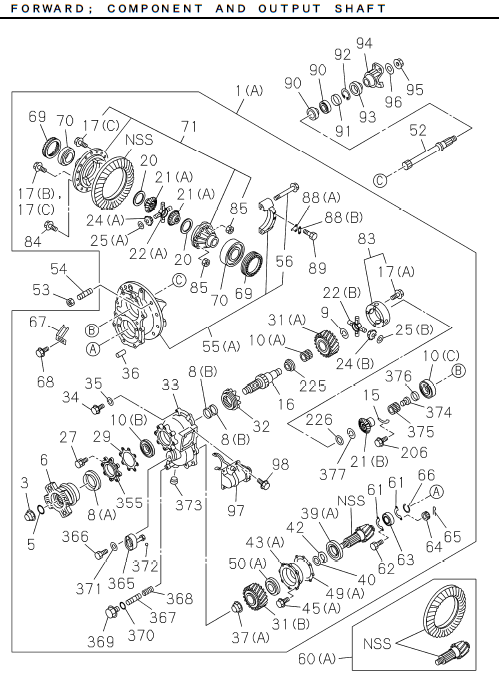

CASE; POWER DIVIDER |
1 |
1811- |
|
GXZ |
|
| 062 |
I1-09042 038-1 |
|
BOLT; RET |
4 |
1811- |
|
GXZ |
M8X40 W/PIN HOLE |
| 063 |
I1-09810 183-0 |
|
BEARING; PINION PILOT |
2 |
1811- |
|
GXZ |
NSK |
| 061 |
I1-41227 012-0 |
|
RETAINER; PILOT BRG,PINION |
4 |
1811- |
|
GXZ |
T=3.2 |
| 292 |
I1-48265 007-0 |
|

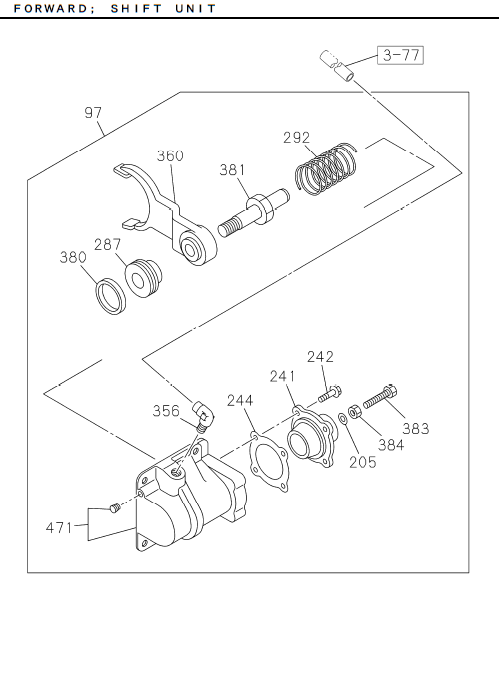

SPRING; PISTON |
1 |
1811- |
|
GXZ |
|
| 091 |
I1-41349 022-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=4.80 |
| 040 |
I1-41229 246-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.26 |
| 027 |
I0-50551 235-0 |
|
BOLT; BRG RET |
8 |
1811- |
|
GXZ |
M12X35 W/LK WASHER |
| 045 |
I1-09070 107-0 |
|
BOLT; FINAL PINION CAGE |
8 |
1811- |
|
GXZ |
(A) M16X40 |
| 040 |
I1-41229 254-0 |
|
SHIM; FINAL PINION |
AR |
1811- |
|
GXZ |
T=3.34 |
| 471 |
I1-48269 261-0 |
|
CYLINDER ASM; SHIFT UNIT |
1 |
1811- |
|
GXZ |
|
| 017 |
I1-09070 108-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
1811- |
|
GXZ |
(A) M10X55 |
| 041 |
I1-41229 240-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=8.20 |
| 375 |
I1-09811 348-0 |
|
BEARING; SIDE GEAR |
1 |
1811- |
|
GXZ |
JTEKT |
| 049 |
I1-41154 057-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(B) T=0.30 |
| 055 |
I1-41110 109-0 |
|
CARRIER; DIFF |
1 |
1811- |
|
GXZ |
(B) |
| 020 |
I1-41562 112-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=2.8 |
| 050 |
I1-09812 074-3 |
|
BEARING; FINAL PINION |
1 |
1811- |
|
GXZ |
(B) JTEKT |
| 004 |
I1-09623 386-0 |
|
GASKET; FLANGE,FINAL PINION |
1 |
1811- |
|
GXZ |
ID=57 |
| 206 |
I0-28050 810-0 |
|
BOLT; OIL CATCHER |
2 |
1811- |
|
GXZ |
M8X12 FLANGE |
| 041 |
I1-41229 243-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=8.80 |
| 041 |
I1-41229 244-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=9.00 |
| 383 |
I0-20801 045-0 |
|
BOLT; SET,SHIFT UNIT |
1 |
1811- |
|
GXZ |
M10X45 |
| 373 |
I1-09605 019-0 |
|
PLUG; CASE |
1 |
1811- |
|
GXZ |
PT1/4 |
| 041 |
I1-41229 238-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=7.80 |
| 100 |
I1-09625 322-0 |
|
SEAL; OIL,FINAL PINION |
1 |
1811- |
|
GXZ |
|
| 241 |
I1-48266 012-1 |
|
COVER; SHIFT HSG |
1 |
1811- |
|
GXZ |
|
| 031 |
I1-41351 044-0 |
|
GEAR; DRIVEN,HELICAL |
1 |
1811- |
|
GXZ |
(A) Z=16 |
| 001 |
I1-41001 393-0 |
|
DRIVE ASM; FINAL,RR |
1 |
1811- |
|
GXZ |
(B) 39/7 |
| 020 |
I1-41562 115-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=3.1 |
| 009 |
I1-09588 192-0 |
|
RING; SNAP,BRG,INPUT |
1 |
1811- |
|
GXZ |
|
| 355 |
I1-41227 016-0 |
|
RETAINER; BRG |
1 |
1811- |
|
GXZ |
|
| 024 |
I1-41551 055-0 |
|
GEAR; PINION,DIFF |
4 |
1811- |
|
GXZ |
(B) Z=10 |
| 017 |
I1-09070 007-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
1811- |
|
GXZ |
(B) M16X125 |
| 049 |
I1-41154 071-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(A) T=0.50 |
| 032 |
I1-41355 038-0 |
|
SLEEVE; CLU,DIFF LK |
1 |
1811- |
|
GXZ |
|
| 367 |
I1-41383 003-0 |
|
STRAINER; OIL PUMP |
1 |
1811- |
|
GXZ |
|
| 225 |
I1-41552 036-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=7.1 |
| 010 |
I1-09811 346-0 |
|
BEARING; INPUT SHAFT |
1 |
1811- |
|
GXZ |
(A) NSK |
| 244 |
I1-48269 062-0 |
|
GASKET; COVER |
1 |
1811- |
|
GXZ |
|
| 094 |
I1-37245 130-1 |
|
FLANGE ASM; OUTPUT SHAFT |
1 |
1811- |
|
GXZ |
|
| 091 |
I1-41349 027-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=5.30 |
| 371 |
I0-91510 808-0 |
|
WASHER; LK,PUMP |
4 |
1811- |
|
GXZ |
ID=8.2 |
| 225 |
I1-41552 029-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.4 |
| 053 |
I0-91110 516-0 |
|
NUT; FINAL DRIVE SET |
1 |
1811- |
|
GXZ |
M16 |
| 041 |
I1-41229 242-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
1811- |
|
GXZ |
T=8.60 |
| 043 |
I1-41151 053-0 |
|
CAGE; FINAL PINION |
1 |
1811- |
|
GXZ |
(A) T=53 |
| 381 |
I1-48263 005-0 |
|
ROD; SHIFT |
1 |
1811- |
|
GXZ |
|
| 042 |
I1-41229 239-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=8.00 |
| 050 |
I1-09812 076-1 |
|
BEARING; FINAL PINION |
1 |
1811- |
|
GXZ |
(A) NSK |
| 021 |
I8-97795 807-0 |
|
GEAR; SIDE,DIFF |
4 |
2102- |
|
GXZ |
(A) Z=16 |
| 020 |
I1-41562 114-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=3.0 |
| 042 |
I1-41229 238-0 |
|
COLLAR; DIST,COLLAPSIBLE |
AR |
1811- |
|
GXZ |
T=7.80 |
| 090 |
I1-09812 069-0 |
|
BEARING; OUTPUT SHAFT |
2 |
1811- |
|
GXZ |
JTEKT |
| 091 |
I1-41349 025-0 |
|
SHIM; BRG,OUTPUT SHAFT |
AR |
1811- |
|
GXZ |
T=5.10 |
| 049 |
I1-41154 072-0 |
|
SHIM; FINAL PINION CAGE |
AR |
1811- |
|
GXZ |
(A) T=1.000 |
| 010 |
I1-09811 346-0 |
|
BEARING; INPUT SHAFT |
1 |
1811- |
|
GXZ |
(A) JTEKT |
| 365 |
I1-41381 008-1 |
|
PUMP ASM; OIL |
1 |
1811- |
|
GXZ |
|
| 372 |
I9-00097 517-0 |
|
BALL; CASE |
1 |
1811- |
|
GXZ |
|
| 225 |
I1-41552 034-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.9 |
| 020 |
I1-41562 117-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=3.3 |
| 017 |
I1-09070 018-0 |
|
BOLT; DIFF CAGE SETTING |
16 |
1811- |
|
GXZ |
(C) M16X113 |
| 020 |
I1-41562 116-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
1811- |
|
GXZ |
T=3.2 |
| 225 |
I1-41552 028-2 |
|
WASHER; THRUST |
AR |
1811- |
|
GXZ |
T=6.3 |
| 088 |
I1-41124 006-0 |
|
PLATE; LK,ADJ NUT |
4 |
1811- |
|
GXZ |
(A) T=3.2 |
