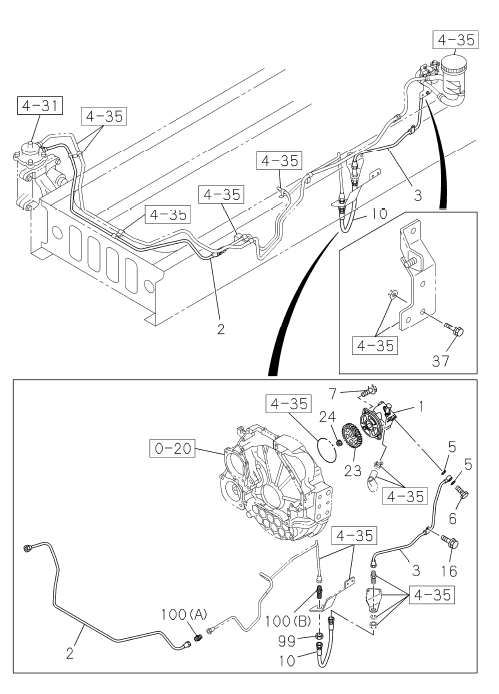

4-36 | POWER STEERING CONTROL; ENGINE SIDE
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 100 | I1-09654 167-1 | UNION; FLEX HOSE | 1 | 1811- | GXZ | (B) M20 & M22 STRAIGHT | ||
| 010 | I8-98308 531-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 1811- | GXZ | |||
| 007 | I0-28151 030-0 | BOLT; OIL PUMP,P/S | 2 | 1811- | GXZ | M10X30 FLANGE | ||
| 006 | I1-09675 058-0 | BOLT; EYE,P/S PIPE | 1 | 1811- | GXZ | M18X33 | ||
| 037 | I0-28650 820-0 | BOLT; P/S PUMP | 2 | 1811- | GXZ | M8X20 FLANGE | ||
| 001 | I8-97488 597-0 | PUMP ASM; OIL,P/S | 1 | 1811- | GXZ | |||
| 016 | I0-28050 816-0 | BOLT; STAY,P/S OIL PUMP | 1 | 1811- | GXZ | M8X16 FLANGE | ||
| 003 | I8-98399 889-0 | PIPE; OIL,CHARGE,P/S | 1 | 1811- | GXZ | |||
| 002 | I8-98308 529-0 | PIPE ASM; OIL,SUCTION | 1 | 1811- | GXZ | |||
| 023 | I8-98199 319-0 | GEAR; OIL PUMP | 1 | 1811- | GXZ | Z=37 | ||
| 005 | I1-09630 087-0 | GASKET; EYE BOLT,POWER STRG PIPE | 2 | 1811- | GXZ | ID=18.2 OD=24.4 | ||
| 100 | I0-92123 012-0 | UNION; FLEX HOSE | 1 | 1811- | GXZ | (A) M20 STRAIGHT | ||
| 024 | I0-91180 216-0 | NUT; GEAR,P/S PUMP | 1 | 1811- | GXZ | M16 FLANGE | ||
| 099 | I0-91111 522-0 | NUT; BRKT,FLEX HOSE,P/S | 1 | 1811- | GXZ | M22 |
