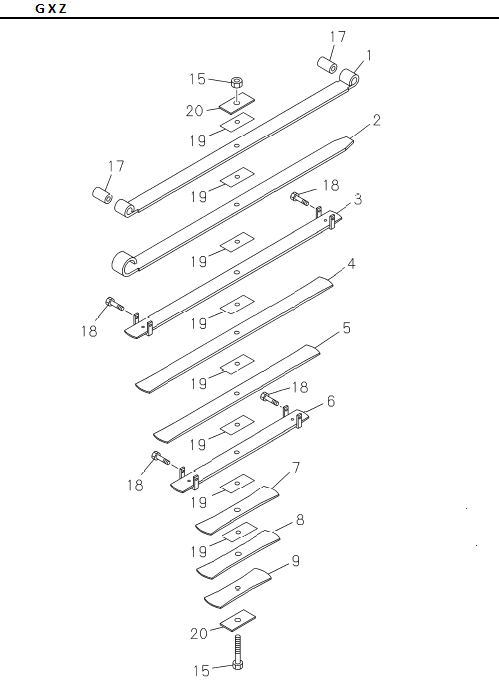

4-55 | FRONT LEAF SPRING

Partial Engine

GIGA

NEW GIGA GXZ

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
018 I7-10095 200-A BOLT; CLIP,LEAF SPR,FRT AR 1811- GXZ
002 I7-65000 355-A SPRING; LEAF,NO 2,FRT 2 1811- GXZ
007 I7-65000 360-A SPRING; LEAF,NO 7,FRT 2 1811- GXZ
019 I7-08006 160-A SPACER; LEAF SPRING,FRT AR 1811- GXZ
005 I7-65000 358-A SPRING; LEAF,NO 5,FRT 2 1811- GXZ
020 I7-07515 016-A SEAT; LEAF SPR,FRT AR 1811- GXZ
008 I7-65000 361-A SPRING; LEAF,NO 8,FRT 2 1811- GXZ
001 I7-65000 354-A SPRING; LEAF,NO 1,FRT 2 1811- GXZ W/ BUSH
003 I7-65000 356-A SPRING; LEAF,NO 3,FRT 2 1811- GXZ
017 I7-32387 800-A BUSHING; LEAF SPR,FRT 4 1811- GXZ
009 I7-65000 362-A SPRING; LEAF,NO 9,FRT 2 1811- GXZ
006 I7-65000 359-A SPRING; LEAF,NO 6,FRT 2 1811- GXZ
015 I7-51351 517-A BOLT; CENTER,LEAF SPR,FRT 2 1811- GXZ
004 I7-65000 357-A SPRING; LEAF,NO 4,FRT 2 1811- GXZ
025 I7-10120 830-A PIPE; CLIP,LEAF SPR,FRT AR 1811- GXZ
