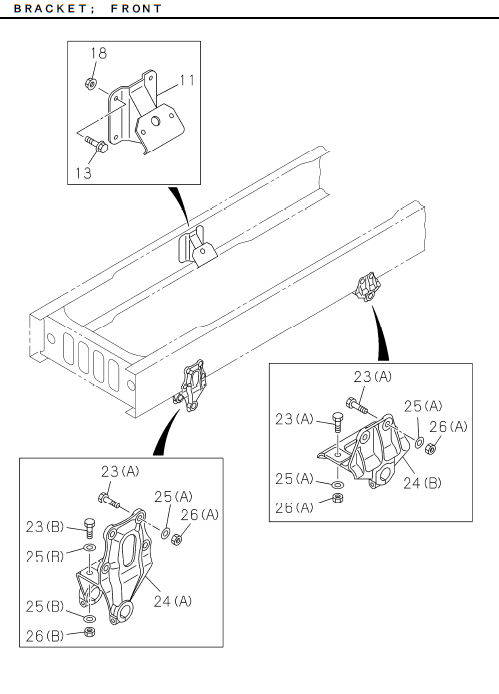

5-01 | FRAME AND OTHER PARTS
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 024 | I8-98315 672-0 | BRACKET; FRT SPR,FRT | 2 | 1811-1902 | GXZ | (B) | ||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 1903- | GXZ | (B) | ||
| 090 | I1-09503 162-0 | WASHER; PL | 40 | 1811- | GXZ | ID=19 | ||
| 096 | I8-98313 256-A | PAD; RR SPR | 2 | 1811- | GXZ | |||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 1811- | GXZ | (B) ID=16.2 | ||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 1811- | GXZ | (A) | ||
| 450 | I8-98313 245-0 | BRACKET; V ROD | 2 | 1811- | GXZ | |||
| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 1811- | GXZ | (A) | ||
| 201 | I8-98316 485-4 | GUSSET; C/MBR | 2 | 1811- | GXZ | |||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 16 | 1811- | GXZ | M14X40 FLANGE | ||
| 148 | I8-98316 467-0 | SPACER; C/MBR | 1 | 1811- | GXZ | |||
| 034 | I8-98369 330-1 | MEMBER; CROSS,3RD | 1 | 1811- | GXZ | |||
| 453 | I0-91112 818-0 | NUT; V ROD | 20 | 1811- | GXZ | M18 | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 32 | 1811- | GXZ | (A) M16 | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 12 | 1811- | GXZ | (A) M14X35 FLANGE | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 24 | 1811- | GXZ | (B) M14 FLANGE | ||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 1811- | GXZ | (B) M16X50 | ||
| 296 | I0-28851 445-0 | BOLT; 3RD C/MBR | 16 | 1811- | GXZ | M14X45 FLANGE | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 1811- | GXZ | (B) M16 | ||
| 131 | I8-98339 366-0 | BOLT; END C/MBR | 12 | 1811-1812 | GXZ | (B) M14X45 FLANGE | ||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 1811- | GXZ | |||
| 002 | I8-98294 475-0 | MEMBER; CROSS,1ST | 1 | 1811- | GXZ | |||
| 265 | I0-91180 214-0 | NUT; FRT C/MBR | 16 | 1811- | GXZ | M14 FLANGE | ||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 32 | 1811- | GXZ | (C) M16X50 FLANGE | ||
| 131 | I1-09044 090-1 | BOLT; END C/MBR | 12 | 1901- | GXZ | (B) M16X45 FLANGE | ||
| 452 | I8-98345 486-0 | BOLT; V ROD | 20 | 1811- | GXZ | |||
| 079 | I8-97528 156-0 | MEMBER; CROSS,TRUNNION ASM | 1 | 1901- | GXZ | |||
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 1811- | GXZ | M12X35 FLANGE | ||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 1811- | GXZ | M12 FLANGE | ||
| 086 | I8-98294 481-1 | MEMBER; CROSS,RR SUSP RR | 1 | 1811- | GXZ | |||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 1811- | GXZ | (A) M14X45 | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 1811- | GXZ | (A) ID=15 | ||
| 026 | I7-05014 012-A | NUT; BRKT,SPR | 16 | 1811- | GXZ | (A) M14 | ||
| 079 | I8-98316 462-2 | MEMBER; CROSS,TRUNNION ASM | 1 | 1811-1812 | GXZ |
