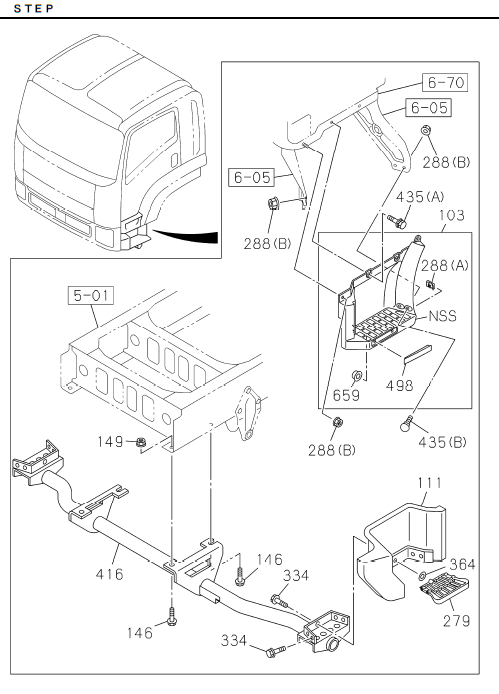

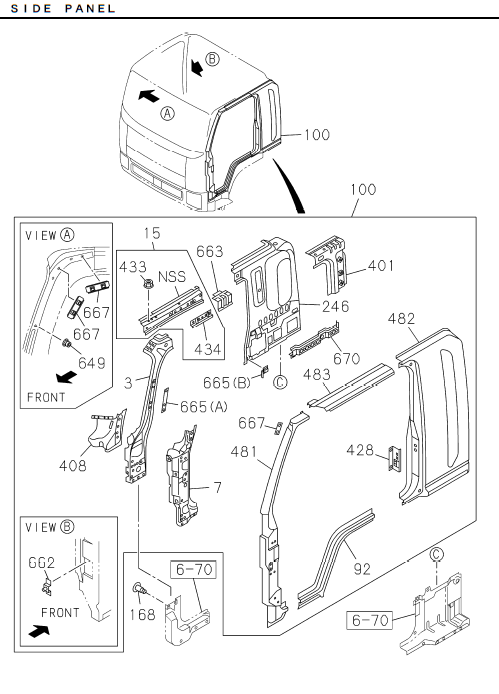

6-20 | SIDE PANEL AND STEP
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 435 | I8-98059 720-0 | BOLT; RR STEP | 4 | 1811- | GXZ | (A) M8X24.5 W/LK&PL WASHER | ||
| 416 | I8-98272 299-1 | BRACKET; ASSIST STEP | 1 | 1811- | GXZ | |||
| 481 | I8-98055 471-0 | PANEL; SIDE FRT PILLAR | 1 | 1811- | GXZ | |||
| 428 | I8-97509 447-0 | REINFORCEMENT; DOOR STRIKER | 1 | 1811- | GXZ | |||
| 482 | I8-98055 469-1 | PANEL; SIDE RR PILLAR | 1 | 1811- | GXZ | |||
| 111 | I8-98368 267-0 | COVER; 1ST STEP | 1 | 1811- | GXZ | |||
| 408 | I8-97586 193-3 | GUSSET; PILLAR | 1 | 1811- | GXZ | |||
| 092 | I8-98055 462-1 | PANEL; SIDE SILL,CAB | 1 | 1811- | GXZ | |||
| 498 | I8-98092 734-0 | REFLECTOR | 1 | 1811- | GXZ | |||
| 246 | I8-97586 158-6 | PANEL; RR PILLAR,INNER | 1 | 1811- | GXZ | |||
| 015 | I8-97585 293-2 | PANEL; CANT RAIL SIDE | 1 | 1811- | GXZ | |||
| 103 | I8-98058 318-2 | PLATE; STEP | 1 | 1811- | GXZ | |||
| 279 | I8-98314 441-0 | BOARD; STEP 1ST | 2 | 1811- | GXZ | |||
| 498 | I8-98092 733-0 | REFLECTOR | 1 | 1811- | GXZ | |||
| 670 | I8-97509 331-0 | STIFFENER; PANEL,SIDE | 1 | 1811- | GXZ | |||
| 667 | I8-98109 948-0 | BRACKET; MIRROR | 1 | 1811- | GXZ | |||
| 481 | I8-98055 453-0 | PANEL; SIDE FRT PILLAR | 1 | 1811- | GXZ | |||
| 003 | I8-98058 237-1 | PANEL; CLOSING,FRT PILLAR | 1 | 1811- | GXZ | |||
| 663 | I8-97585 208-2 | BRACKET; AIR | 1 | 1811- | GXZ | |||
| 364 | I1-71998 153-0 | WASHER; LK | 10 | 1811- | GXZ | |||
| 149 | I0-91180 216-0 | NUT; STEP BRKT | 2 | 1811- | GXZ | M16 FLANGE | ||
| 103 | I8-98058 319-2 | PLATE; STEP | 1 | 1811- | GXZ | |||
| 111 | I8-98368 268-0 | COVER; 1ST STEP | 1 | 1811- | GXZ | |||
| 662 | I8-97584 611-1 | BRACKET; DUCT | 1 | 1811- | GXZ | |||
| 433 | I9-09114 086-0 | NUT; HEADER SHELF | 2 | 1811- | GXZ | M6 | ||
| 483 | I8-98055 458-0 | PANEL; SIDE CANTRAIL | 1 | 1811- | GXZ | |||
| 659 | I8-97811 510-0 | CLIP; SPRING NUT | 4 | 1811- | GXZ | |||
| 482 | I8-98055 468-1 | PANEL; SIDE RR PILLAR | 1 | 1811- | GXZ | |||
| 288 | I8-98040 792-0 | NUT; STEP | 2 | 1811- | GXZ | (A) M8 | ||
| 092 | I8-98055 461-1 | PANEL; SIDE SILL,CAB | 1 | 1811- | GXZ | |||
| 649 | I8-97249 574-0 | NUT; POP | 2 | 1811- | GXZ | M5 POP NUT | ||
| 434 | I8-98039 020-0 | PATCH; ASSIST GRIP | 1 | 1811- | GXZ | |||
| 665 | I8-97585 314-0 | REINFORCEMENT; GRIP, ASSIST | 1 | 1811- | GXZ | (A) | ||
| 003 | I8-98058 236-1 | PANEL; CLOSING,FRT PILLAR | 1 | 1811- | GXZ | |||
| 015 | I8-97585 292-2 | PANEL; CANT RAIL SIDE | 1 | 1811- | GXZ | |||
| 100 | I8-97498 661-0 | PANEL ASM; BODY SIDE | 1 | 1811- | GXZ | |||
| 007 | I8-97585 240-3 | REINFORCEMENT; HINGE | 1 | 1811- | GXZ | |||
| 246 | I8-97586 156-6 | PANEL; RR PILLAR,INNER | 1 | 1811- | GXZ | |||
| 168 | I0-38050 612-0 | BOLT; BODY SIDE PANEL | 8 | 1811- | GXZ | T25 M6X12 HEXALOBULAR SOCKET | ||
| 007 | I8-98377 771-0 | REINFORCEMENT; HINGE | 1 | 1811- | GXZ | |||
| 428 | I8-97509 448-0 | REINFORCEMENT; DOOR STRIKER | 1 | 1811- | GXZ | |||
| 483 | I8-98055 460-0 | PANEL; SIDE CANTRAIL | 1 | 1811- | GXZ | |||
| 288 | I0-91180 108-0 | NUT; STEP | 10 | 1811- | GXZ | (B) M8 FLANGE | ||
| 663 | I8-97585 207-2 | BRACKET; AIR | 1 | 1811- | GXZ | |||
| 435 | I8-98146 670-0 | BOLT; RR STEP | 8 | 1811- | GXZ | (B) M8X18 | ||
| 408 | I8-97586 194-2 | GUSSET; PILLAR | 1 | 1811- | GXZ | |||
| 434 | I8-98039 019-0 | PATCH; ASSIST GRIP | 1 | 1811- | GXZ | |||
| 665 | I8-98012 287-1 | REINFORCEMENT; GRIP, ASSIST | 1 | 1811- | GXZ | (B) | ||
| 401 | I8-97586 161-2 | PATCH; CLOSING,FRT PILLAR | 1 | 1811- | GXZ | |||
| 100 | I8-97498 671-0 | PANEL ASM; BODY SIDE | 1 | 1811- | GXZ | |||
| 146 | I0-29261 650-0 | BOLT; STEP BRKT | 4 | 1811- | GXZ | M16X50 FLANGE | ||
| 401 | I8-97586 160-2 | PATCH; CLOSING,FRT PILLAR | 1 | 1811- | GXZ | |||
| 334 | I0-28050 816-0 | BOLT; COVER | 10 | 1811- | GXZ | M8X16 FLANGE |
