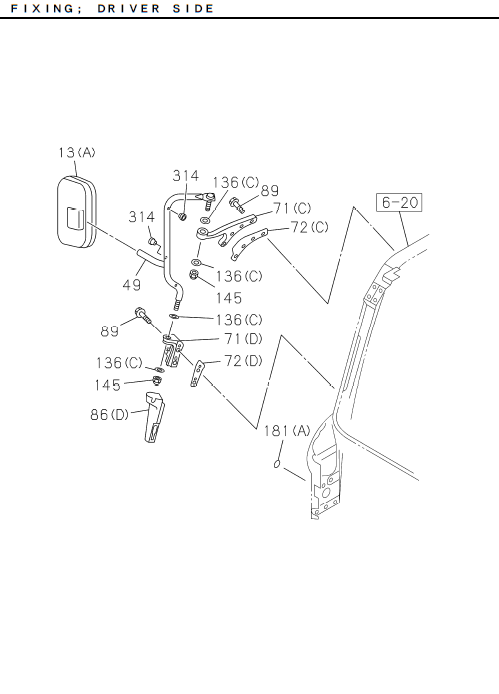

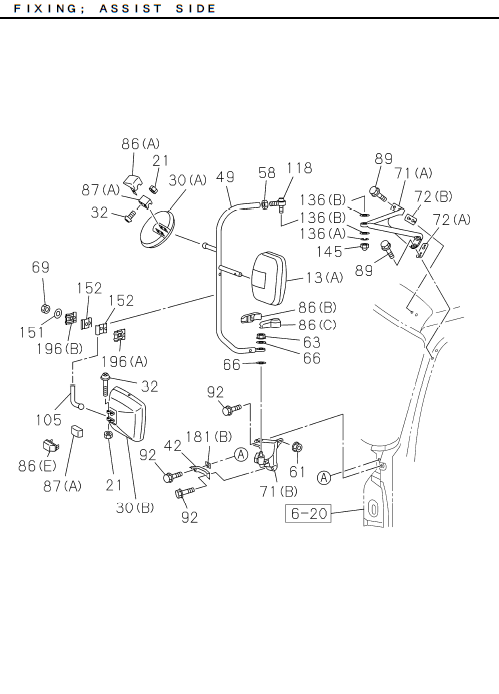

7-20 | MIRROR AND MIRROR STAY
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 013 | I8-98104 068-A | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1811- | GXZ | |||
| 042 | I8-98070 643-0 | ATTACHMENT; OUTSIDE MIRROR | 1 | 1811- | GXZ | |||
| 105 | I8-97948 106-0 | STAY; SUB UNDER MIRROR | 1 | 1811- | GXZ | |||
| 314 | I8-97948 097-0 | BUFFER; STOPPER | 2 | 1811- | GXZ | |||
| 152 | I1-71798 445-1 | SHEET; MIRROR STAY | 2 | 1811- | GXZ | |||
| 118 | I8-97516 042-0 | JOINT ASM; BALL | 1 | 1811- | GXZ | |||
| 013 | I6-98104 068-0 | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1811- | GXZ | (IADG) | ||
| 071 | I8-98040 022-1 | BRACKET; OUTSIDE MIRROR | 1 | 1811- | GXZ | (A) | ||
| 072 | I8-97948 071-0 | SHEET | 1 | 1811- | GXZ | (C) | ||
| 136 | I1-09985 345-0 | WASHER; LK,BRKT,MIRROR STAY | 1 | 1811- | GXZ | (A) ID=10 | ||
| 018 | I8-97408 241-0 | CLIP; MIRROR | 1 | 1811- | GXZ | |||
| 145 | I1-09984 134-0 | NUT; CAP,SUB STAY | 3 | 1811- | GXZ | M10 CAP NUT | ||
| 181 | I8-97856 616-0 | SEAL; BRKT | 1 | 1811- | GXZ | (B) 25X25 | ||
| 071 | I8-98040 543-1 | BRACKET; OUTSIDE MIRROR | 1 | 1811- | GXZ | (D) | ||
| 072 | I8-97948 074-0 | SHEET | 1 | 1811- | GXZ | (D) | ||
| 092 | I8-97948 261-0 | BOLT; STAY BRKT,MIRROR | 4 | 1811- | GXZ | M8X16 FLANGE | ||
| 086 | I8-97948 091-0 | COVER; STAY,OUTSIDE MIRROR | 1 | 1811- | GXZ | (E) | ||
| 030 | I8-97948 087-0 | MIRROR; UNDER | 1 | 1811- | GXZ | (A) | ||
| 072 | I8-97948 072-0 | SHEET | 1 | 1811- | GXZ | (A) | ||
| 032 | I1-71737 797-0 | SCREW; UNDER MIRROR | 2 | 1811- | GXZ | M5X40 W/PL WASHER | ||
| 066 | I8-98201 756-0 | WASHER; PL | 1 | 1811- | GXZ | UPPER ID=14.5 OD=27 T=1.5 | ||
| 086 | I8-98040 545-1 | COVER; STAY,OUTSIDE MIRROR | 1 | 1811- | GXZ | (B) | ||
| 071 | I8-98201 957-A | BRACKET; OUTSIDE MIRROR | 1 | 1811- | GXZ | (B) | ||
| 196 | I1-71798 442-2 | HOLDER; STAY | 1 | 1811- | GXZ | (A) | ||
| 002 | I8-98033 674-0 | SCREW; MIRROR TO BODY | 2 | 1811- | GXZ | M6X26 | ||
| 049 | I8-97695 051-A | STAY; MIRROR SIDE | 1 | 1811- | GXZ | |||
| 049 | I8-97948 104-1 | STAY; MIRROR SIDE | 1 | 1811- | GXZ | |||
| 013 | I8-98028 332-A | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1811- | GXZ | |||
| 086 | I8-98040 541-1 | COVER; STAY,OUTSIDE MIRROR | 1 | 1811- | GXZ | (D) | ||
| 136 | I1-09985 184-0 | WASHER; LK,BRKT,MIRROR STAY | 2 | 1811- | GXZ | (B) ID=10.5 OD=26 T=2.6 | ||
| 072 | I8-97948 073-0 | SHEET | 1 | 1811- | GXZ | (B) | ||
| 063 | I8-98174 339-0 | NUT; STAY | 1 | 1811- | GXZ | M14 TOUGH LOCK NUT W/FLANGE | ||
| 069 | I1-09984 134-0 | NUT; CAP | 1 | 1811- | GXZ | M10 CAP NUT | ||
| 136 | I1-09985 204-0 | WASHER; LK,BRKT,MIRROR STAY | 4 | 1811- | GXZ | (C) ID=10.5 OD=26 T=2.6 | ||
| 061 | I0-91180 108-0 | NUT; STAY,OUTSIDE MIRROR | 1 | 1811- | GXZ | M8 FLANGE | ||
| 181 | I1-76798 029-0 | SEAL; BRKT | 1 | 1811- | GXZ | (A) OD=25 BLACK | ||
| 086 | I8-98040 546-1 | COVER; STAY,OUTSIDE MIRROR | 1 | 1811- | GXZ | (C) | ||

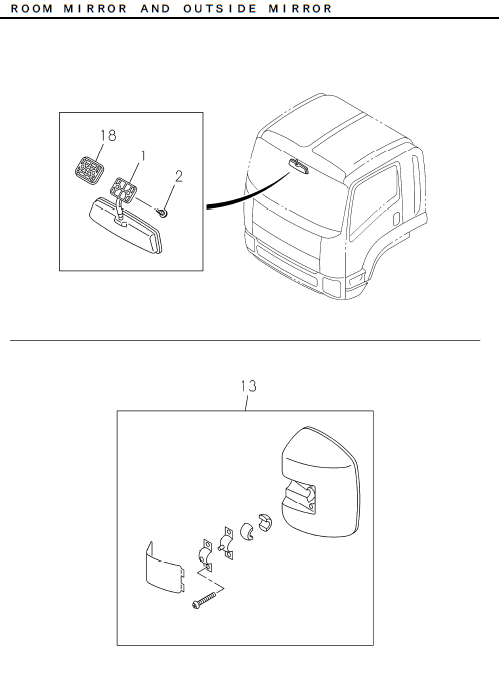

| 001 | I8-97924 058-2 | MIRROR; ROOM | 1 | 1811- | GXZ | |||
| 030 | I8-97948 090-0 | MIRROR; UNDER | 1 | 1811- | GXZ | (B) | ||
| 151 | I1-09985 183-0 | WASHER; PL,MIRROR | 1 | 1811- | GXZ | ID=10.5 T=2.0 | ||
| 021 | I0-91110 505-0 | NUT; MIRROR | 2 | 1811- | GXZ | M5 | ||
| 196 | I1-71798 444-2 | HOLDER; STAY | 1 | 1811- | GXZ | (B) | ||
| 089 | I8-98067 249-2 | SCREW; BRKT,OUTSIDE MIRROR | 10 | 1811- | GXZ | BOLT M8X26 W/PL WASHER | ||
| 066 | I0-91610 614-0 | WASHER; PL | 1 | 1811- | GXZ | LOWER ID=15 OD=30 T=2.6 | ||
| 086 | I8-97948 088-0 | COVER; STAY,OUTSIDE MIRROR | 1 | 1811- | GXZ | (A) | ||
| 087 | I8-97948 089-0 | SPACER | 1 | 1811- | GXZ | (A) | ||
| 058 | I8-97948 105-0 | NUT; MIRROR STAY | 1 | 1811- | GXZ | M12 | ||
| 071 | I8-98040 021-0 | BRACKET; OUTSIDE MIRROR | 1 | 1811- | GXZ | (C) | ||
| 013 | I6-98028 332-0 | MIRROR ASM; OUTSIDE RR VIEW | 1 | 1811- | GXZ | (IADG) |
