8-15 | FIXING PARTS; WIRING HARNESS
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

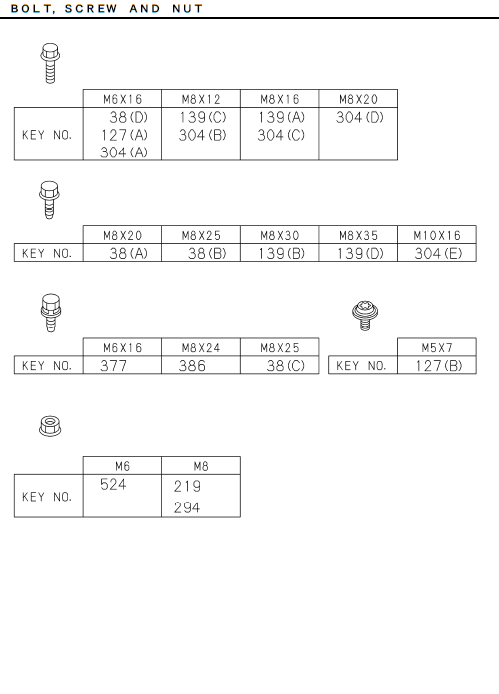

| 294 | I0-91180 108-0 | NUT | 2 | 1811- | GXZ | M8 FLANGE | ||

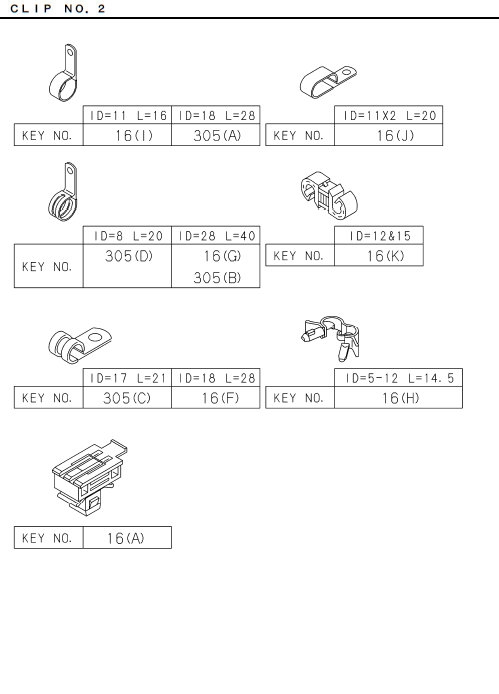

| 016 | I1-09701 067-0 | CLIP; HARNESS | 1 | 1811- | GXZ | (F) ID=18 L=28 | ||

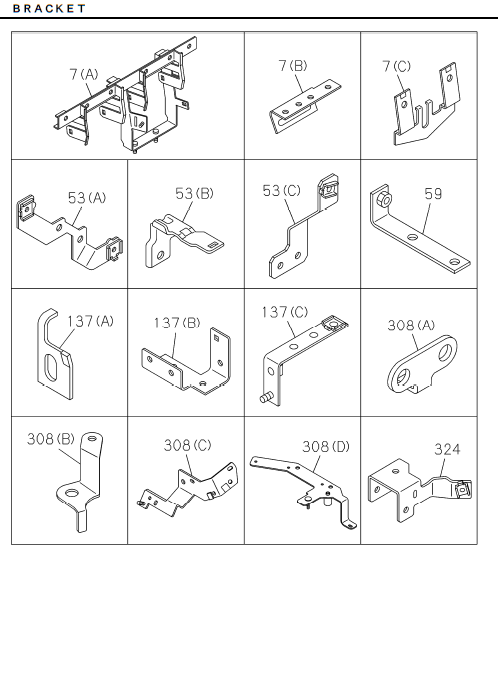

| 007 | I8-98315 522-0 | BRACKET; CONNECTOR | 1 | 1811- | GXZ | (B) | ||
| 219 | I0-91180 108-0 | NUT | 1 | 1811- | GXZ | M8 FLANGE | ||
| 308 | I8-98369 531-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1811- | GXZ | (B) | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 7 | 1811- | GXZ | M6 FLANGE | ||
| 016 | I0-95235 025-0 | CLIP; HARNESS | 2 | 1811- | GXZ | (I) ID=11 L=16 | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 1811- | GXZ | L=20 | ||
| 305 | I8-98082 035-0 | CLIP; ENG HARNESS | 1 | 1811- | GXZ | (C) ID=17 L=21 | ||
| 305 | I1-09700 995-1 | CLIP; ENG HARNESS | 2 | 1811- | GXZ | (B) ID=28 L=40 | ||
| 304 | I0-28050 820-0 | BOLT; ENG HARNESS CLIP | 1 | 1811- | GXZ | (D) M8X20 FLANGE | ||
| 139 | I0-28650 835-0 | BOLT; BRKT | 1 | 1811- | GXZ | (D) M8X35 FLANGE | ||
| 308 | I8-98275 661-1 | BRACKET; CLIP,ENG HARNESS | 1 | 1811- | GXZ | (C) | ||
| 059 | I1-82698 140-A | BRACKET; FRAME HARNESS | 1 | 1811- | GXZ | |||
| 038 | I0-28650 820-0 | BOLT; CLIP,HARNESS | 2 | 1811- | GXZ | (A) M8X20 FLANGE | ||
| 305 | I0-95235 856-0 | CLIP; ENG HARNESS | 1 | 1811- | GXZ | (A) ID=19 L=28 | ||
| 386 | I8-98141 256-1 | BOLT; GRAND HARNESS | 2 | 1811- | GXZ | M8X24 W/PL WASHER | ||
| 016 | I0-95325 035-0 | CLIP; HARNESS | 1 | 1811- | GXZ | (J) ID=11X2 L=20 | ||
| 137 | I8-98310 013-0 | BRACKET; HARNESS CLAMP | 1 | 1811- | GXZ | (C) | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 1811- | GXZ | OD=9 H=6 | ||
| 324 | I8-98377 689-0 | BRACKET; CLIP | 1 | 1811- | GXZ | |||
| 139 | I0-28050 812-A | BOLT; BRKT | 4 | 1811- | GXZ | (C) M8X12 FLANGE | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1811- | GXZ | OD=25 BLACK | ||
| 304 | I0-28050 616-0 | BOLT; ENG HARNESS CLIP | 1 | 1811- | GXZ | (A) M6X16 FLANGE | ||
| 137 | I8-98298 379-1 | BRACKET; HARNESS CLAMP | 1 | 1811- | GXZ | (B) | ||
| 016 | I8-94377 313-1 | CLIP; HARNESS | 1 | 1811- | GXZ | (A) | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 1811- | GXZ | M6X16 W/LK&PL WASHER | ||
| 016 | I1-09709 281-1 | CLIP; HARNESS | 1 | 1811- | GXZ | (K) ID=12 & 15 | ||
| 304 | I0-28050 812-A | BOLT; ENG HARNESS CLIP | 1 | 1811- | GXZ | (B) M8X12 FLANGE | ||
| 304 | I0-28050 816-0 | BOLT; ENG HARNESS CLIP | 5 | 1811- | GXZ | (C) M8X16 FLANGE | ||
| 305 | I8-97637 631-0 | CLIP; ENG HARNESS | 2 | 1811- | GXZ | (D) ID=8 L=20 | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 1811- | GXZ | (B) | ||
| 053 | I8-98315 231-0 | BRACKET; HARNESS | 1 | 1811- | GXZ | (A) | ||
| 137 | I8-98298 378-0 | BRACKET; HARNESS CLAMP | 1 | 1811- | GXZ | (A) | ||
| 127 | I0-28050 616-0 | SCREW; FACIA HARNESS CLIP | 1 | 1811- | GXZ | (A) M6X16 FLANGE | ||
| 139 | I0-28050 816-0 | BOLT; BRKT | 2 | 1811- | GXZ | (A) M8X16 FLANGE | ||
| 038 | I8-97086 823-0 | BOLT; CLIP,HARNESS | 1 | 1811- | GXZ | (D) M6X16 W/LK&PL WASHER | ||
| 038 | I8-97087 203-0 | BOLT; CLIP,HARNESS | 1 | 1811- | GXZ | (C) M8X25 W/LK&PL WASHER | ||
| 007 | I8-98315 521-1 | BRACKET; CONNECTOR | 1 | 1811- | GXZ | (A) | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 1811- | GXZ | (E) | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1811- | GXZ | (B) ID=10 & 16 | ||
| 402 | I1-82690 668-0 | COVER; CONN | 1 | 1811- | GXZ | |||
| 139 | I0-28650 830-0 | BOLT; BRKT | 1 | 1811- | GXZ | (B) M8X30 FLANGE | ||
| 324 | I8-98310 010-0 | BRACKET; CLIP | 1 | 1811- | GXZ | |||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 18 | 1811- | GXZ | (C) L=155 | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 6 | 1811- | GXZ | 180X40 | ||
| 016 | I1-09700 995-1 | CLIP; HARNESS | 2 | 1811- | GXZ | (G) ID=28 L=40 | ||
| 016 | I1-09987 221-0 | CLIP; HARNESS | 2 | 1811- | GXZ | (H) ID=5-12 L=14.5 | ||
| 016 | I8-97229 357-0 | CLIP; HARNESS | 2 | 1811- | GXZ | (D) L=40.6 | ||
| 053 | I8-98315 232-0 | BRACKET; HARNESS | 1 | 1811- | GXZ | (A) | ||
| 308 | I8-98275 662-2 | BRACKET; CLIP,ENG HARNESS | 1 | 1811- | GXZ | (D) | ||
| 038 | I0-28050 825-0 | BOLT; CLIP,HARNESS | 2 | 1811- | GXZ | (B) M8X25 FLANGE | ||
| 308 | I8-98329 011-0 | BRACKET; CLIP,ENG HARNESS | 1 | 1811- | GXZ | (A) | ||
| 304 | I0-28151 016-0 | BOLT; ENG HARNESS CLIP | 5 | 1811- | GXZ | (E) M10X16 FLANGE | ||

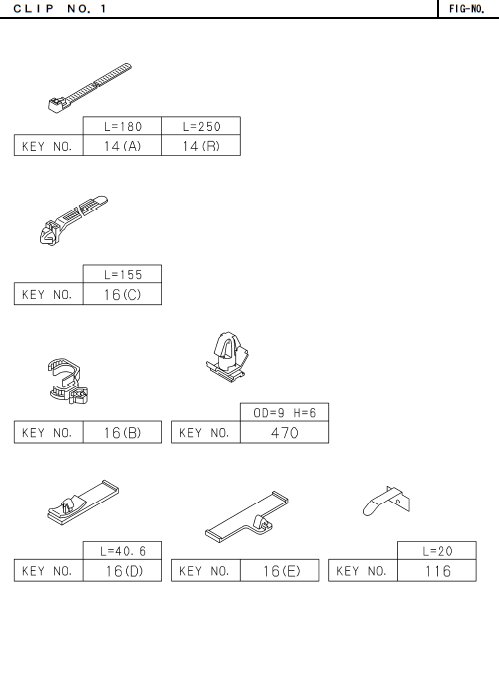

| 014 | I1-09707 162-1 | CLIP; BAND,HARNESS | 1 | 1811- | GXZ | (A) L=180 | ||
| 053 | I8-98326 423-0 | BRACKET; HARNESS | 1 | 1811- | GXZ | (C) | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 1811- | GXZ | (B) M5X7 HEXALOBULAR SOCKET | ||

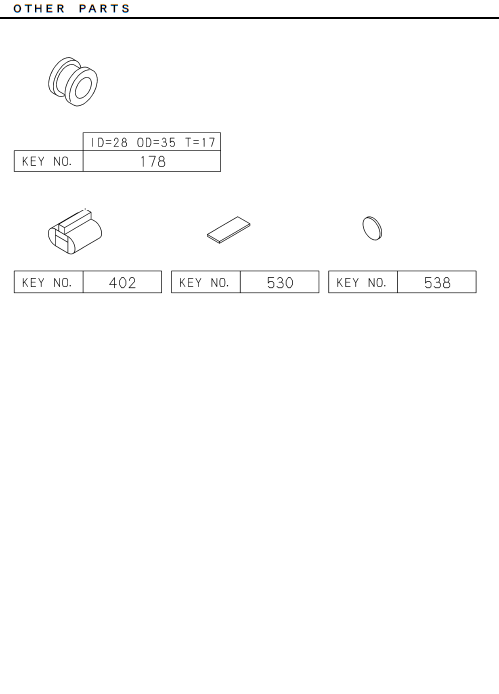

| 178 | I9-09956 256-2 | GROMMET; HARNESS | 2 | 1811- | GXZ | ID=28 OD=35 T=17 | ||
| 007 | I8-98315 523-2 | BRACKET; CONNECTOR | 1 | 1811- | GXZ | (C) | ||
| 014 | I8-98216 430-0 | CLIP; BAND,HARNESS | 5 | 1811- | GXZ | (B) L=250 |
